Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

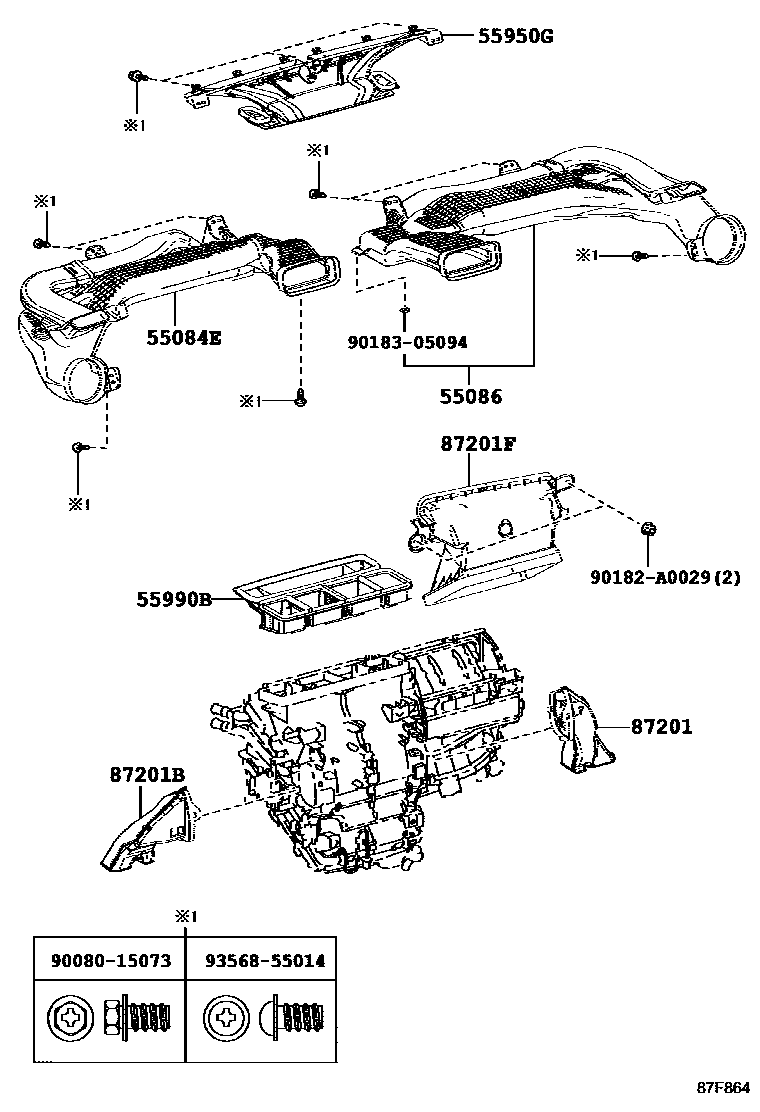

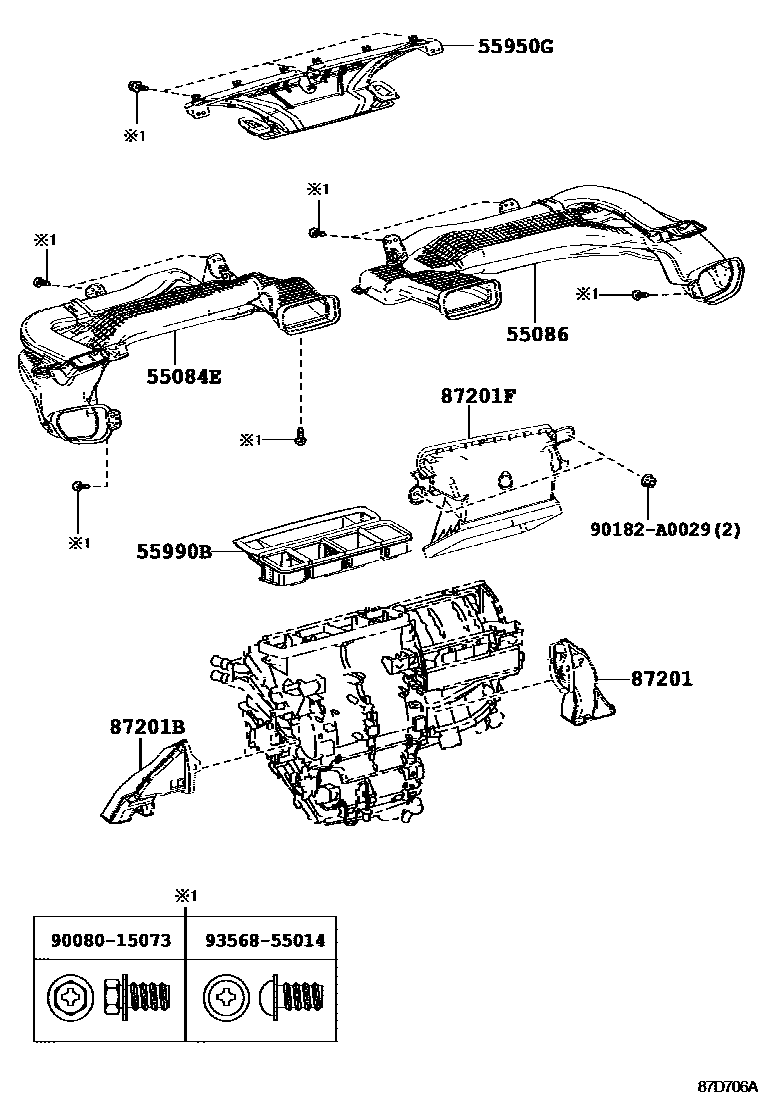

| 55084E | Heater to air regulator No. 1 air duct sub-assembly | 55084-02190 · 55084-02200 · 55084-02450 · 55084-02460 |
| 55086 | Heater to air regulator No. 3 air duct sub-assembly | 55086-02210 · 55086-02220 · 55086-02430 · 55086-02440 |

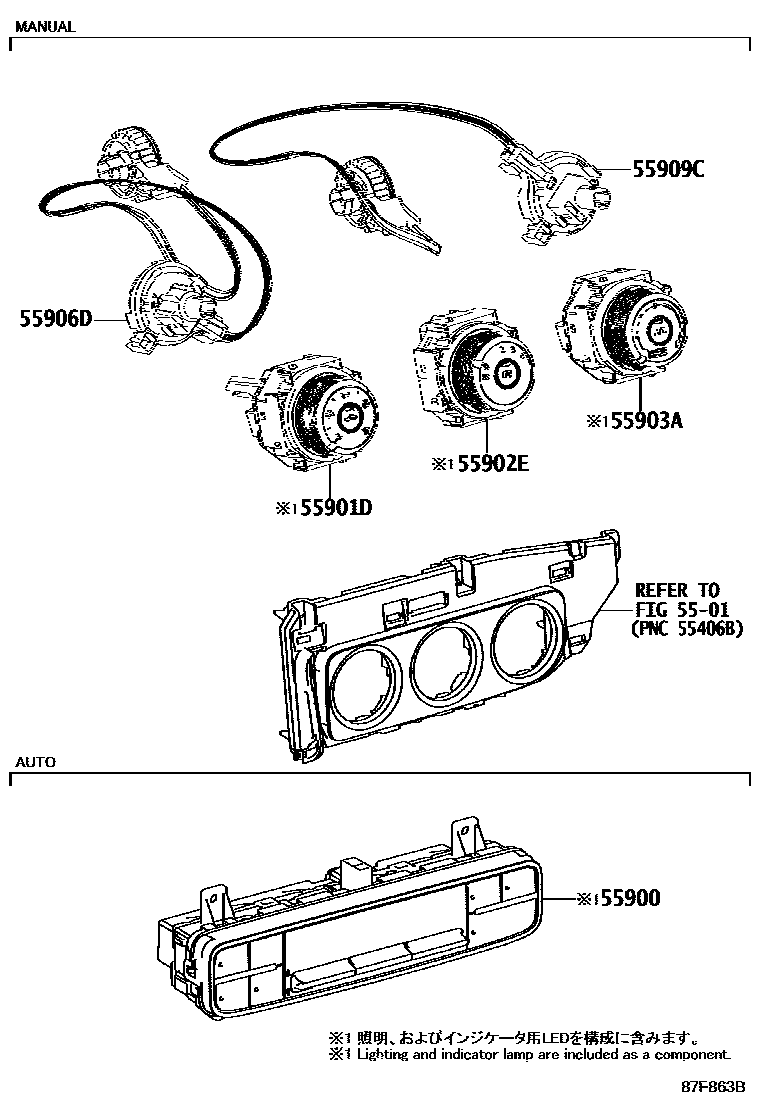

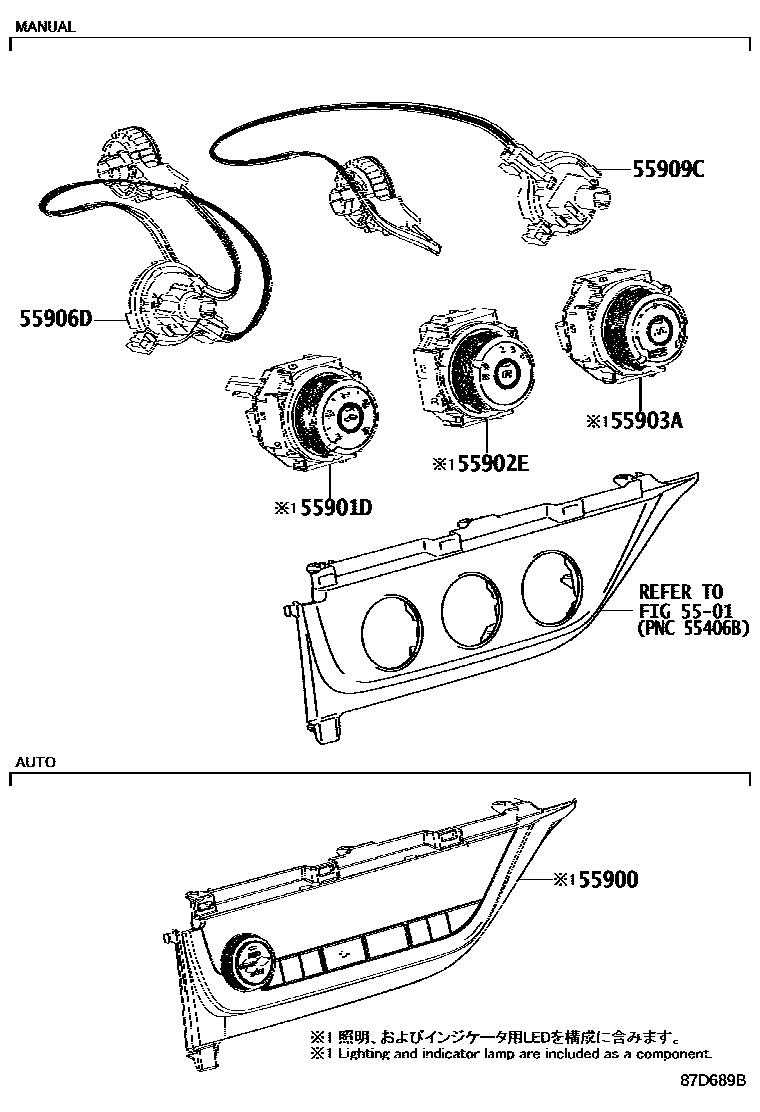

| 55900 | Air conditioning control assembly | 55900-02500 · 55900-02A30 |
| 55901D | No. 1 heater control sub-assembly | 55901-0R020 |
| 55902E | No. 2 heater control sub-assembly | 55902-0R040 · 55902-0R041 |
| 55903A | No. 3 heater control sub-assembly | 55903-02270 · 55903-02290 |
| 55906D | No. 2 heater control cable sub-assembly | 55906-0K010 · 55906-26060 |
| 55909C | Air mix damper control cable sub-assembly | 55909-0K010 · 55909-26080 |
| 55950G | Defroster nozzle assembly | 55950-02290 |
| 55990B | Lower defroster nozzle assembly | 55990-02170 |
| 87201 | No. 1 air duct sub-assembly | 87211-02330 |
| 87201B | No. 2 air duct sub-assembly | 87211-02321 |
| 87201F | No. 3 air duct sub-assembly | 87220-02200 |

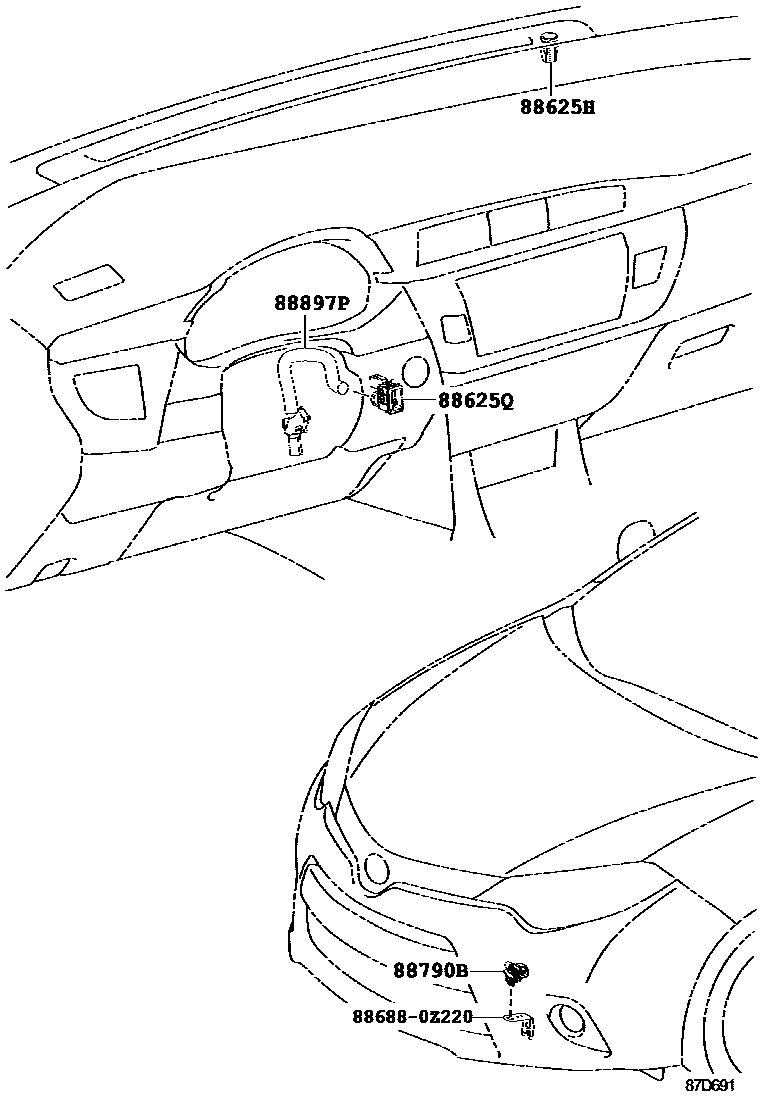

| 88625H | Cooler thermistor (sunlight sensor) | 88625-47031 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88790B | Thermistor assembly | 88790-06010 |
| 88897P | aspirator | 88505-02070 |
