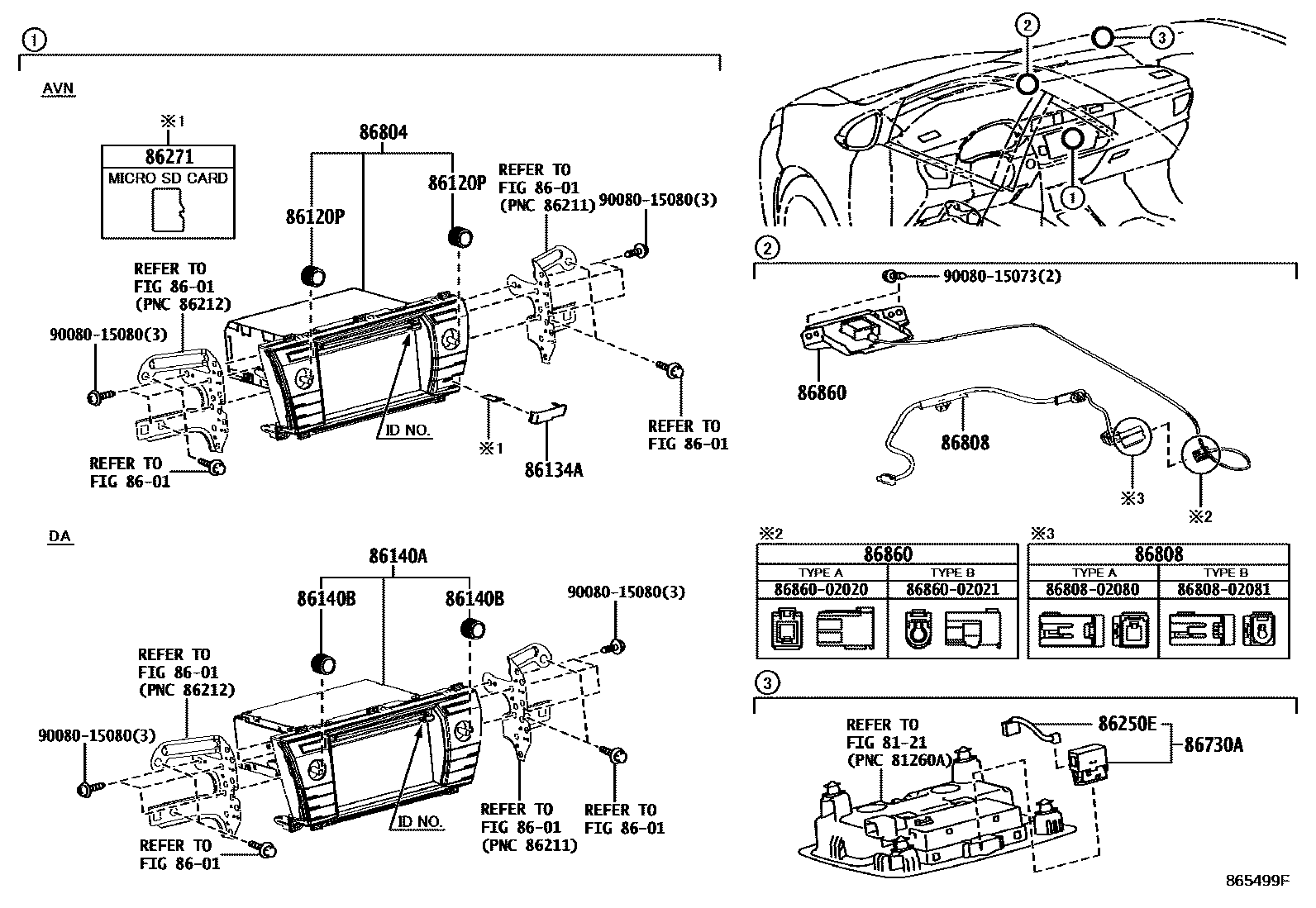

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120P | Navigation receiver switch button | 90011-23037 |
| 86134A | Multifunctional display components | 86134-02010 |
| 86140A | Radio and display receiver assembly | 86140-02050 · 86140-02470 · 86140-02520 · 86140-02521 · 86140-02530 |
| 86140B | Radio and display receiver switch button | 90011-23037 · 90011-23042 |
| 86250E | amplifier loudspeaker assembly | 86250-02040 · 86250-52030 |
| 86271 | CD | 86271-0E071 · 86271-0E180 · 86271-0E181 · 86271-0E182 · 86271-0E183 · 86271-0E184 · 86271-0E185 |
| 86730A | Telephone amplifier assembly | 86730-02030 · 86730-02040 · 86730-48100 · 86730-52020 |
| 86804 | Navigation ECU cover assembly | 86804-02020 · 86804-02070 · 86804-02100 · 86804-02101 |
| 86808 | No. 1 navigation antenna wire sub-assembly | 86808-02080 · 86808-02081 |
| 86860 | Navigation antenna assembly | 86860-02020 · 86860-02021 |
