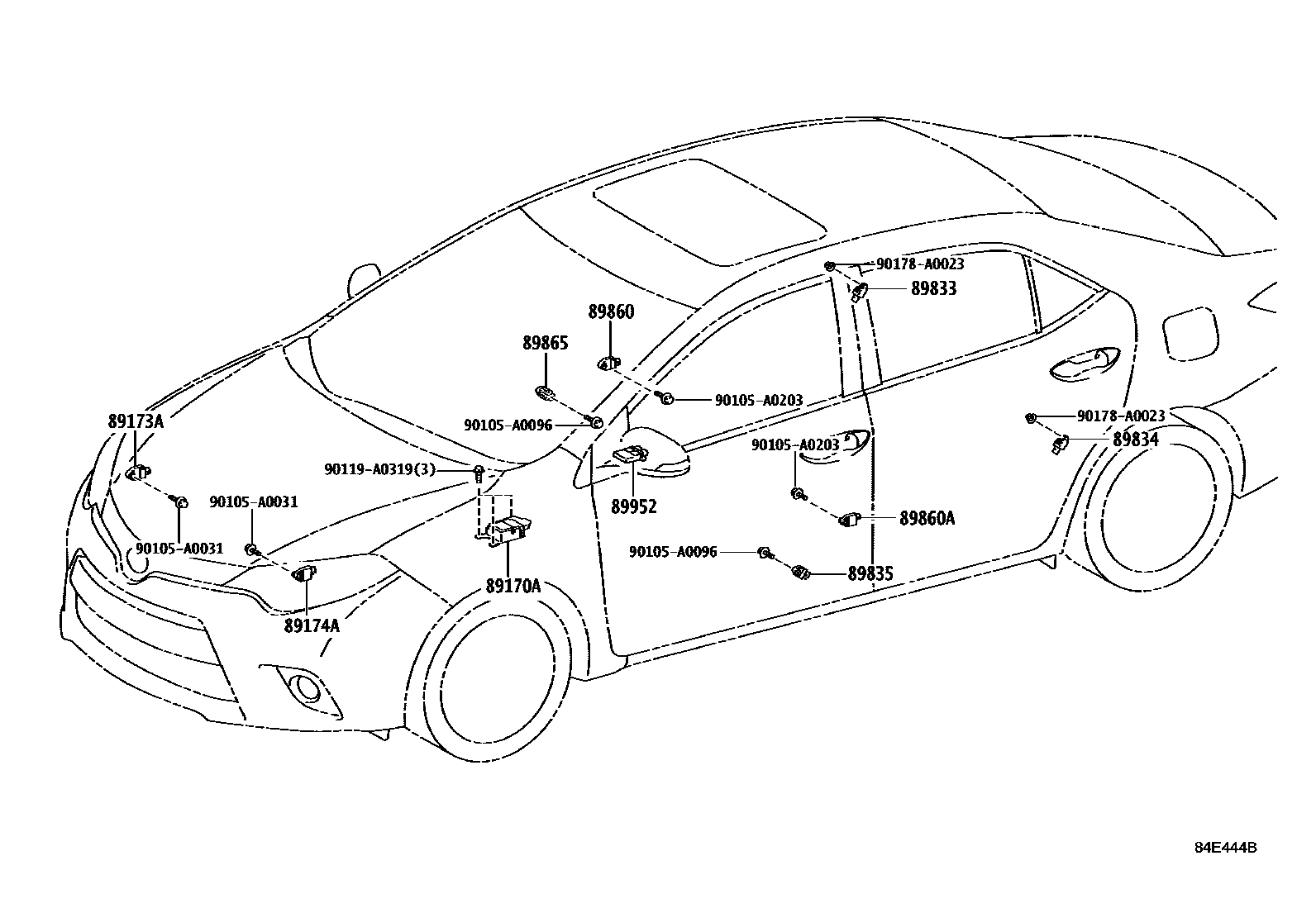

Toyota COROLLA 空气囊 — Figure 8421
Toyota COROLLA EPC diagram 8421, 空气囊, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-02C60 · 89170-02D30 · 89170-02D40 · 89170-02E40 · 89170-02E50 · 89170-02G60 · 89170-02J00 · 89170-02J10 · 89170-02J20 · 89170-02J30 · 89170-02N20 · 89170-02N30 · 89170-02N40 · 89170-02R30 |
| 89173A | Right front air bag sensor | 89173-09881 |
| 89174A | Left front air bag sensor | 89173-09881 |
| 89833 | Right rear air bag sensor | 89831-02210 |
| 89834 | Left rear air bag sensor | 89831-02210 |
| 89835 | Left door side air bag sensor | 89831-02200 |
| 89860 | Right side airbag sensor assembly | 89831-02190 |
| 89860A | Left side air bag sensor assembly | 89831-02190 |
| 89865 | Right door side air bag sensor | 89831-02200 |
| 89952 | Occupant detection ECU | 89952-06011 · 89952-0E011 |
