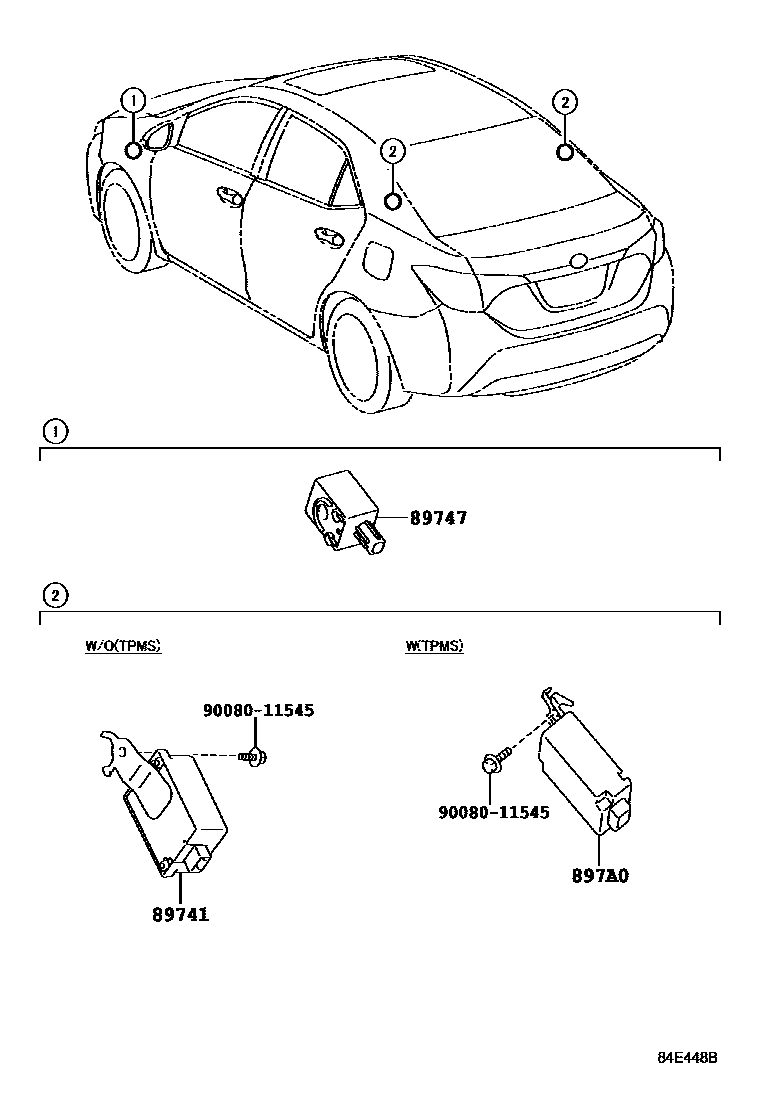

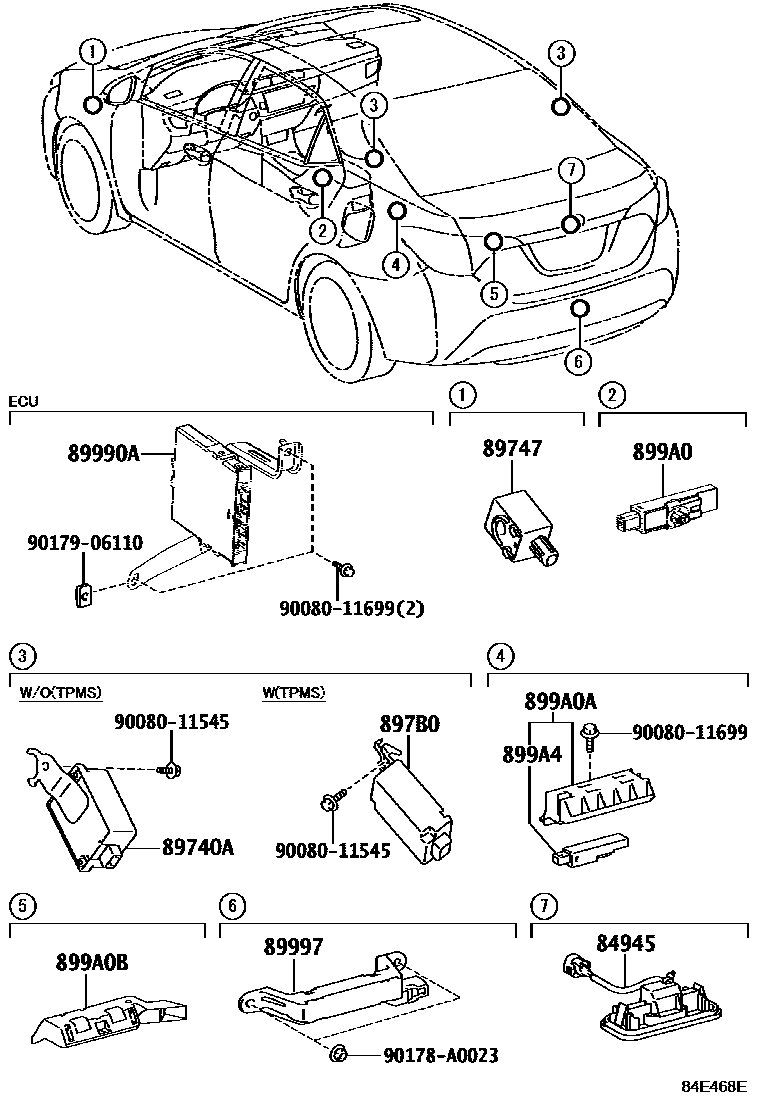

Toyota COROLLA 遥控门锁 — Figure 8420
Toyota COROLLA EPC diagram 8420, 遥控门锁, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84945 | Luggage electronic key switch | 84945-02020 · 84945-02050 · 84945-02060 |
| 89740A | Smart door control receiver assembly | 89740-02160 · 89740-12350 |
| 89741 | door control receiver | 89741-02280 · 89741-02290 |
| 89747 | Remote door lock buzzer | 89747-0R020 |
| 897A0 | Door control and tire pressure detection system receiver assembly | 897A0-02010 · 897A0-02011 |
| 897B0 | Electronic key and tire pressure detection system receiver assembly | 897B0-02010 |
| 89990A | Smart key ECU assembly | 89990-02230 · 89990-02231 |
| 89997 | electronic key antenna | 89997-02030 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-06030 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-02050 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-02060 |
| 899A4 | Car electronic key shell | 899A4-02040 |
