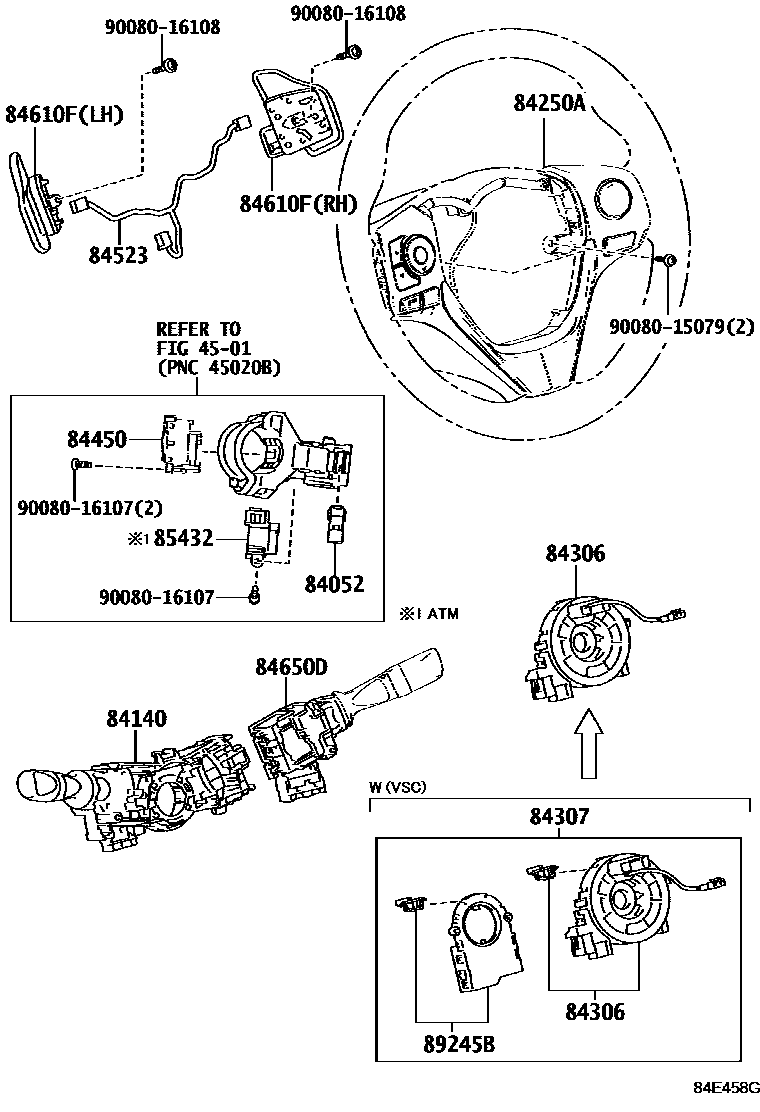

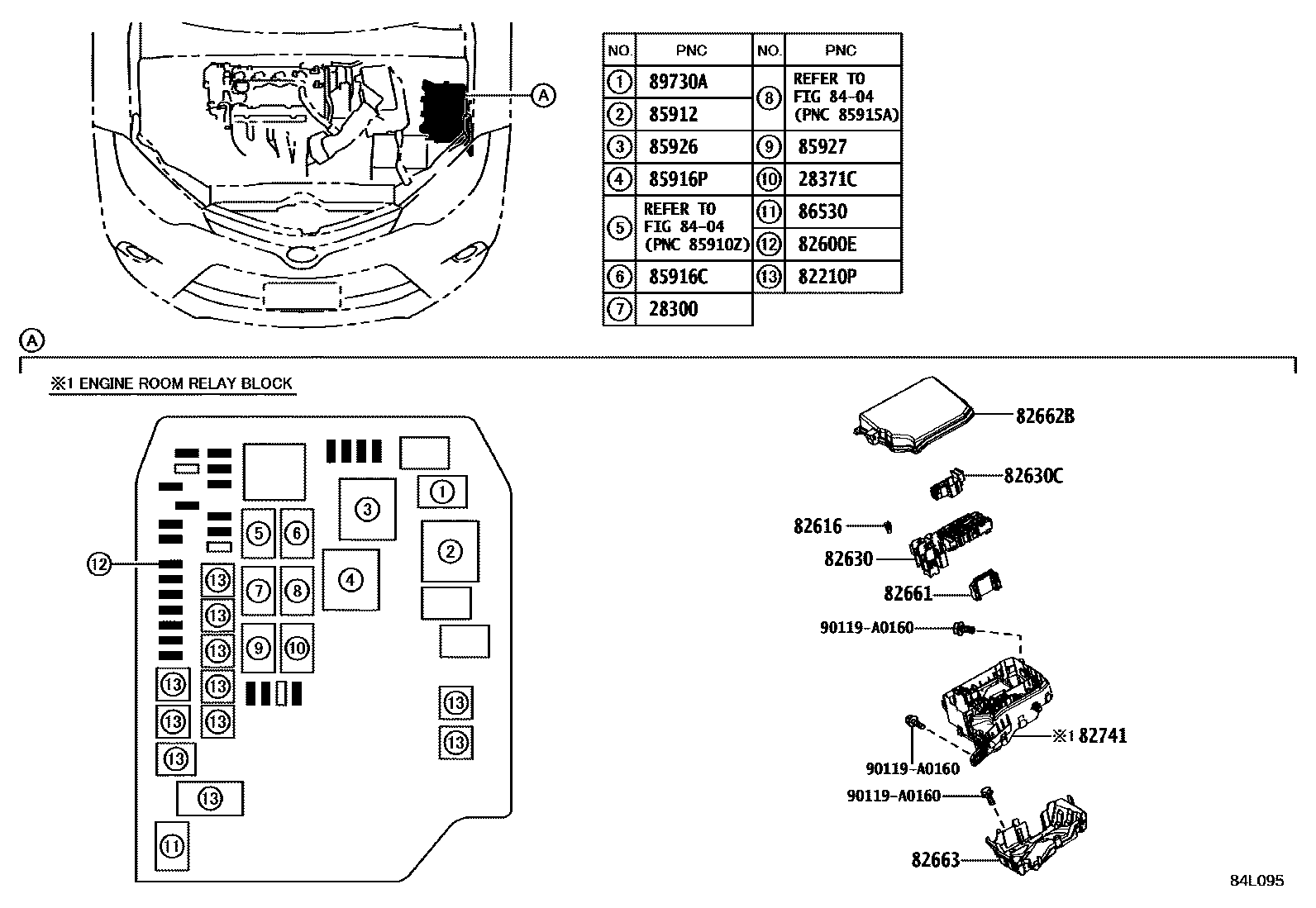

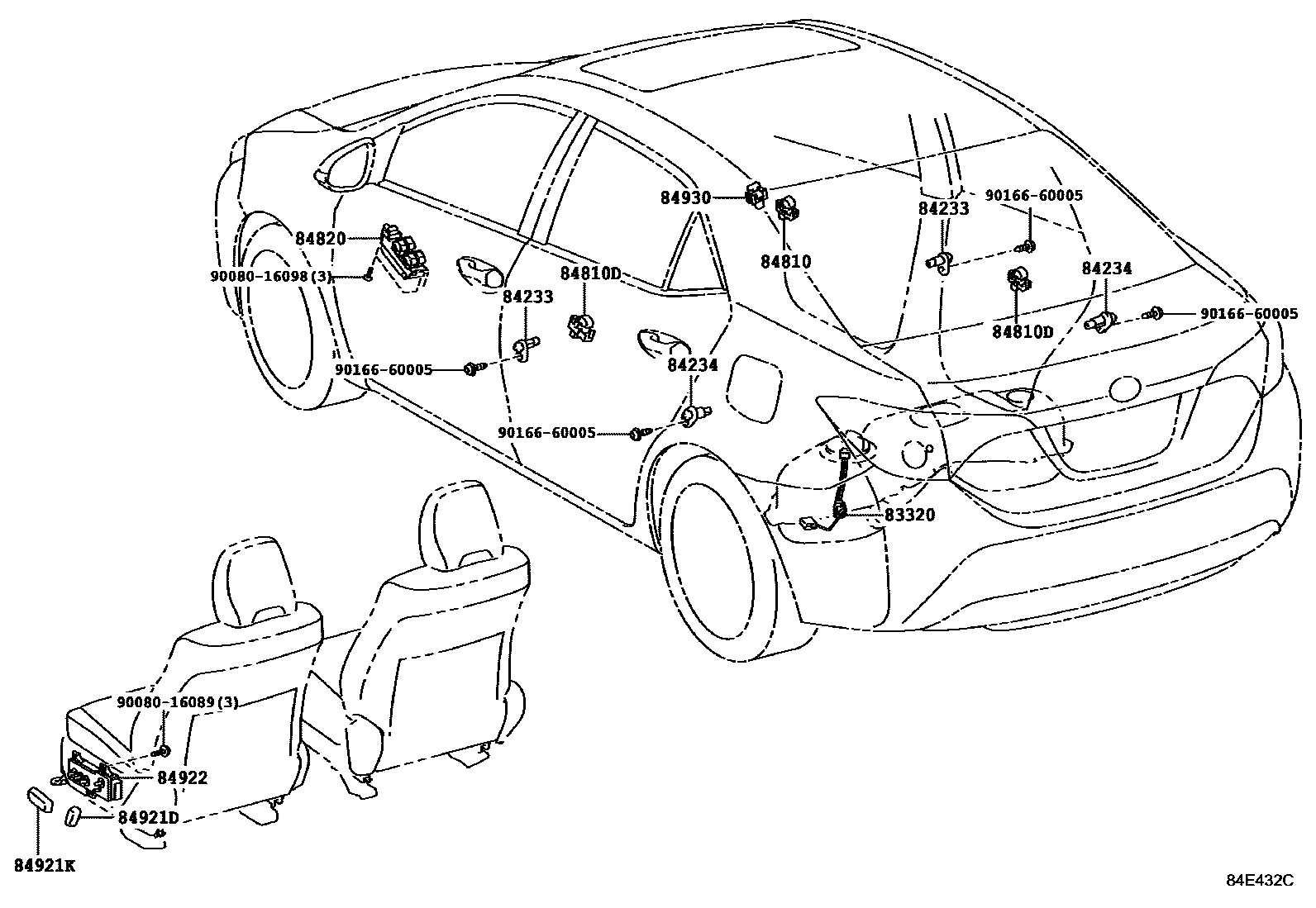

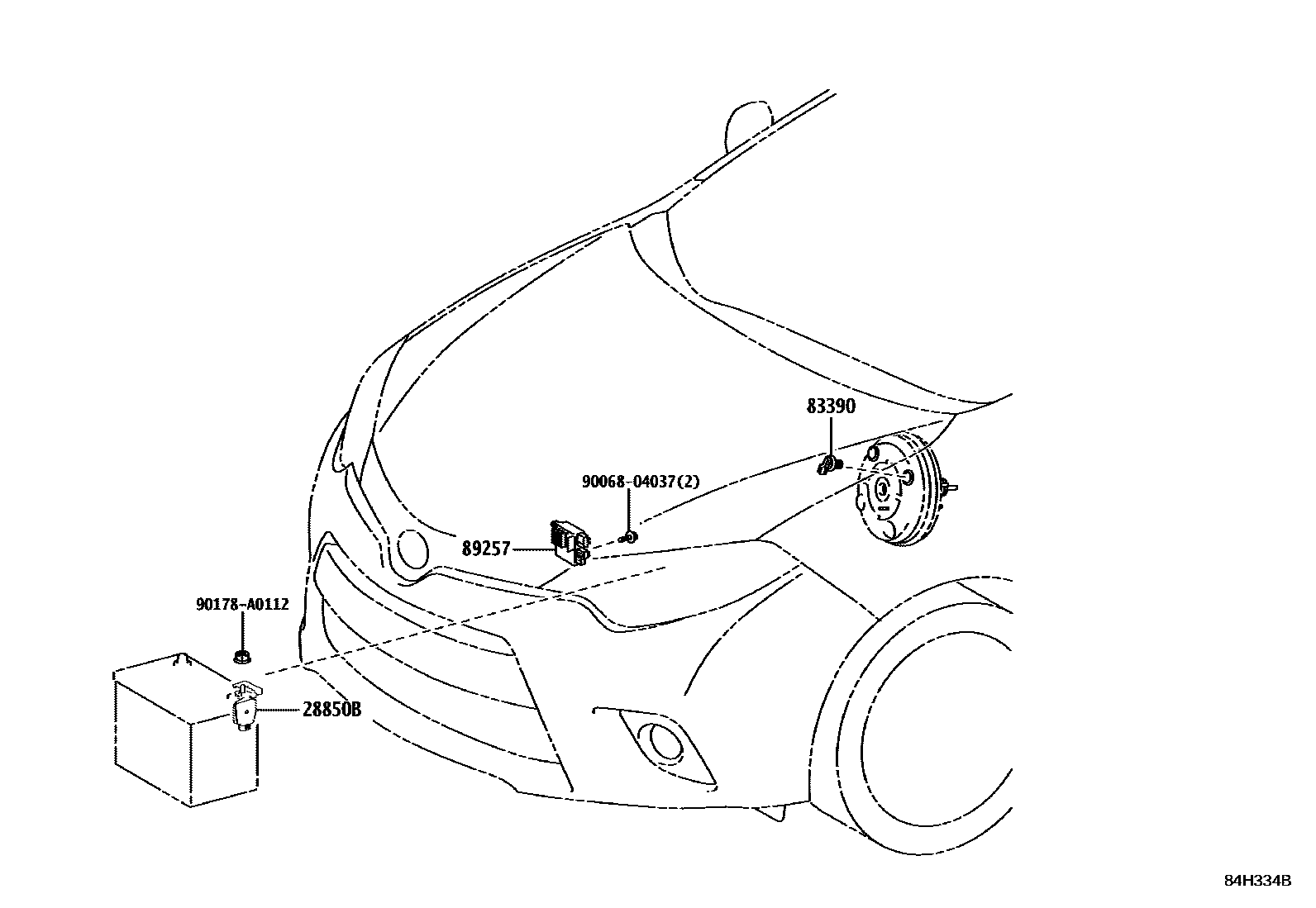

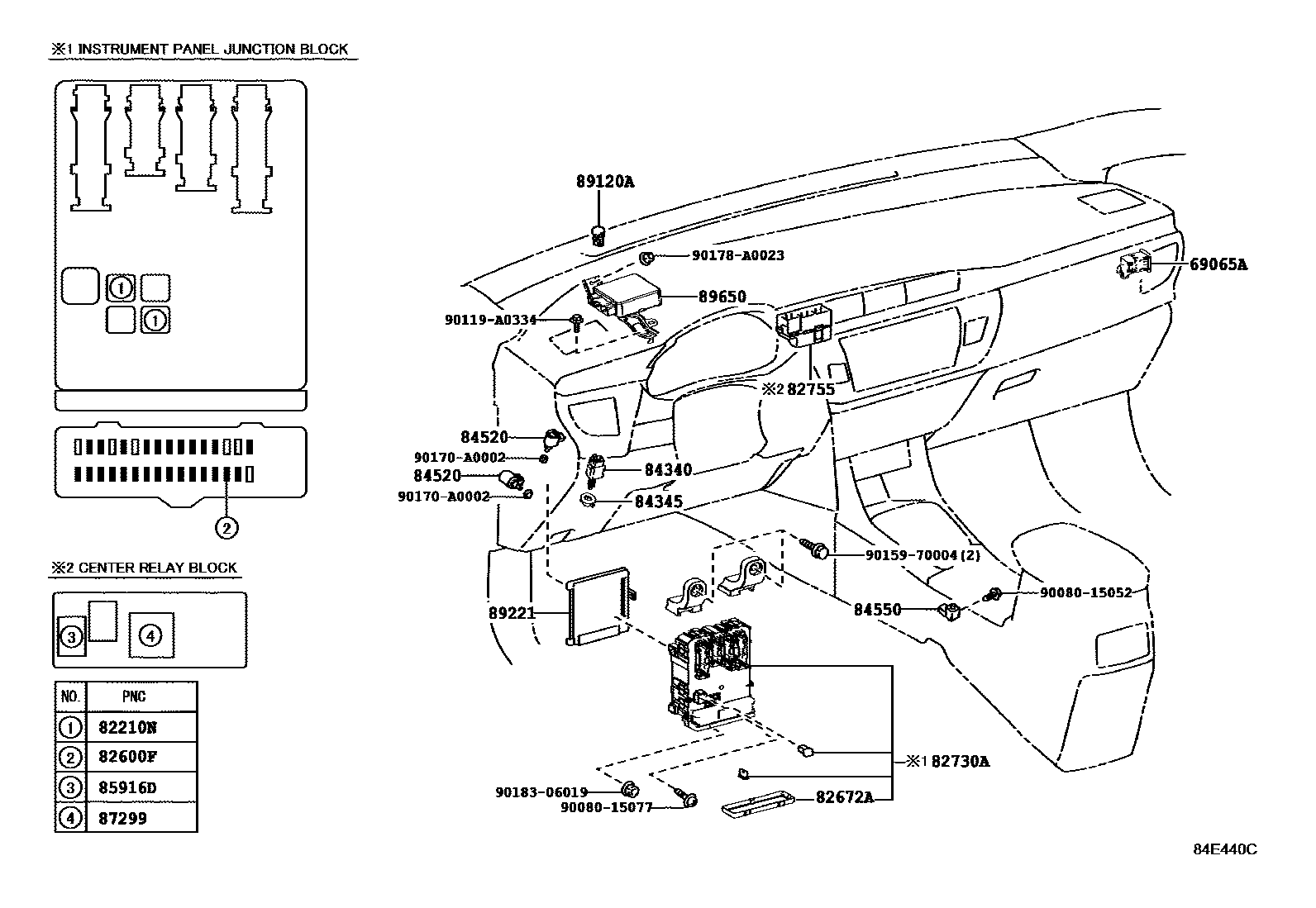

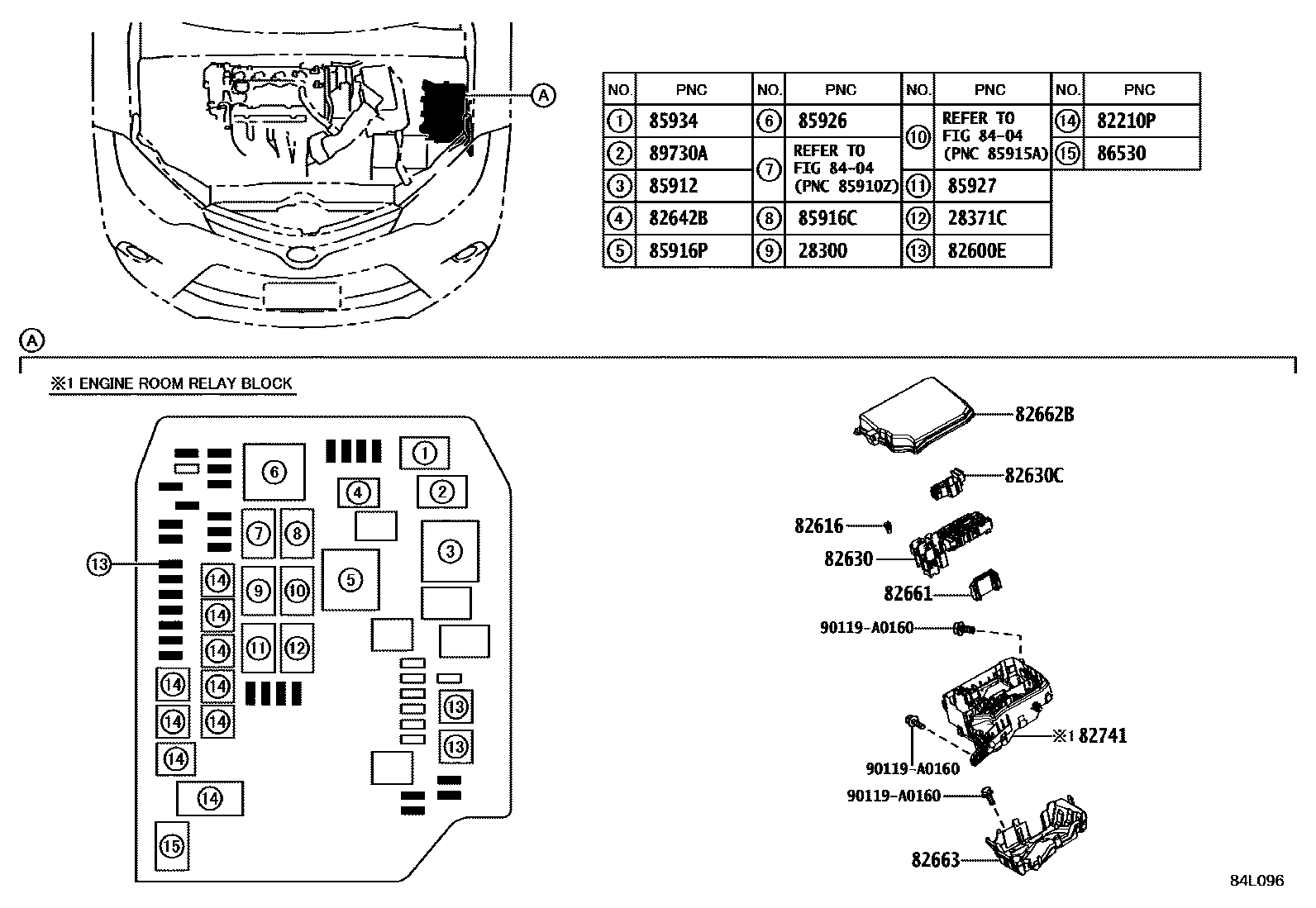

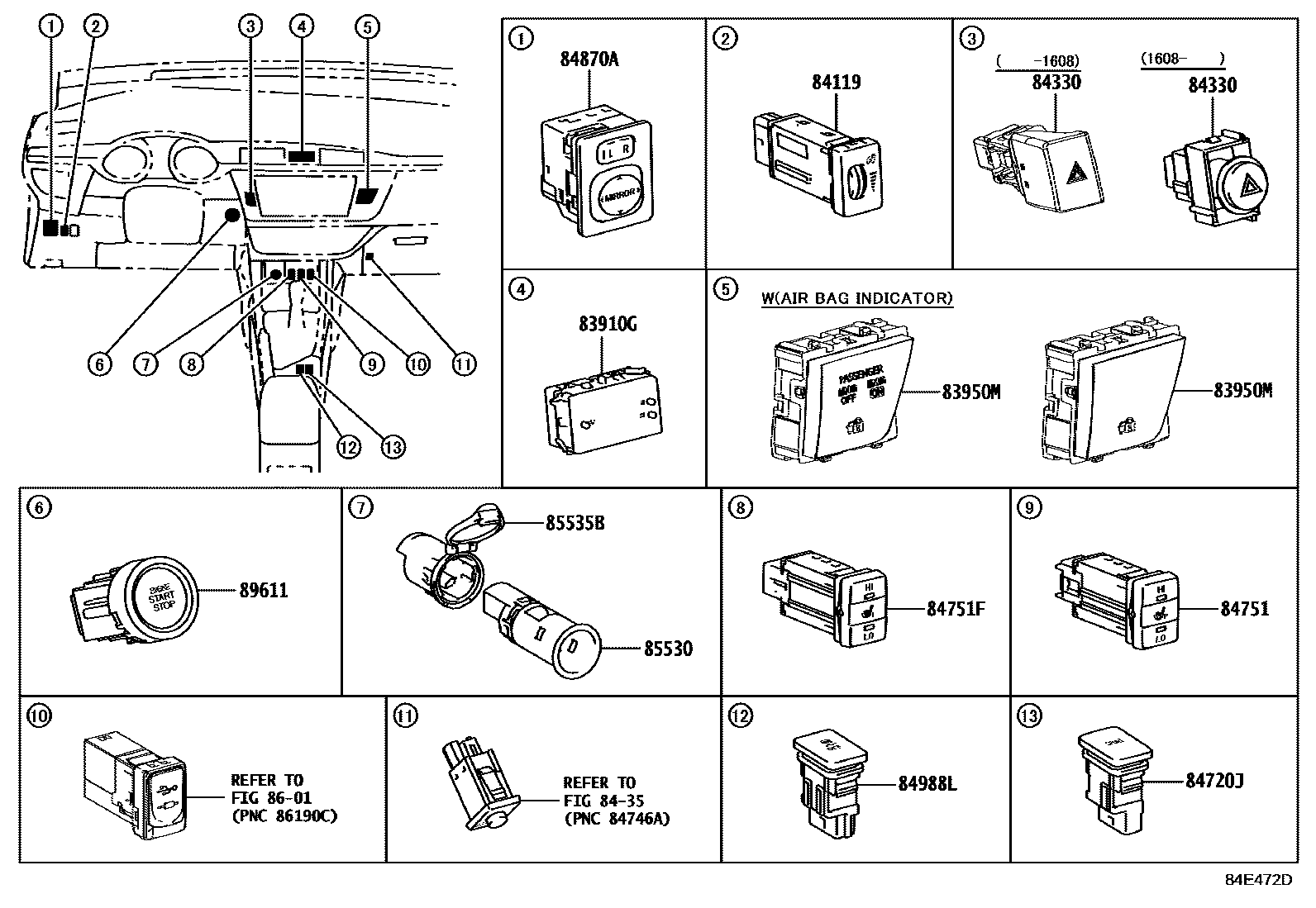

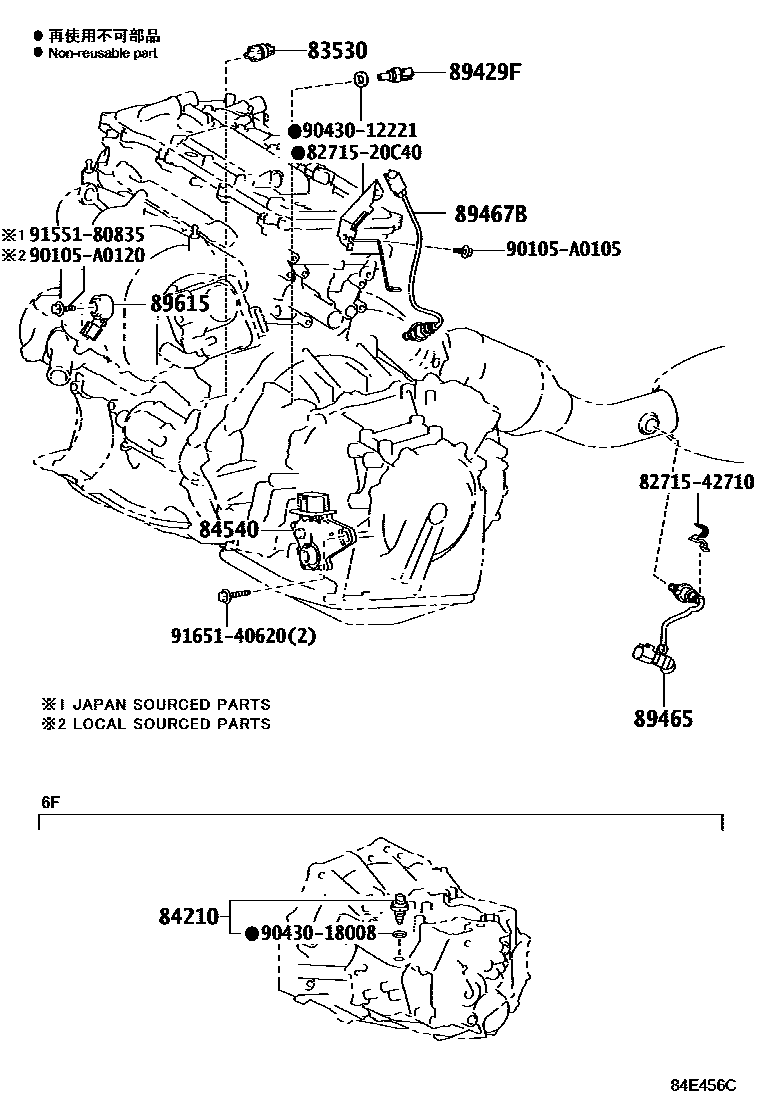

Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 9 images and 75 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-0A010 · 28300-0A011 |
| 28371C | No. 2 ignition relay | 90080-87026 |
| 28850B | Generator control ECU assembly | 28850-36010 |
| 69065A | Air bag cut-off switch lock cylinder sub-assembly | 69065-12460 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08274 · 90982-08294 · 90982-08295 · 90982-08296 · 90982-08305 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09025 |
| 82600F | Spare fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 |
| 82616 | fuse puller | 82616-58010 |
| 82630 | Fuse holder assembly | 82631-12040 |
| 82630C | Fuse holder assembly | 82631-12060 |
| 82642B | No. 1 daytime running light relay | 90080-87026 · 90987-02027 |
| 82661 | No. 1 relay box cover | 82661-12330 |
| 82662B | No. 2 relay box upper cover | 82662-02660 · 82662-02661 |
| 82663 | Relay box lower cover | 82663-12140 |
| 82672A | Junction box cover | 82672-02090 · 82672-02091 |
| 82730A | Driver's side junction box assembly | 82730-02F40 · 82730-02F41 · 82730-02F42 · 82730-02G60 · 82730-02G61 · 82730-02G62 |
| 82741 | Engine room relay box | 82741-12120 |
| 82755 | central relay box | 82755-02040 |
| 83320 | Fuel gauge sensor assembly | 83320-02010 |
| 83390 | Vacuum warning switch assembly | 83390-28120 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-0E010 · 83530-12050 · 83530-12060 · 83530-28020 |
| 83910G | clock assembly | 83910-02150 · 83910-12650 |
| 83950M | Warning light assembly | 83950-02210 · 83950-02240 · 83950-02300 · 83950-12330 |
| 84052 | Unlock warning switch assembly | 84052-71010 |
| 84119 | Light control rheostat | 84119-0C040 · 84119-0C041 |
| 84140 | Headlight dimmer switch assembly | 84140-02840 · 84140-02850 · 84140-0R010 · 84140-0R020 · 84140-0R030 · 84140-0R040 · 84140-0R060 |
| 84210 | Reversing light switch assembly | 84210-52050 |
| 84233 | Door control light switch assembly (for front door) | 84231-08030 |
| 84234 | Door control light switch assembly (for rear door) | 84231-08030 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-02360 · 84250-02380 · 84250-02430 · 84250-02500 · 84250-02830 · 84250-02A30 |
| 84306 | Spiral cable sub-assembly | 84306-06160 · 84308-02030 |
| 84307 | Spiral cable sub-assembly with sensor | 84307-02220 |
| 84330 | Hazard warning signal switch assembly | 84332-02200 · 84332-02201 · 84332-02320 |
| 84340 | brake light switch assembly | 84340-09070 · 84340-09310 |
| 84345 | Brake light switch base adjuster | 84345-08010 |
| 84450 | Ignition or starter switch assembly | 84450-0R010 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84523 | No. 1 switch harness | 84523-42010 |
| 84540 | Neutral start switch assembly | 84540-46010 · 84540-52070 |
| 84550 | Parking brake switch assembly | 84550-02020 |
| 84610F | Transmission shift switch assembly | 84610-12120 · 84610-12130 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-06240 · 84652-06250 · 84652-06340 · 84652-06350 |
| 84720J | Mode selection switch assembly | 84720-02080 · 84720-02081 |
| 84751 | Seat heater switch | 84751-0R020 · 84751-0R022 |
| 84751F | Seat heater switch | 84751-0R030 · 84751-0R032 |
| 84810 | Electric window lift switch assembly | 84810-06030 |
| 84810D | Rear electric window lift switch assembly | 84810-06030 |
| 84820 | Electric window lift main switch assembly | 84820-0R040 |
| 84870A | Exterior rearview mirror switch assembly | 84870-02150 |
| 84922 | Front electric seat switch | 84922-08020 |
| 84930 | Door control switch assembly | 84930-0C010 |
| 84988L | VSC off switch | 84988-0R070 · 84988-0R071 |
| 85432 | Key interlock solenoid valve | 85432-06030 |
| 85530 | No. 1 power socket assembly | 85530-06030 |
| 85912 | defogger relay | 90080-87025 |
| 85916C | Reversing light relay | 90080-87026 |
| 85916D | fog light relay | 90080-87026 |
| 85916P | headlight relay | 90080-87024 |
| 85926 | Headlight dimmer relay | 90080-87024 |
| 85927 | cooling fan relay | 90080-87026 |
| 85934 | Electromagnetic clutch relay | 90987-02028 |
| 86530 | Speaker relay assembly | 90080-87026 |
| 87299 | heater relay | 90080-87024 |
| 89120A | Automatic light control sensor | 89121-12010 |
| 89221 | Multi-channel network body ECU | 89220-02260 · 89220-02270 · 89220-02280 · 89220-02290 · 89220-02300 · 89220-02310 · 89220-02350 · 89220-02D20 · 89220-02D30 · 89220-02D40 · 89220-02E90 · 89220-02F00 · 89220-02F10 · 89220-02F20 · 89220-02F50 · 89220-02F60 · 89220-02F70 · 89220-02F80 · 89220-02F90 |
| 89245B | steering sensor | 89245-09045 · 8924B-0E020 |

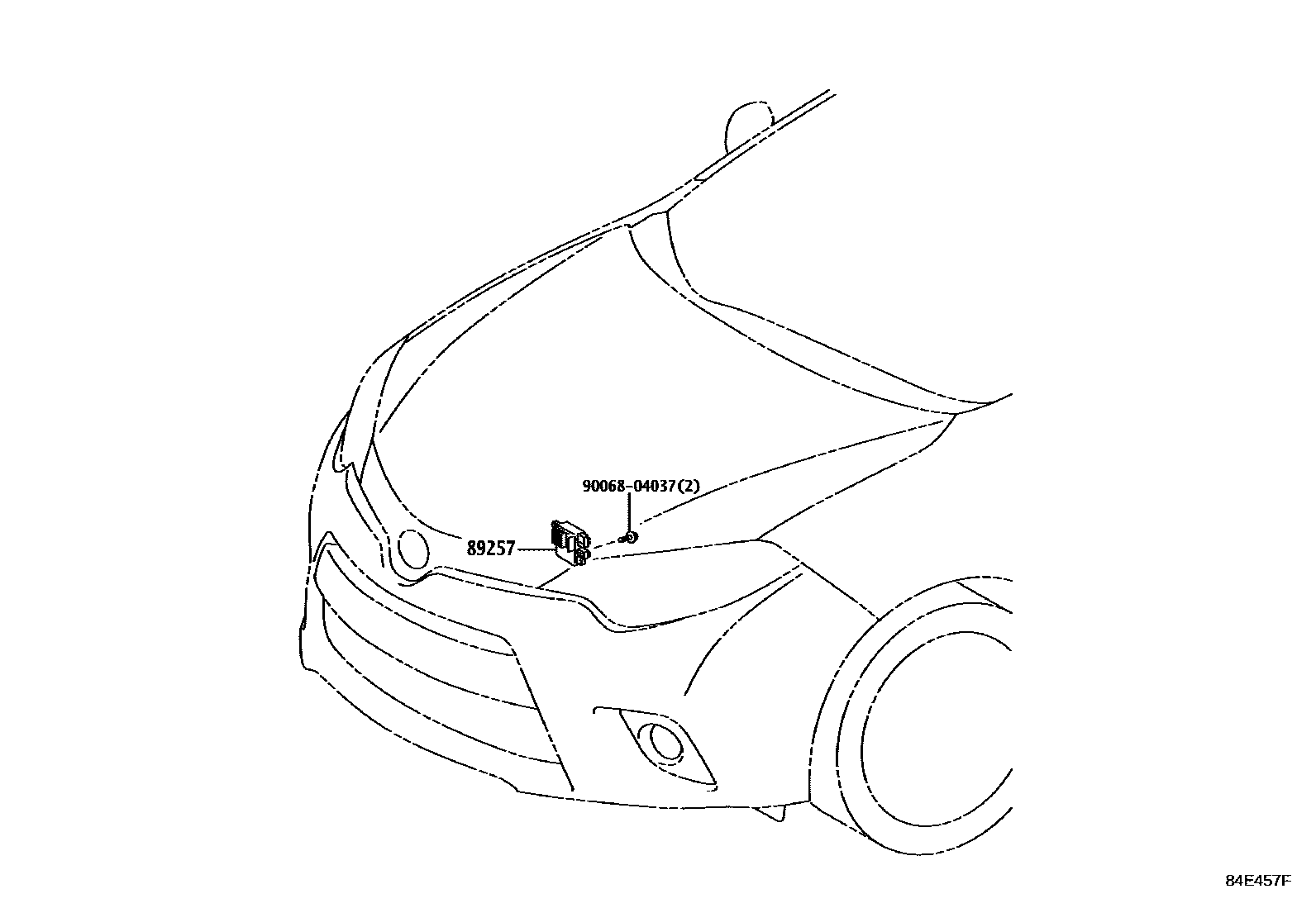

| 89257 | Cooling fan ECU | 89257-12010 |
| 89429F | temperature sensor | 89429-12010 |
| 89465 | oxygen sensor | 89465-02390 · 89465-02400 |
| 89467B | air fuel ratio sensor | 89467-02070 · 89467-02090 |
| 89611 | One-button start switch | 89611-0R020 · 89611-0R021 · 89611-0R022 |
| 89615 | knock control sensor | 89615-06010 · 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-02870 · 89650-02A60 · 89650-02A70 · 89650-02B20 · 89650-02B40 · 89650-02B50 · 89650-02B70 |
| 89730A | Relay (for safety warnings) | 90080-87026 |
