Toyota COROLLA 仪表 — Figure 8301

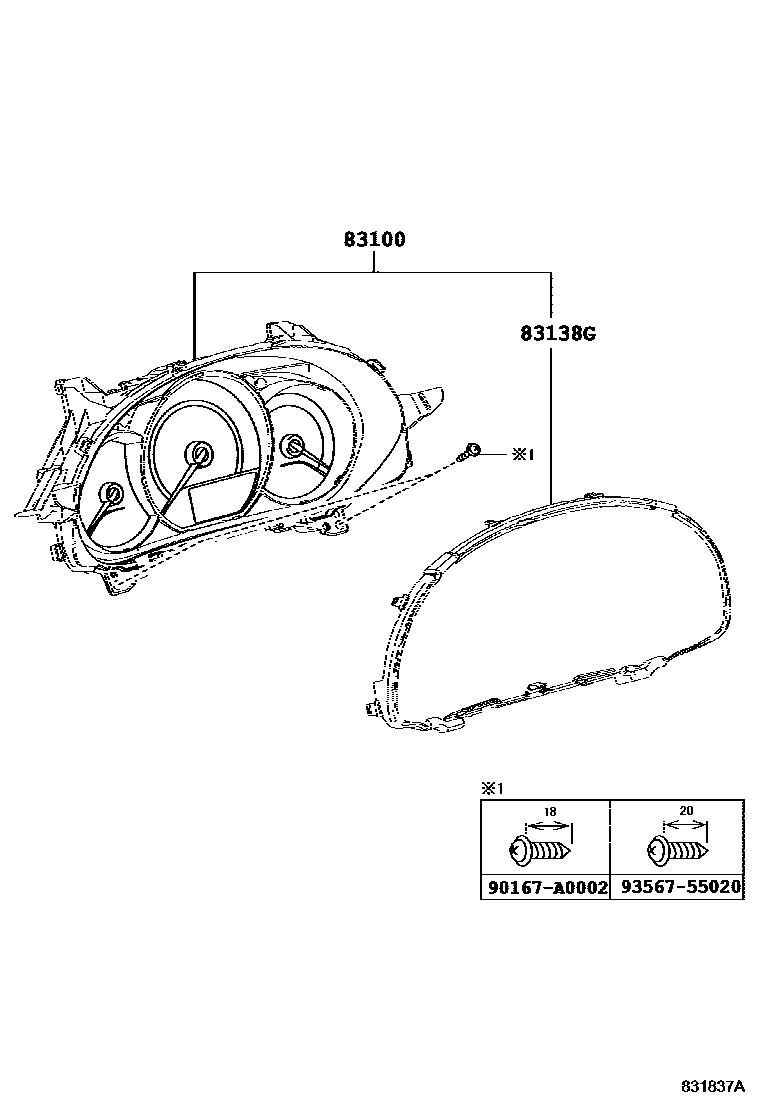

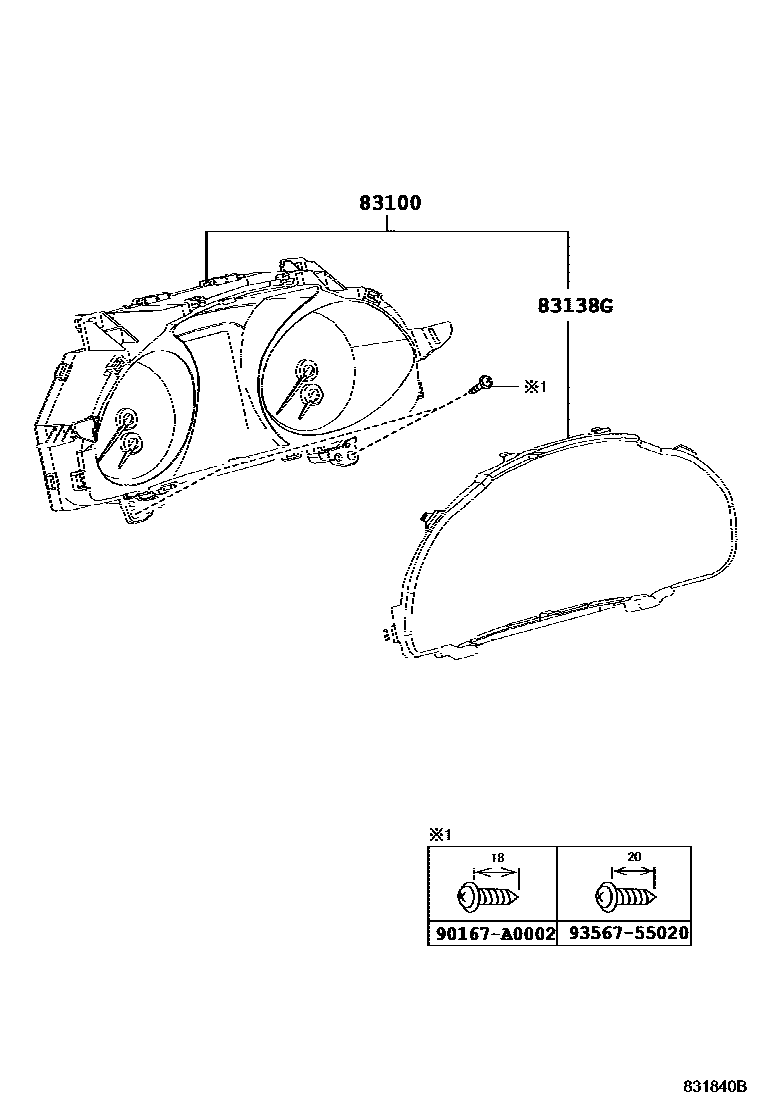

Toyota COROLLA EPC diagram 8301, 仪表, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-0ZX20 · 83800-0ZX60 · 83800-0ZX70 · 83800-0ZX71 · 83800-0ZX72 · 83800-F2370 · 83800-F2371 · 83800-F2A40 · 83800-F2A41 · 83800-F2D00 · 83800-F2D01 · 83800-F2G00 · 83800-F2G10 · 83800-F2P90 · 83800-F2Q00 · 83800-F2Q10 · 83800-F2Q20 · 83800-F2Q30 · 83800-F2Q40 · 83800-F2V00 · 83800-F2V20 |
| 83138G | Instrument cluster glass | 83852-0ZX00 · 83852-0ZX50 · 83852-F2P70 · 83852-F2Q10 |
