Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201

Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 2 images and 3 PNC and OE references.

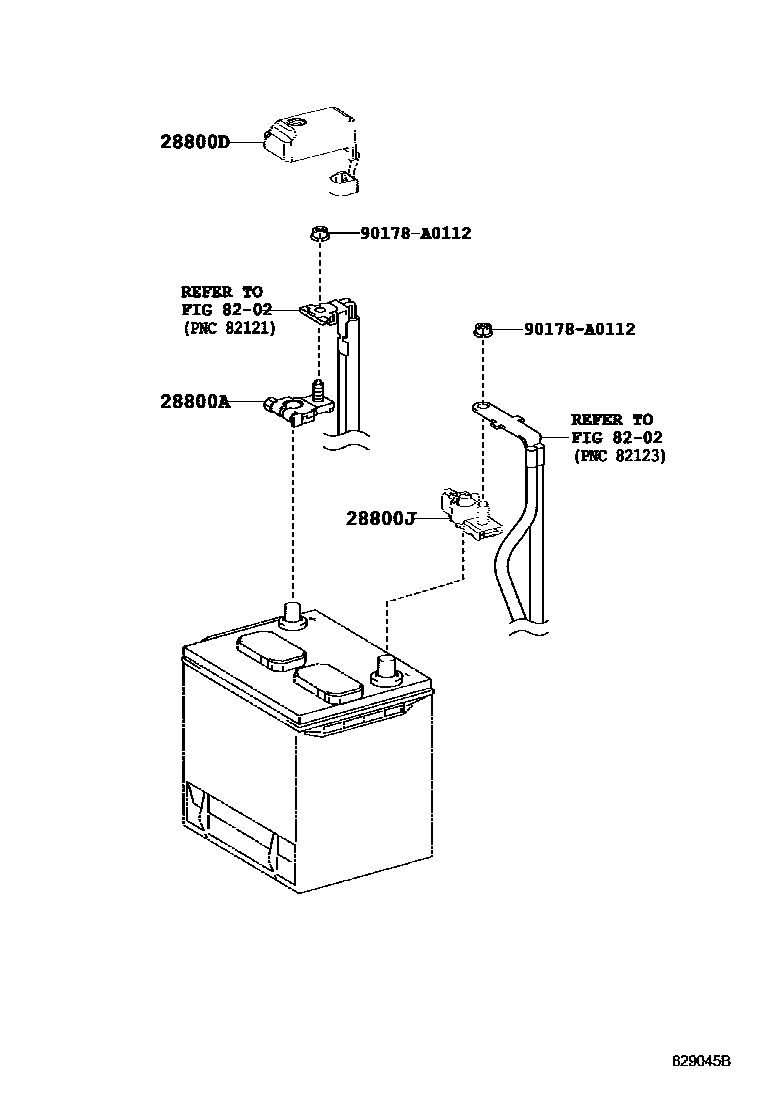

Toyota COROLLA 蓄电池和蓄电池电缆 EPC diagram — 829045B
蓄电池和蓄电池电缆 — 829045B (201308 – 201608)

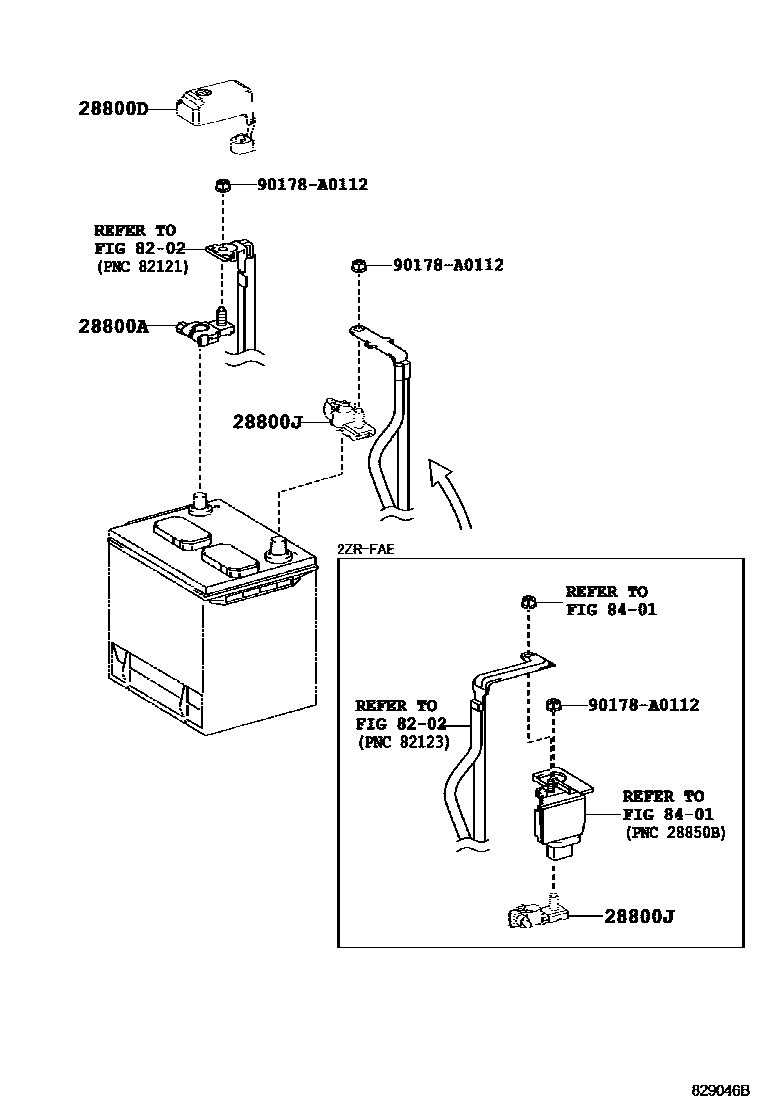

Toyota COROLLA 蓄电池和蓄电池电缆 EPC diagram — 829046B
蓄电池和蓄电池电缆 — 829046B (201608 – 999999)

PNC and OE references

PNCPart nameOE numbers
28800Abattery positive terminal90982-05061
28800DConnector cover (for battery terminals)82821-06040 · 82821-12490
28800Jbattery negative terminal90982-06059 · 90982-06070
