Toyota COROLLA Headlamp — Figure 8101

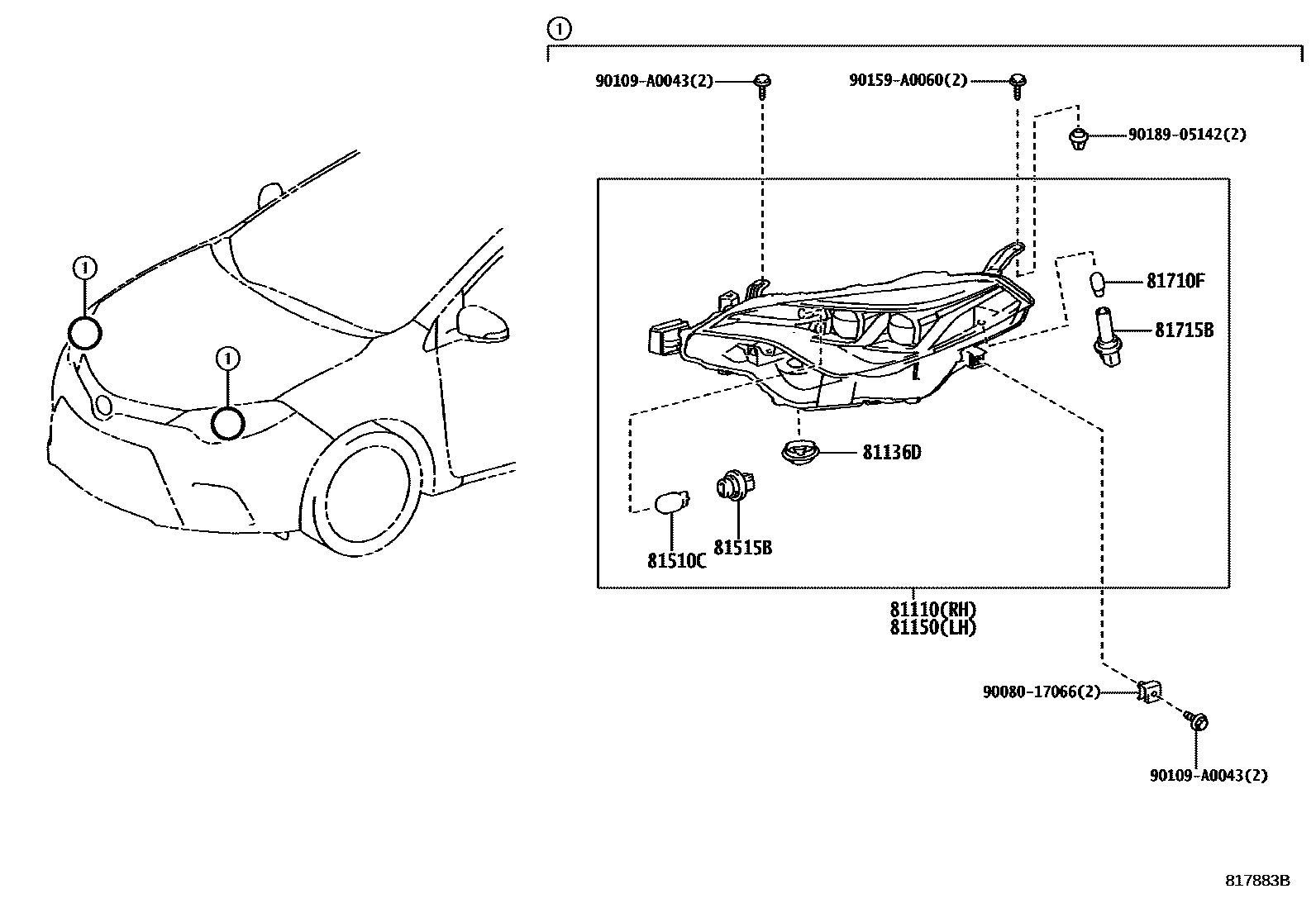

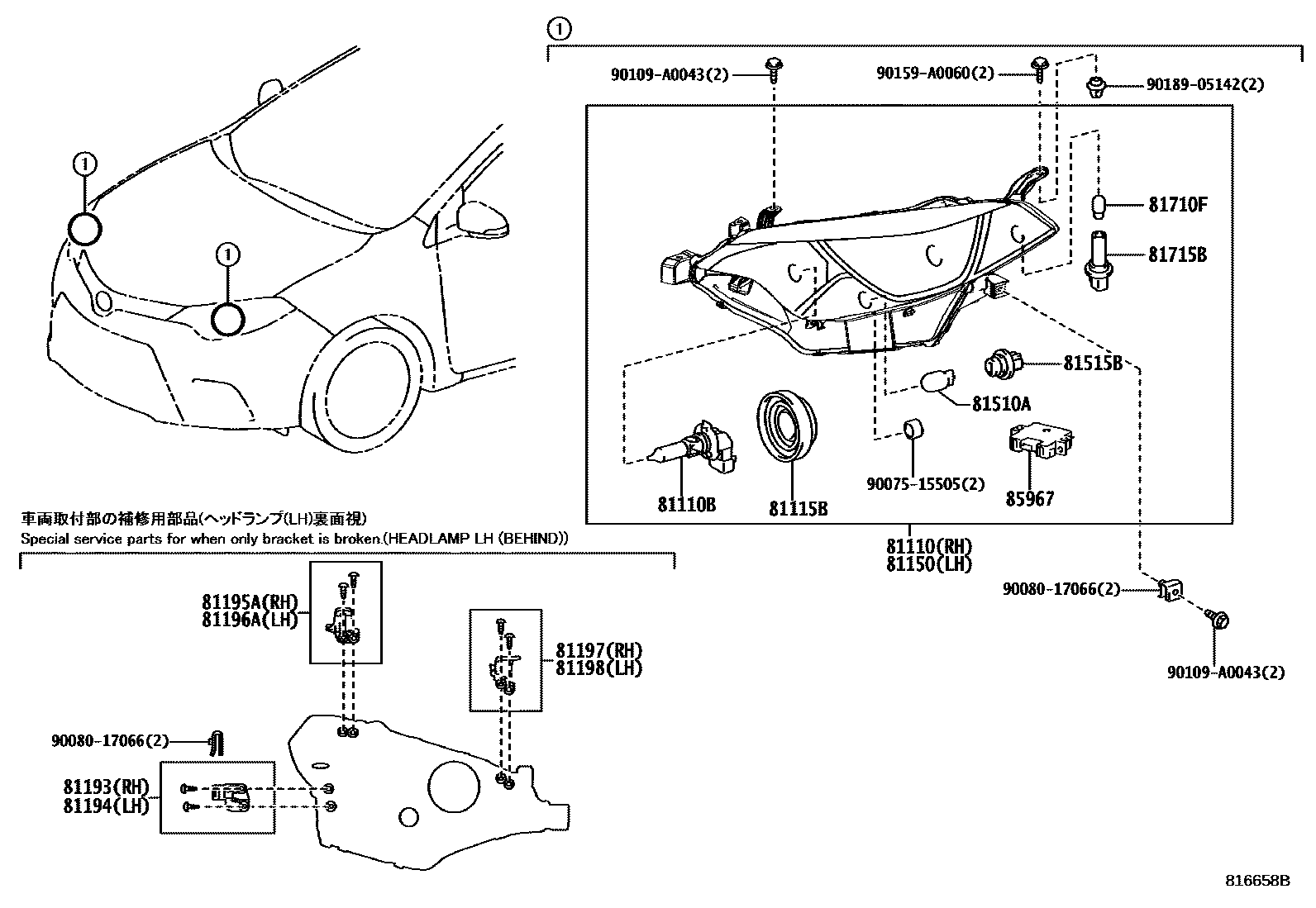

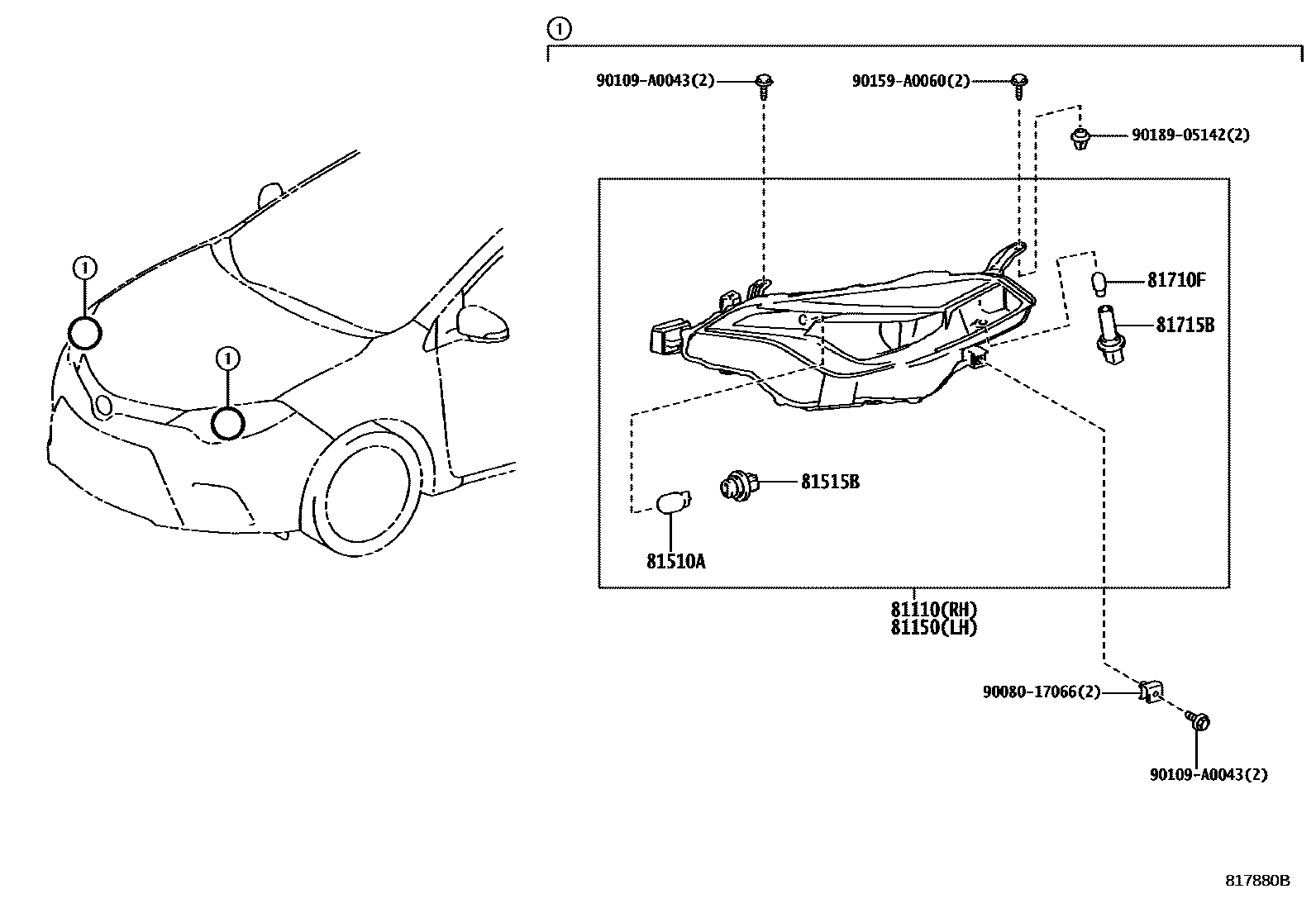

Toyota COROLLA EPC diagram 8101, Headlamp, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-02E60 · 81110-02M70 · 81110-02M90 |
| 81110B | Bulb (for headlight No. 1) | 90981-13046 |
| 81115B | No. 1 headlight lamp holder | 90075-65006 |
| 81136D | headlight cover | 90075-66016 |
| 81150 | Left headlight assembly | 81150-02E60 · 81150-02M70 · 81150-02M90 |
| 81193 | Right headlight upper protective ring | 81193-02080 |
| 81194 | Left headlight upper protective ring | 81194-02080 |
| 81195A | Right headlight lower protection ring | 81195-02080 |
| 81196A | Left headlight lower protection ring | 81196-02080 |
| 81197 | Right headlight lower bracket | 81197-02080 |
| 81198 | Left headlight lower bracket | 81198-02080 |
| 81510A | Front turn signal and parking light bulbs | 90981-15024 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15021 |
| 81515B | Front turn signal lamp holder | 81128-06470 · 90075-60028 |
| 81710F | Front width light bulb | 99132-12050 |
| 81715B | Front width light lamp holder and wiring harness | 90075-60077 · 90075-60089 |
| 85967 | Light control ECU | 85967-02020 |
