Toyota COROLLA 侧防护条 — Figure 7503

Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 15 PNC and OE references.

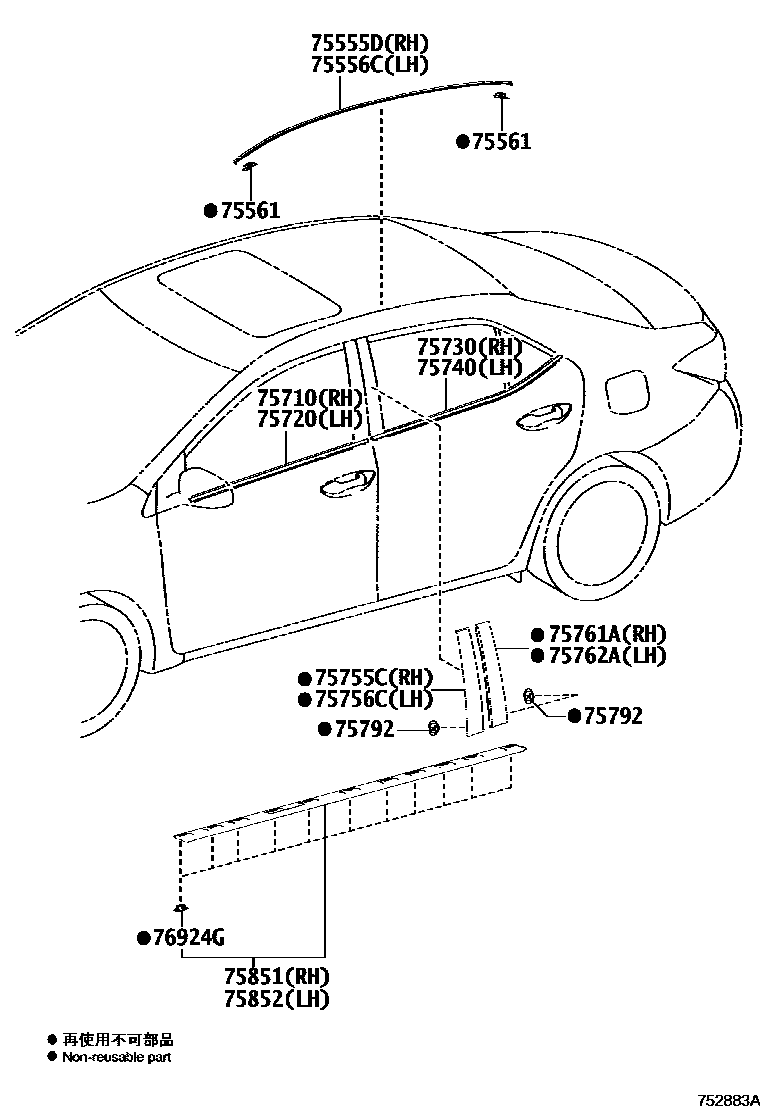

Toyota COROLLA 侧防护条 EPC diagram — 752883A
侧防护条 — 752883A (201308 – 999999)

PNC and OE references

PNCPart nameOE numbers
75555DDrainage channel side decorative strip in the middle section on the right side of the roof75555-02210
75556CDrainage channel side decorative strip in the middle section on the left side of the roof75556-02200
75561No. 1 roof drain channel side decorative strip clip75561-08040 · 75561-52040
75710Right front door waistline protection strip assembly75710-02310
75720Left front door waistline protection strip assembly75720-02310
75730Right rear door waistline protection strip assembly75730-02290
75740Left rear door waistline protection strip assembly75740-02290
75755CRight front door window frame rear protective strip75755-02040
75756CLeft front door window frame rear protective strip75756-02030
75761ARight rear door window frame front protective strip75761-02030
75762ALeft rear door window frame front protective strip75762-02030
75792Car door window frame protective strip clip75792-0R010 · 75792-47010
75851Right side door sill panel protective strip75851-02150
75852Left side door sill panel protective strip75852-02150
76924GDoor sill panel protective strip fixings76924-12030
