Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 5 PNC and OE references.

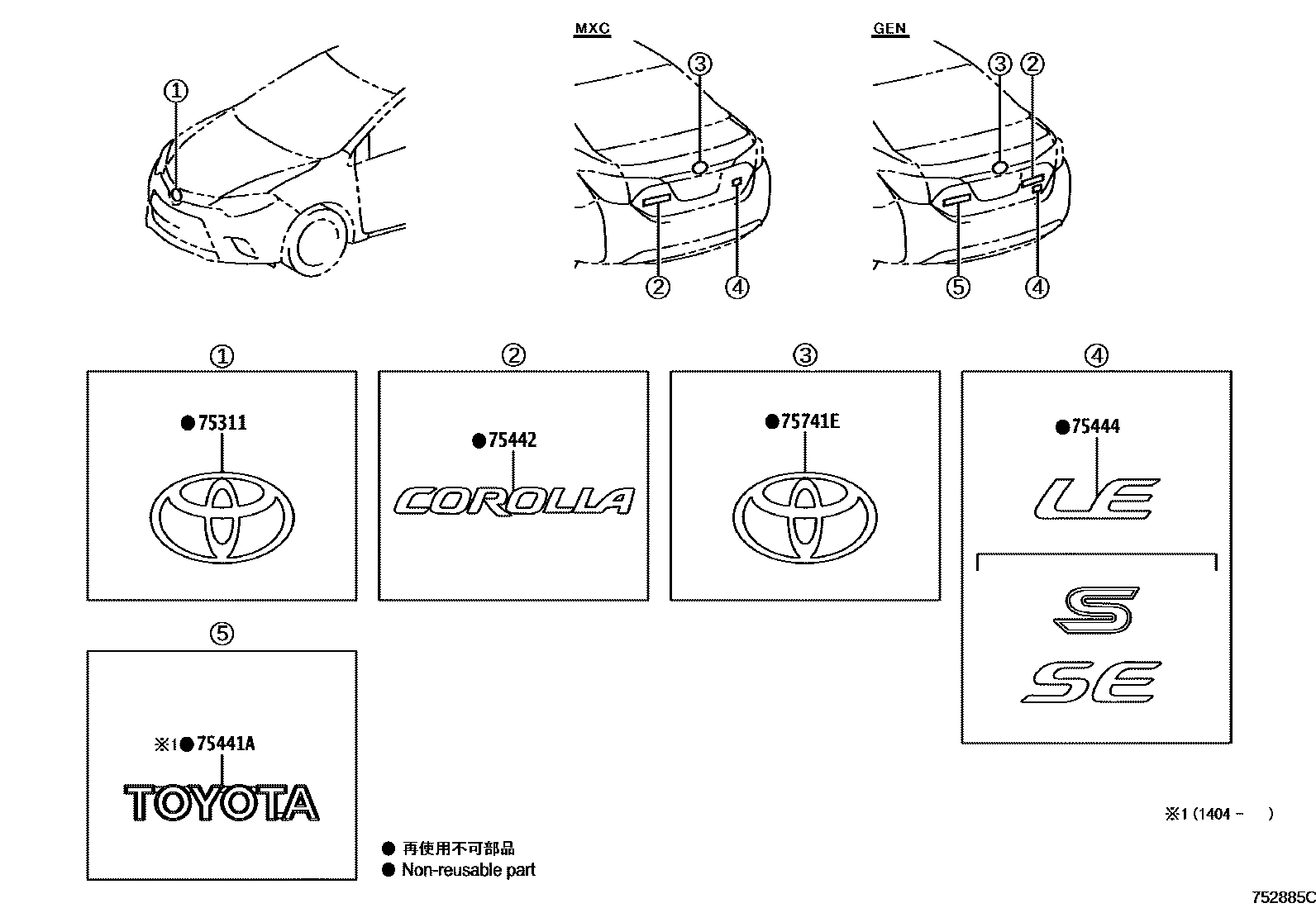

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 752885C
丰田徽标和铭牌(车外和车内) — 752885C (201308 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75301-0R030 · 75431-02080
75441ATrunk door No. 1 name plate75441-02320
75442Trunk door number plate No. 275442-02280
75444Trunk door No. 4 nameplate75444-02C20 · 75444-02C40 · 75444-12D20 · 75444-12D30
75741Elogo90975-A2003
