Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

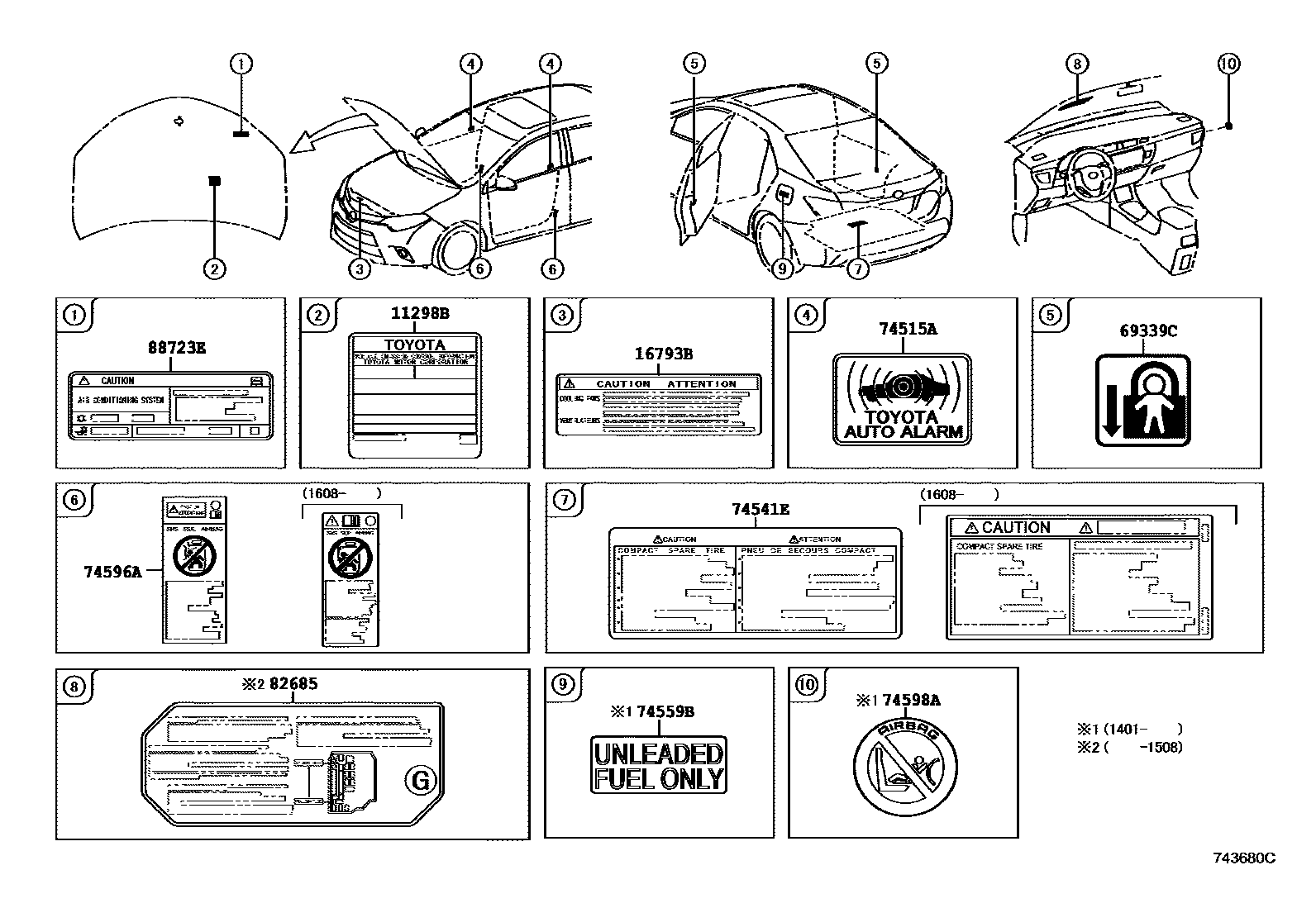

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11298B | Emission Control Information Label | 11298-0T170 · 11298-0T220 · 11298-0T240 |
| 16793B | Cooling fan information label | 16793-0T020 |
| 69339C | Child Restraint Information Label | 69339-06040 |
| 74515A | Anti-theft warning nameplate | 74515-06010 |
| 74541E | Small spare tire warning plate | 42668-06010 · 42668-0E010 |
| 74559B | fuel information label | 74559-01010 |
| 74596A | Side air bag warning label | 74596-02020 · 74596-78010 |
| 74598A | Passenger air bag warning label | 74598-20010 |
| 82685 | warning nameplate | 82685-12110 |
| 88723E | Cooler maintenance warning label | 88723-02340 |
