Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 6 PNC and OE references.

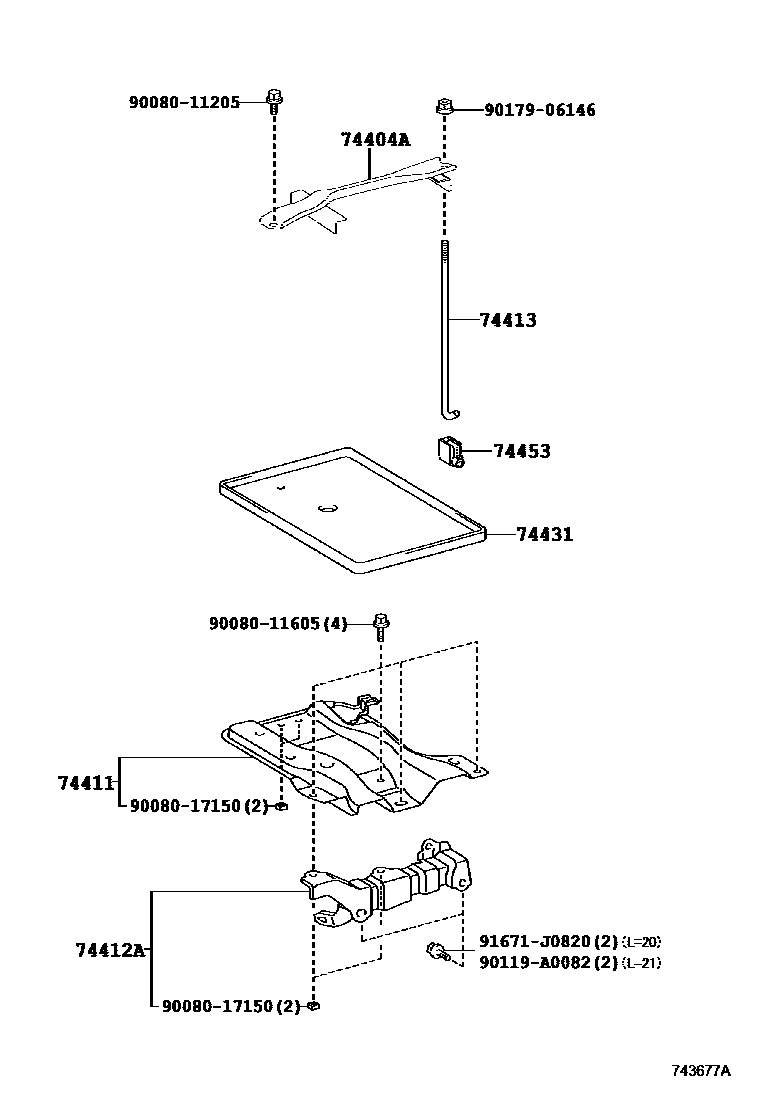

Toyota COROLLA battery holder EPC diagram — 743677A
battery holder — 743677A (201308 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-02380
74411battery holder74401-02090
74412ANo. 2 battery holder74410-02210
74413Battery clamp bolt74451-02080
74431battery tray74431-02110
74453battery holder bracket74454-28020
