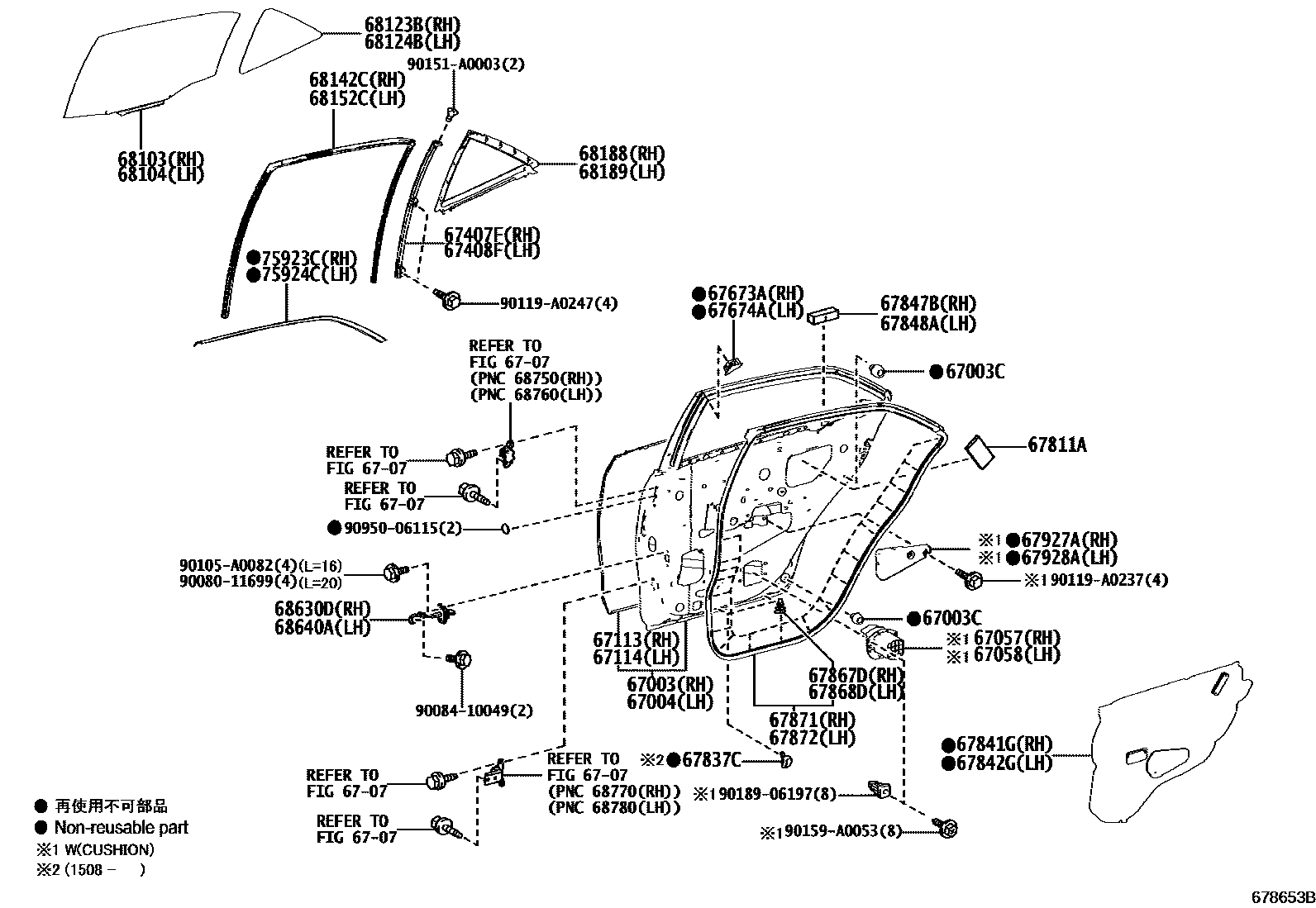

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-02400 · 67003-02520 |
| 67003C | Rear door panel cushion | 90541-09124 |
| 67004 | Left rear door panel sub-assembly | 67004-02400 · 67004-02520 |
| 67057 | Right rear door inner panel reinforcement sub-assembly | 67057-02010 |
| 67058 | Left rear door inner panel reinforcement sub-assembly | 67057-02010 |
| 67113 | Right rear door outer panel | 67113-02190 |
| 67114 | Left rear door outer panel | 67114-02190 |
| 67407F | Right rear door window rear lower frame sub-assembly | 67407-02110 |
| 67408F | Left rear door window rear lower frame sub-assembly | 67408-02110 |
| 67603B | Catch (for rear door trim panel) | 67773-0E020 |
| 67673A | Right rear door frame decorative strip | 67673-0E010 |
| 67674A | Left rear door frame decorative strip | 67674-0E010 |
| 67811A | Rear door silencer pad | 67811-AA040 |
| 67837C | Rear door dust seal retainer | 67837-0E060 |
| 67841G | Right sliding door access hole cover | 67841-02260 |
| 67842G | Left sliding door access hole cover | 67842-02240 |
| 67847B | No. 1 right rear door ventilation device seal | 67847-02030 |
| 67848A | No. 1 left rear door ventilator seal | 67847-02030 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-02230 |
| 67872 | Left rear door sealing strip | 67872-02230 |
| 67927A | Right rear door reinforcement cushion pad | 67927-02050 |
| 67928A | Left rear door reinforcement cushion pad | 67928-02060 |
| 68103 | Right rear door glass sub-assembly | 68103-02400 |
| 68104 | Left rear door glass sub-assembly | 68104-02400 |
| 68123B | Right rear door corner window glass | 68123-02320 |
| 68124B | Left rear door corner window glass | 68124-02320 |
| 68142C | Right rear door glass lift slot | 68142-02290 |
| 68152C | Left rear door glass lift slot | 68152-02290 |
| 68173B | Right rear door glass inner sealing strip | 68173-02230 |
| 68174A | Left rear door glass inner sealing strip | 68174-02200 |
| 68188 | Right rear door corner window seal | 68188-02160 |
| 68189 | Left rear door corner window seal | 68189-02160 |
| 68630D | Right rear door opening limiter assembly | 68630-02240 |
| 68640A | Left rear door opening limiter assembly | 68630-02240 |
| 75923C | No. 2 right side light-shielding film | 75923-02220 |
| 75924C | No. 2 left shading film | 75924-02220 |
