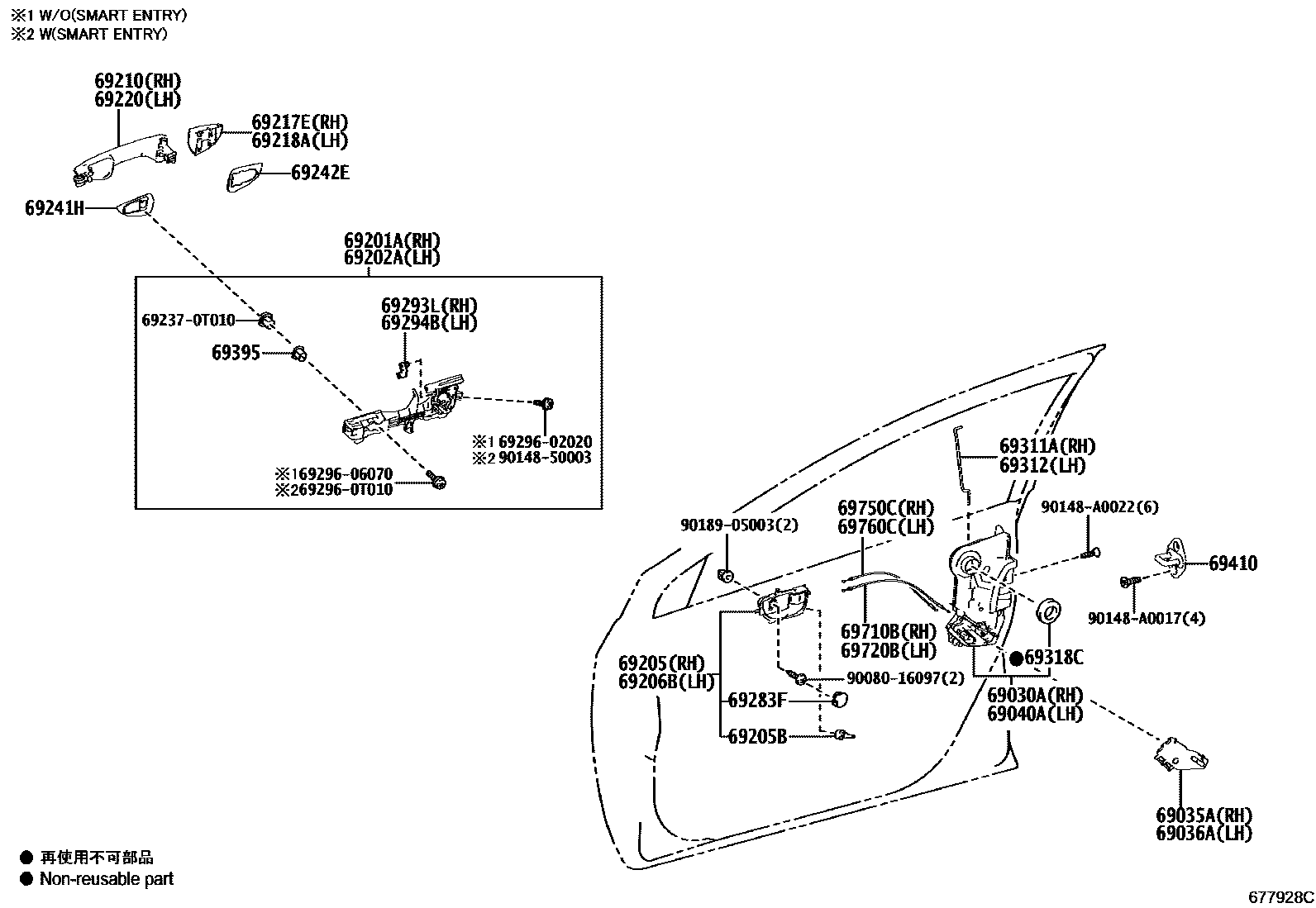

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-02380 · 69030-02550 · 69030-02660 |
| 69035A | Right front door lock cover sub-assembly | 69035-02030 |
| 69036A | Left front door lock cover sub-assembly | 69036-02030 |
| 69040A | Left front door door lock assembly with motor | 69040-02440 · 69040-02520 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-02240 · 69201-02450 · 69201-0R010 · 69201-0R120 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-02180 · 69202-02370 · 69202-0R010 · 69202-0R100 |
| 69205B | Cushion pad (for inner front door handle) | 90541-04027 |
| 69241H | Front door exterior handle pad | 69241-02120 · 69242-02110 |
| 69242E | Front door rear outer handle pad | 69241-02130 · 69242-02120 |
| 69293L | Right front door outer handle buckle | 69293-12030 · 69293-33010 |
| 69294B | Left front door outer handle buckle | 69293-12040 · 69293-33020 |
| 69311A | Right front door lock opening lever | 69311-02260 |
| 69312 | Left front door lock opening lever | 69312-02260 |
| 69318C | door lock harness seal | 69318-AA010 |
| 69395 | Bushing (for outer door handle) | 69239-0T010 |
| 69410 | Front door lock plate assembly | 69410-02030 |
| 69710B | Right front door lock remote control cable assembly | 69710-02230 |
| 69720B | Left front door lock remote control cable assembly | 69710-02230 |
| 69750C | Right front door inner lock cable assembly | 69750-02260 |
| 69760C | Left front door inner lock cable assembly | 69750-02260 |
