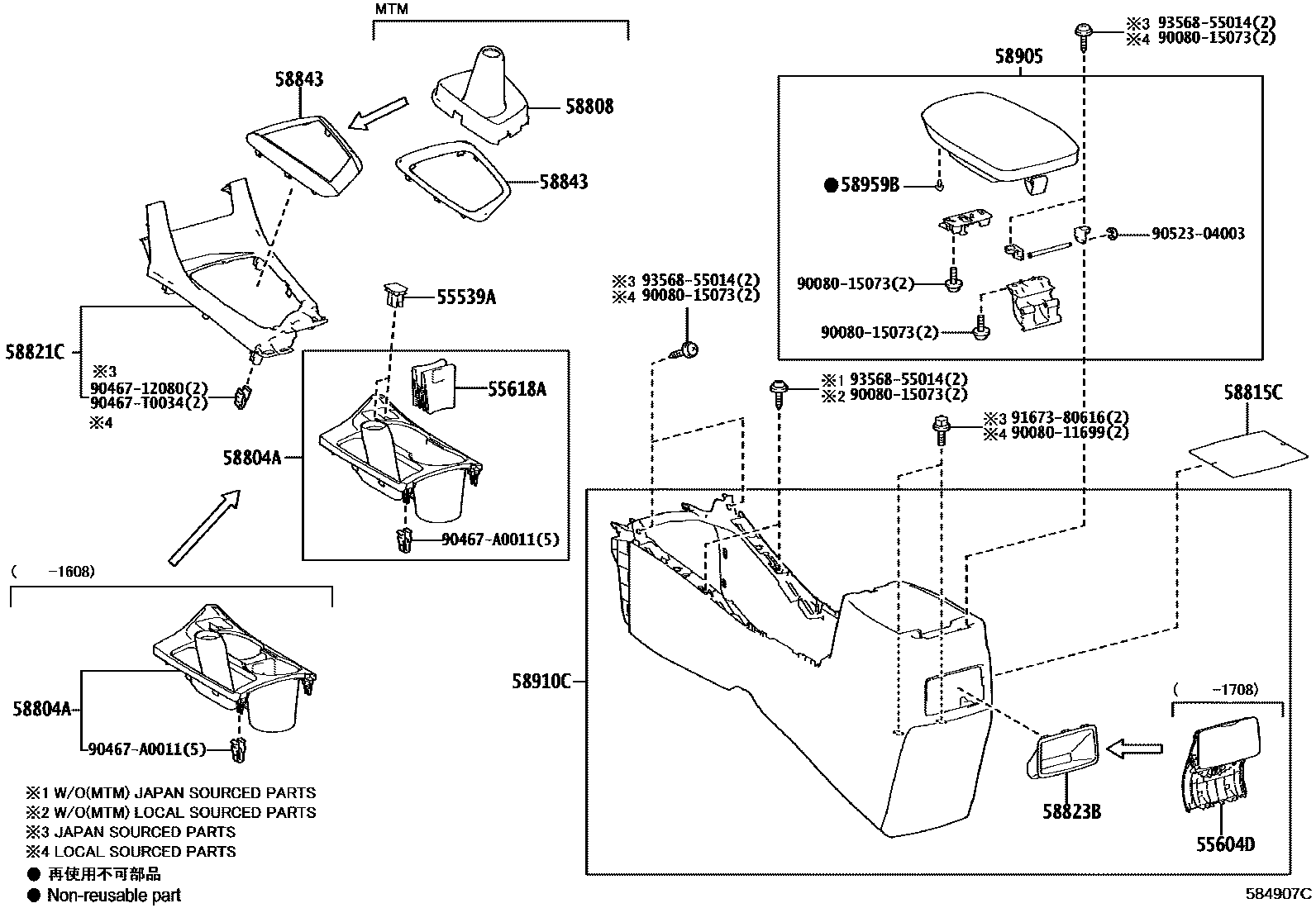

Toyota COROLLA 中央扶手箱和支架 — Figure 5806
Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58815C | Armrest box felt pad | 58815-02280 |
| 58823B | Armrest box cover | 58823-02060 |
| 58843 | shift hole frame | 58843-02440 · 58843-02441 · 58843-02450 · 58843-02451 |
| 58959B | Armrest box cover cushion | 90541-03078 |
