Toyota COROLLA 地板垫和地毯 — Figure 5804

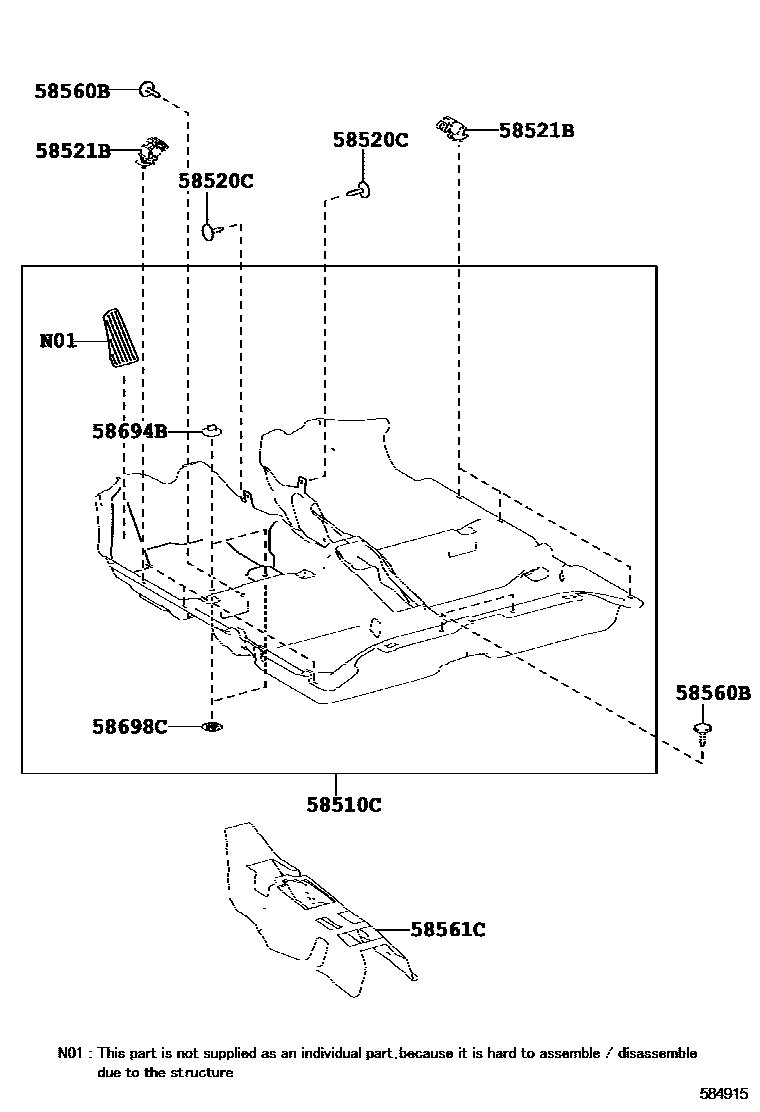

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58521B | carpet hook | 58521-0R030 |
| 58561C | Front floor silencer No. 1 | 58561-02290 · 58561-02291 |
| 58694B | Pad the fixing plate | 58694-76010 · 58694-78010 |
| 58698C | Fixing plate under the pad | 58698-76010 · 58698-78010 |
