Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 26 PNC and OE references.

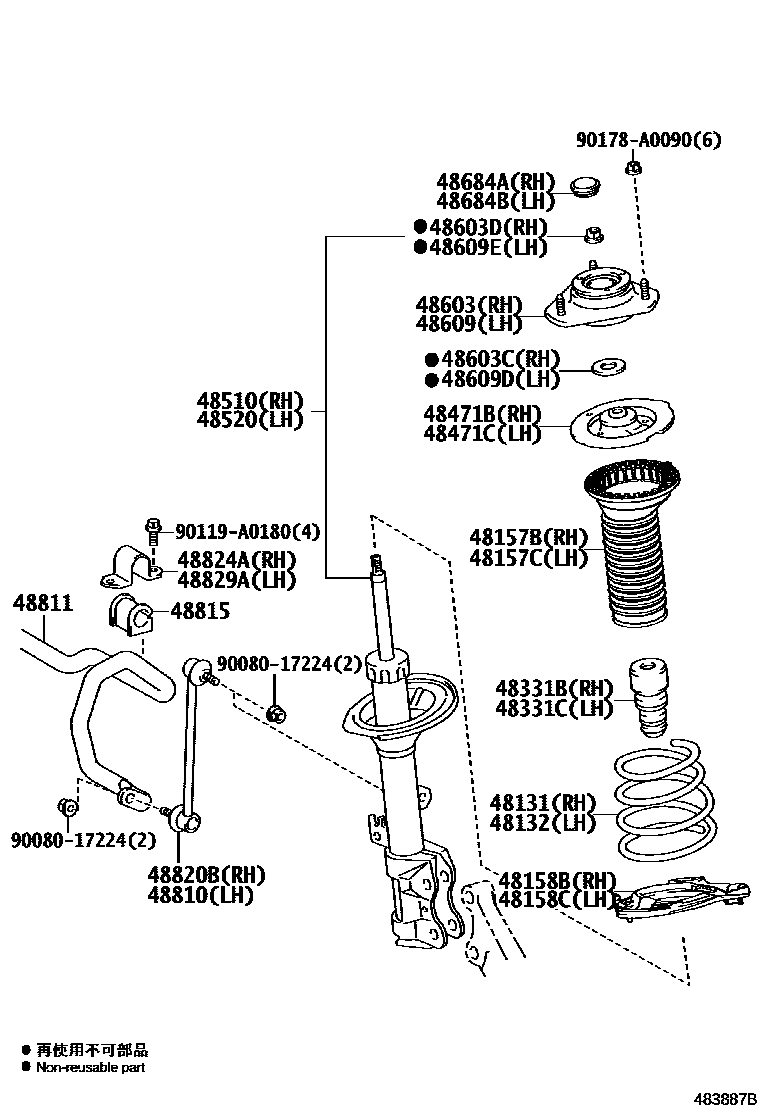

Toyota COROLLA Front Spring & Shock Absorber EPC diagram — 483887B
Front Spring & Shock Absorber — 483887B (201308 – 999999)

PNC and OE references

PNCPart nameOE numbers
48131Right front coil spring48131-02M90 · 48131-02N60 · 48131-02P80
48132Left front coil spring48131-02M90 · 48131-02N60 · 48131-02P80
48157BFront coil spring upper right vibration isolation pad48157-02180
48157CFront coil spring upper left vibration isolation pad48157-02180
48158BFront coil spring lower right vibration isolation pad48158-02120
48158CFront coil spring lower left vibration isolation pad48158-02120
48331BRight front spring buffer block48331-02110
48331CLeft front spring buffer block48331-02110
48471BFront coil spring upper right seat48044-02120
48471CFront coil spring upper left seat48044-02120
48510Right front shock absorber assembly48510-8Z148 · 48510-8Z149 · 48510-8Z184
48520Left front shock absorber assembly48520-8Z036 · 48520-8Z037 · 48520-8Z066
48603Right front suspension bearing sub-assembly48609-02190
48603CDust seal (for right front suspension mount)90303-22002
48603DNut (for front mount to right front shock absorber)90080-17217
48609Left front suspension bearing sub-assembly48609-02190
48609DDust seal (for left front suspension mount)90303-22002
48609ENut (for front mount to left front shock absorber)90080-17217
48684ARight front suspension support dust cover48684-52010
48684BLeft front suspension support dust cover48684-52010
48810Left front stabilizer bar link assembly48820-02030
48811front stabilizer bar48811-AB011
48815Front stabilizer bar bushing No. 148815-02100
48820BRight front stabilizer bar link assembly48820-02030
48824ARight front stabilizer bar bracket No. 148824-06020
48829ALeft front stabilizer bar bracket No. 148824-06020
