Toyota COROLLA 制动配管和卡箍 — Figure 4708

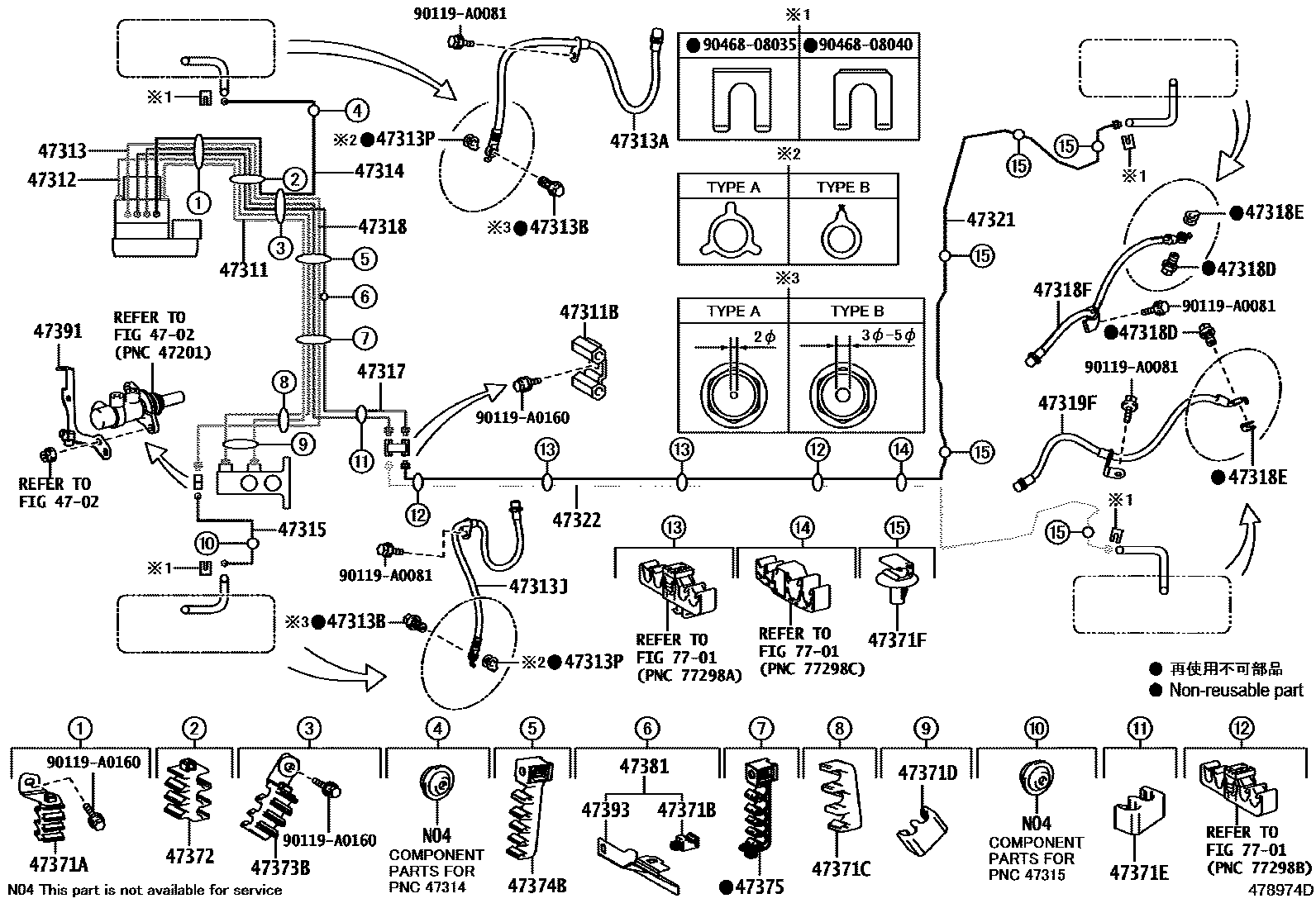

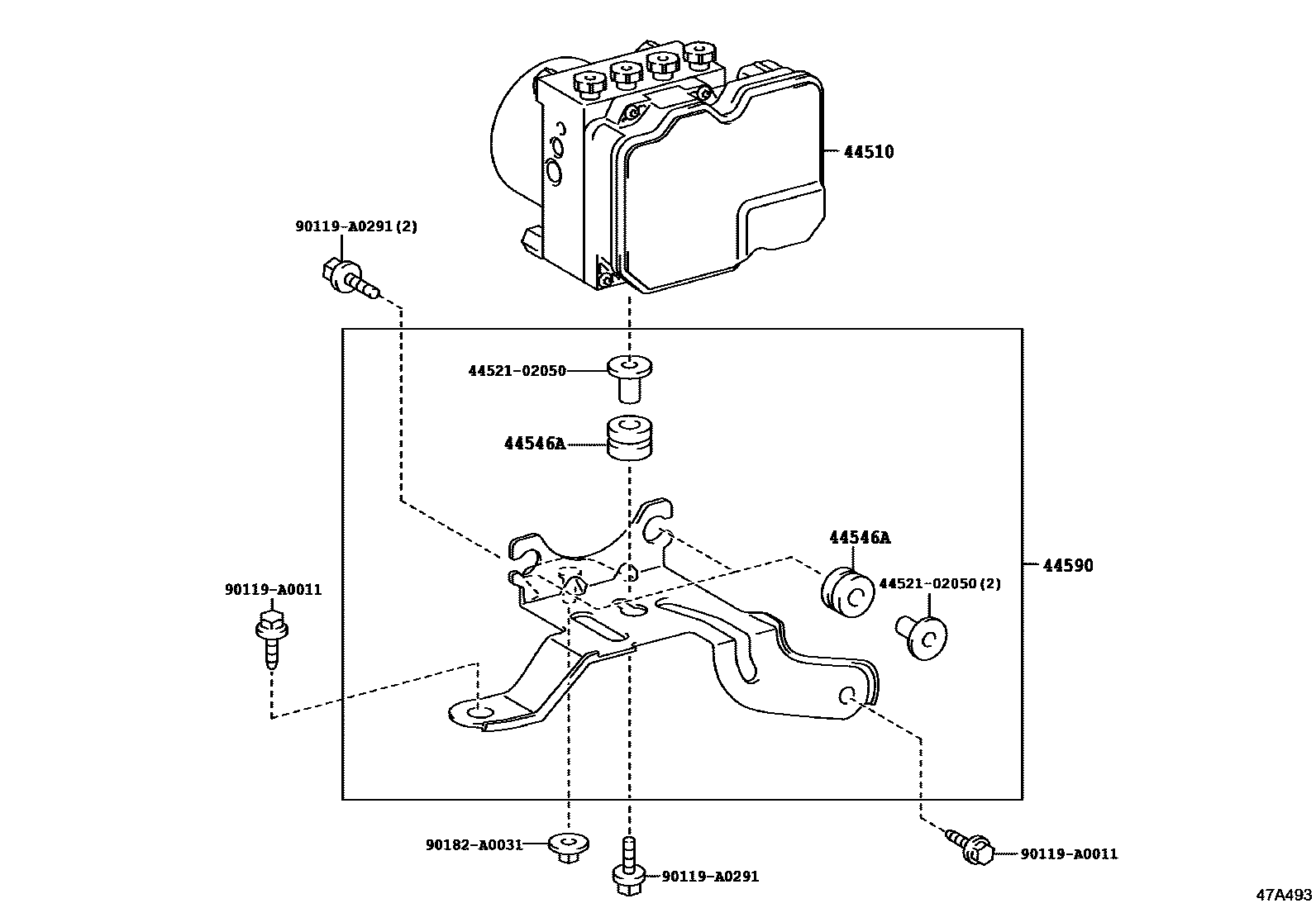

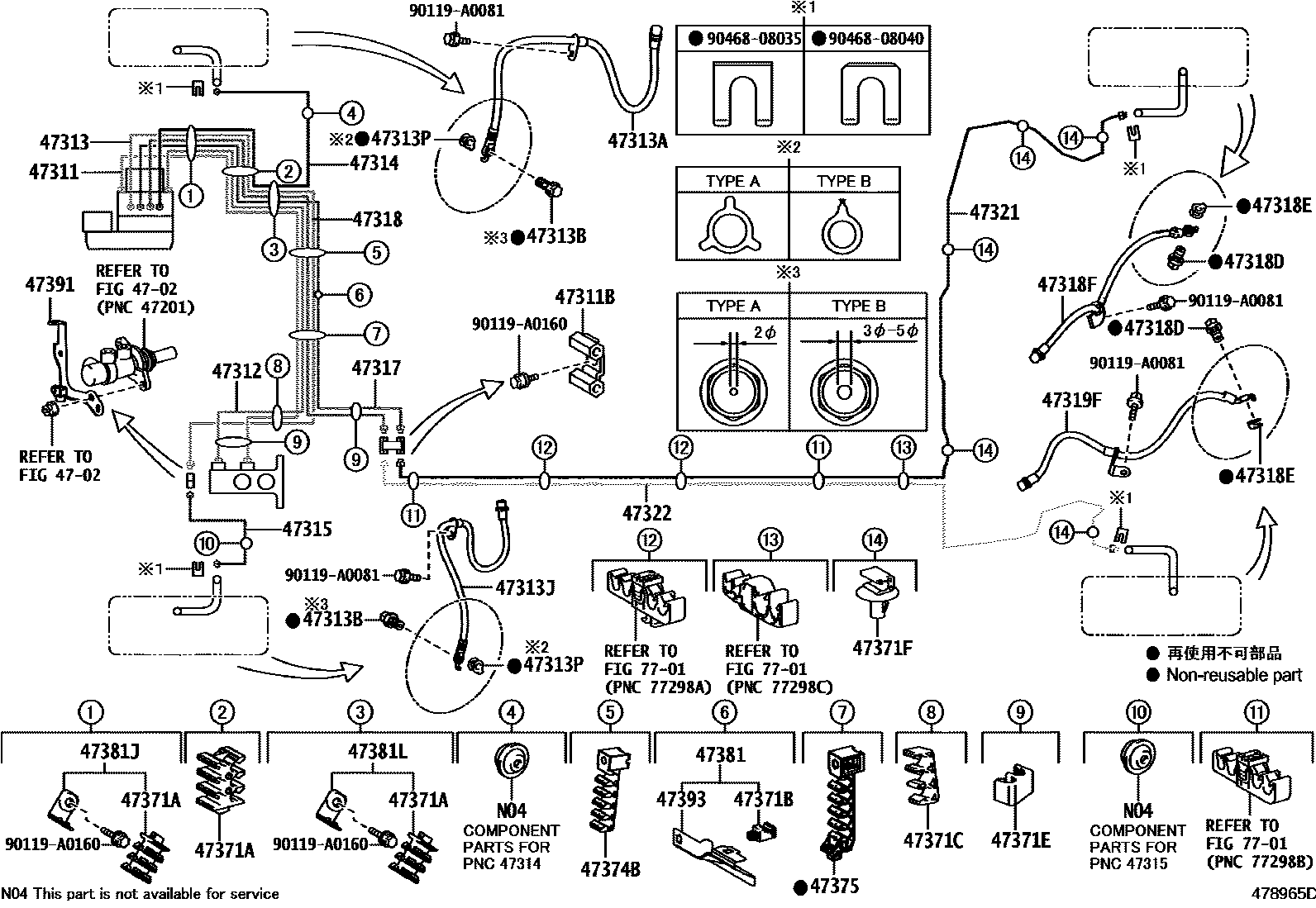

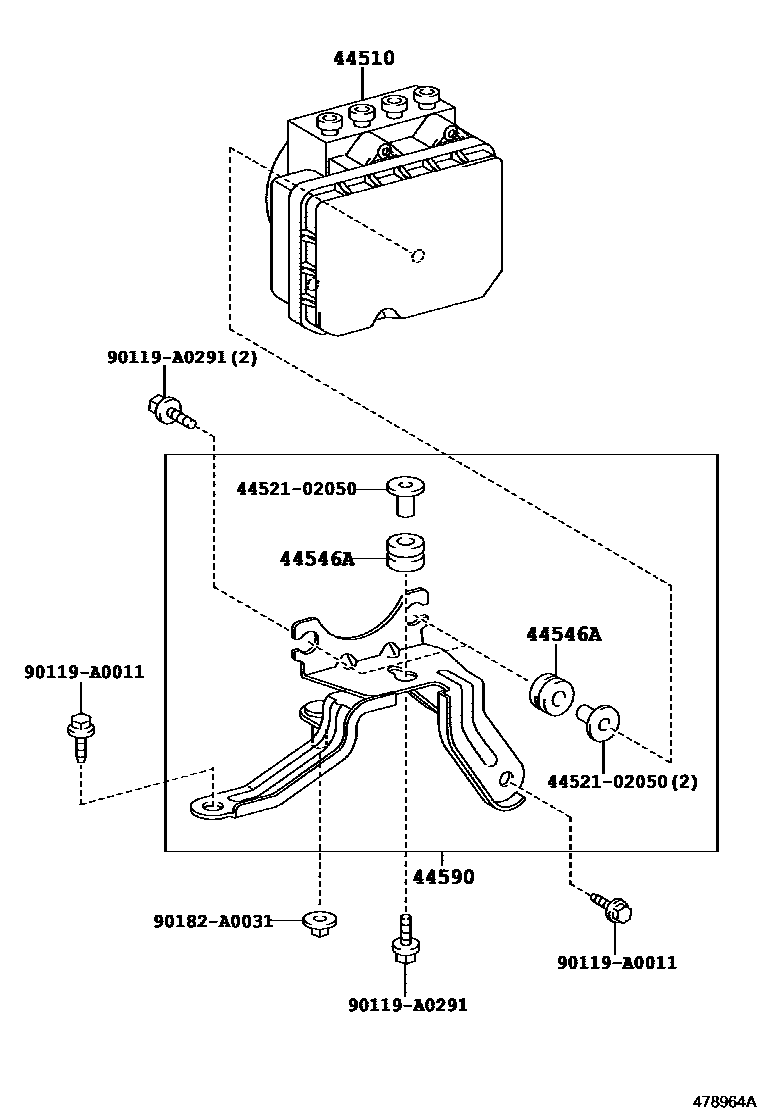

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 4 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-02710 · 44050-02711 · 44050-02770 · 44050-02A80 · 44050-02B70 · 44050-02F20 |
| 44546A | Brake actuator bolt cushion | 44546-12110 |
| 44590 | Brake actuator bracket assembly | 44590-02141 · 44590-02200 · 44590-02470 |
| 47311 | No. 1 front brake pipe | 47311-02820 · 47311-02890 · 47311-02C90 · 47311-02D00 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 · 90412-A0004 |
| 47312 | No. 2 front brake pipe | 47312-02680 · 47312-02750 · 47312-02860 · 47312-02B40 |
| 47313 | No. 3 front brake pipe | 47313-02A10 · 47313-02A80 · 47313-02D80 · 47313-02D90 |
| 47313A | No. 1 front flexible hose | 90947-A2075 |
| 47313B | Connector bolt (for front flex hose) | 90401-10045 · 90401-10058 · 90401-A0001 |
| 47313J | No. 2 front flexible hose | 90947-A2076 |
| 47313P | Gasket (for front flex hose) | 47389-30010 · 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-02820 · 47314-02890 · 47314-02D11 · 47314-02D21 |
| 47315 | No. 5 front brake pipe | 47315-02260 · 47315-02411 |
| 47317 | No. 7 front brake pipe | 47317-02760 · 47317-02830 · 47317-02C70 · 47317-02C80 |
| 47318 | No. 8 front brake pipe | 47318-02780 · 47318-02850 · 47318-02C90 · 47318-02D00 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 · 90401-A0001 |
| 47318E | Gasket (for rear flex hose) | 47389-50021 |
| 47318F | Right rear flexible hose | 90947-A2073 |
| 47319F | Left rear flexible hose | 90947-A2074 |
| 47321 | No. 1 rear brake pipe | 47321-02400 · 47321-02450 |
| 47322 | No. 2 rear brake pipe | 47322-02400 · 47322-02450 |
| 47371A | No. 1 brake pipe clamp | 90949-01C51 · 90949-04053 |
| 47371B | No. 6 brake pipe clamp | 90949-01D81 |
| 47371C | No. 7 brake pipe clamp | 90464-00857 · 90464-00914 |
| 47371D | No. 8 brake pipe clamp | 90464-00920 |
| 47371E | No. 9 brake pipe clamp | 90464-00904 |
| 47371F | No. 10 brake pipe clamp | 90949-01D17 |
| 47372 | No. 2 brake pipe clamp | 90949-01D33 |
| 47373B | No. 3 brake pipe clamp | 90949-04054 |
| 47374B | No. 4 brake pipe clamp | 90949-01D28 · 90949-01D73 |
| 47375 | No. 5 brake pipe clamp | 90949-01D79 · 90949-01D80 |
| 47381 | No. 1 brake pipe clamp bracket | 47371-12290 |
| 47381J | No. 2 brake pipe clamp bracket | 47371-12240 |
| 47381L | No. 3 brake pipe clamp bracket | 90949-04050 |
| 47391 | Brake pipe joint | 47391-02130 · 47391-12051 |
| 47393 | brake pipe heat shield | 47393-12030 |
