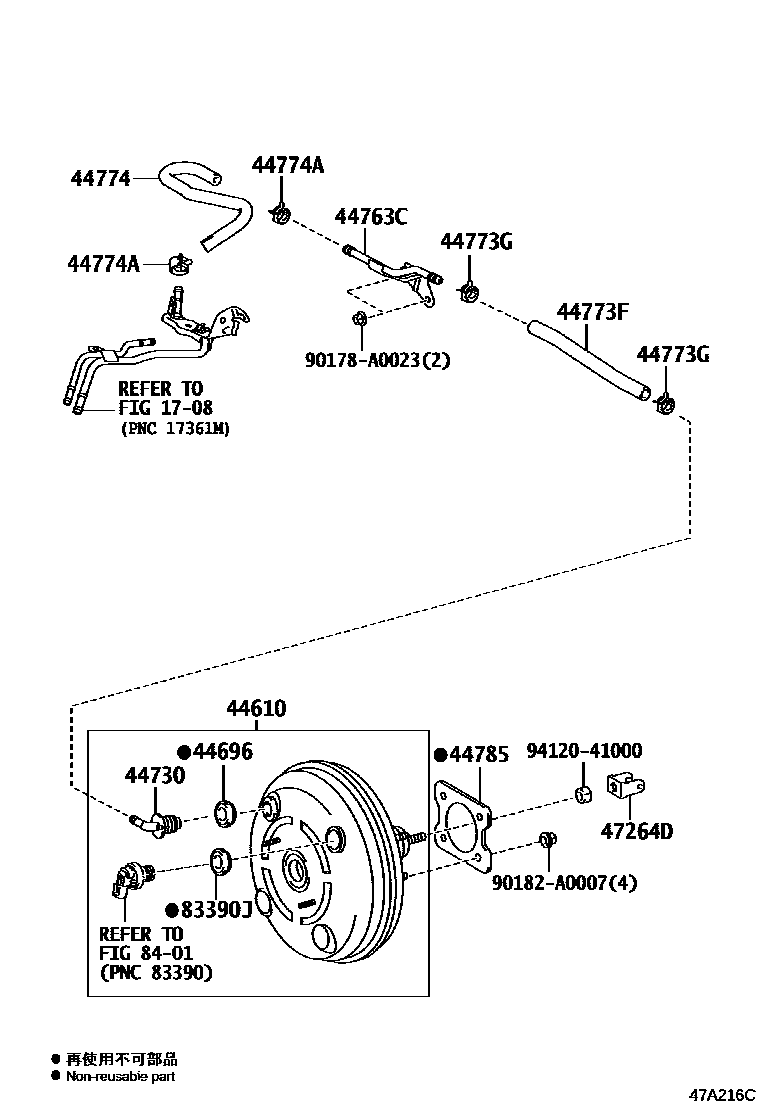

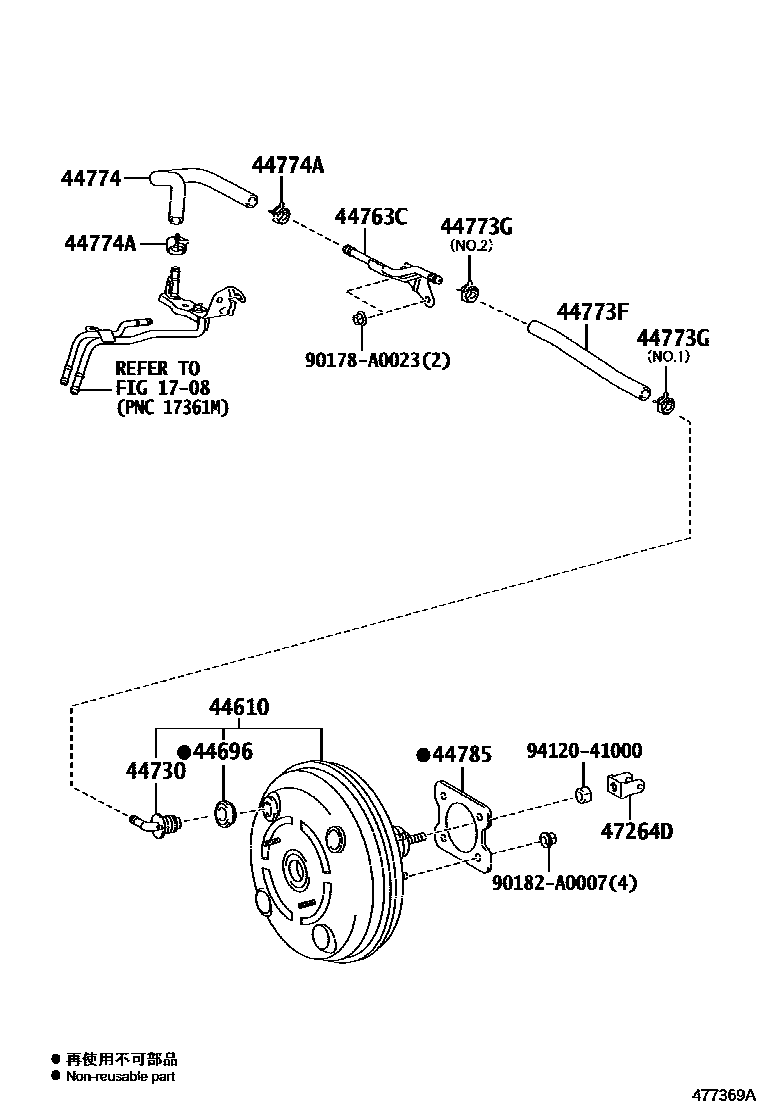

Toyota COROLLA 制动助力器和真空管 — Figure 4703
Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-02630 · 44610-02840 · 44610-02880 · 44610-02D10 |
| 44696 | One-way valve seal | 90080-48071 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-20170 |
| 44763C | Pipe No. 2 (hose to hose) | 44763-02090 |
| 44773F | Hoses (connector to check valve) | 44773-02050 |
| 44773G | Clamp (for connector to one-way valve hose) | 90467-16014 · 96133-41500 |
| 44774 | Hoses (joints to connector tubes) | 44774-02090 · 44774-02250 |
| 44774A | Clip (for fitting to connector tube hose) | 90467-16014 · 96133-41500 |
| 44785 | brake booster pad | 44785-02060 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-02100 · 47264-63020 |
| 83390J | Vacuum warning switch seal | 90080-48071 |
