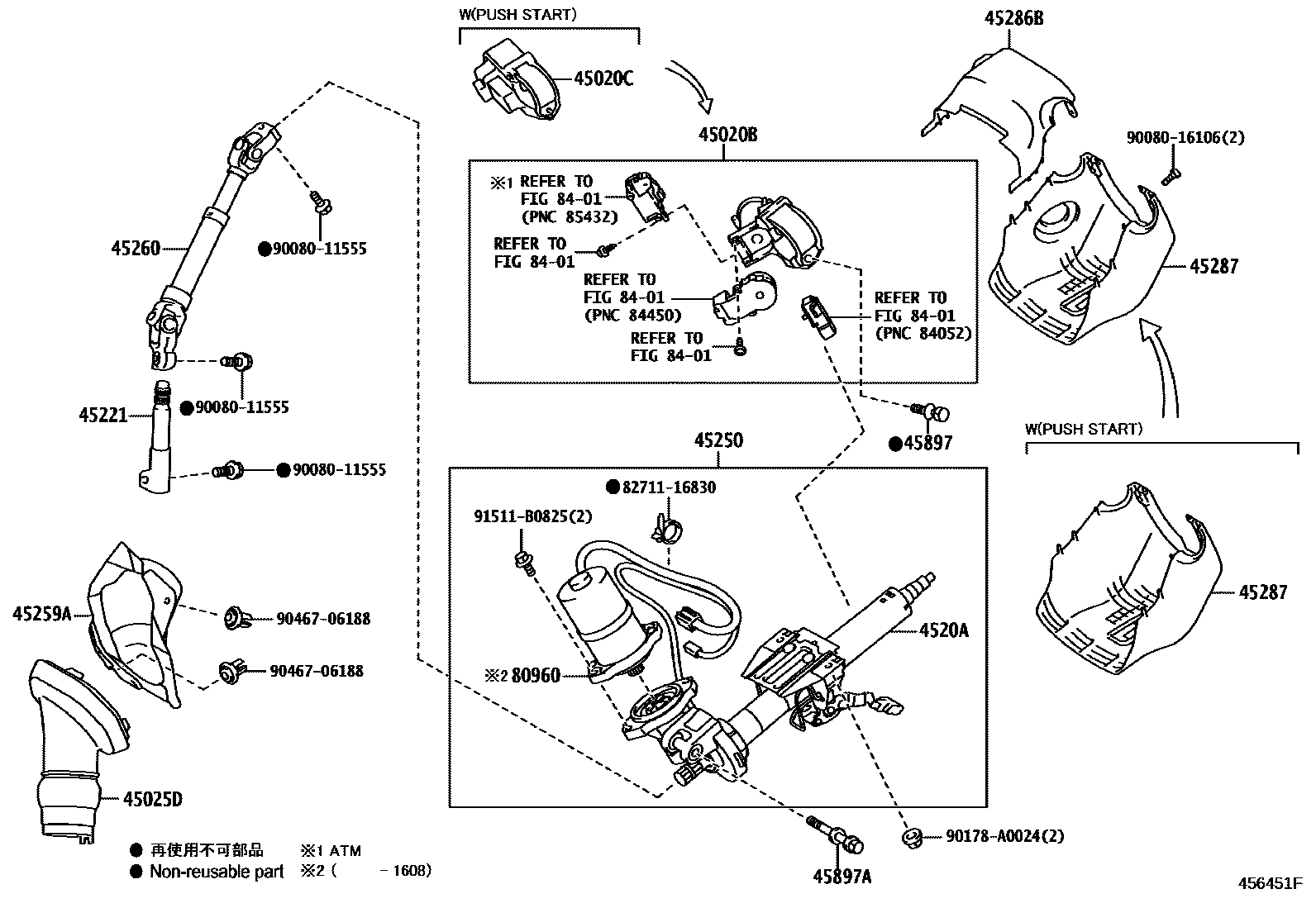

Toyota COROLLA Steering Column & Shaft — Figure 4501
Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45020B | Steering lock actuator or upper bracket assembly | 45020-02500 · 45020-02510 |
| 45020C | Steering lock actuator assembly with ECU | 45020-02520 |
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-02181 |
| 4520A | Electric steering column sub-assembly | 4520A-02280 · 4520A-02290 |
| 45221 | steering intermediate shaft | 45221-02110 |
| 45250 | Steering column assembly | 45250-02890 · 45250-02D70 |
| 45259A | Steering column hole cover silencer plate | 45259-02180 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-02170 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 90119-10981 |
| 80960 | Power steering motor assembly | 80960-02100 · 80960-02140 |
