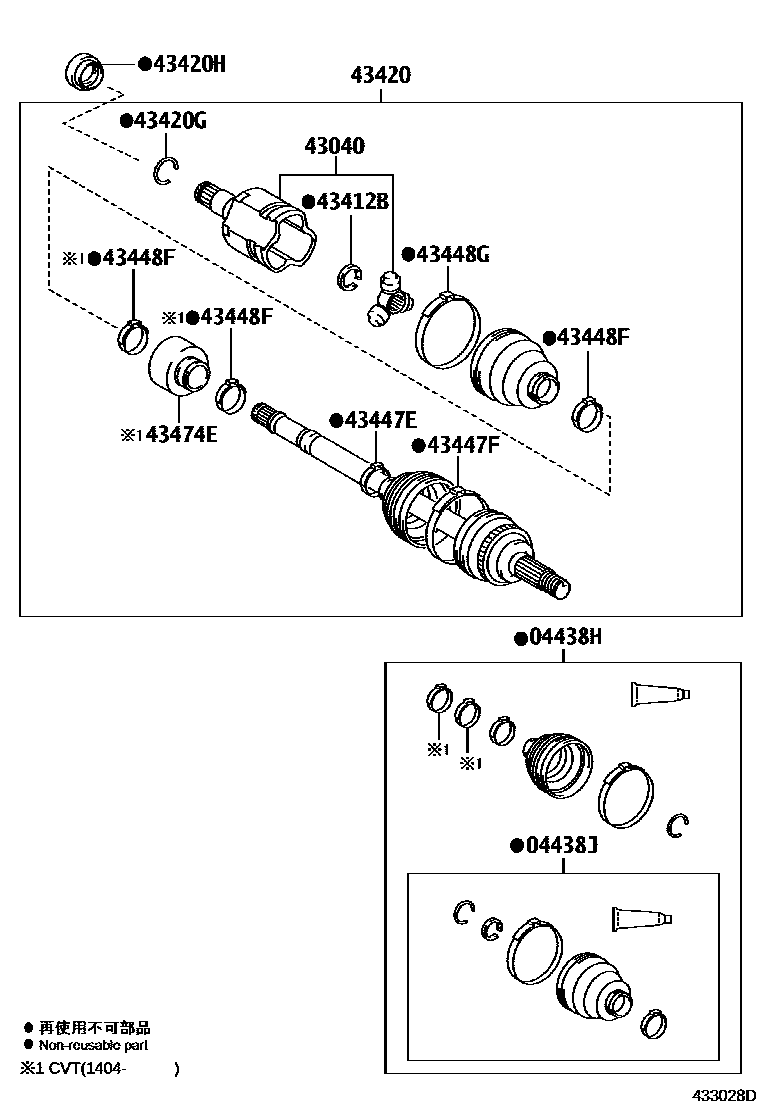

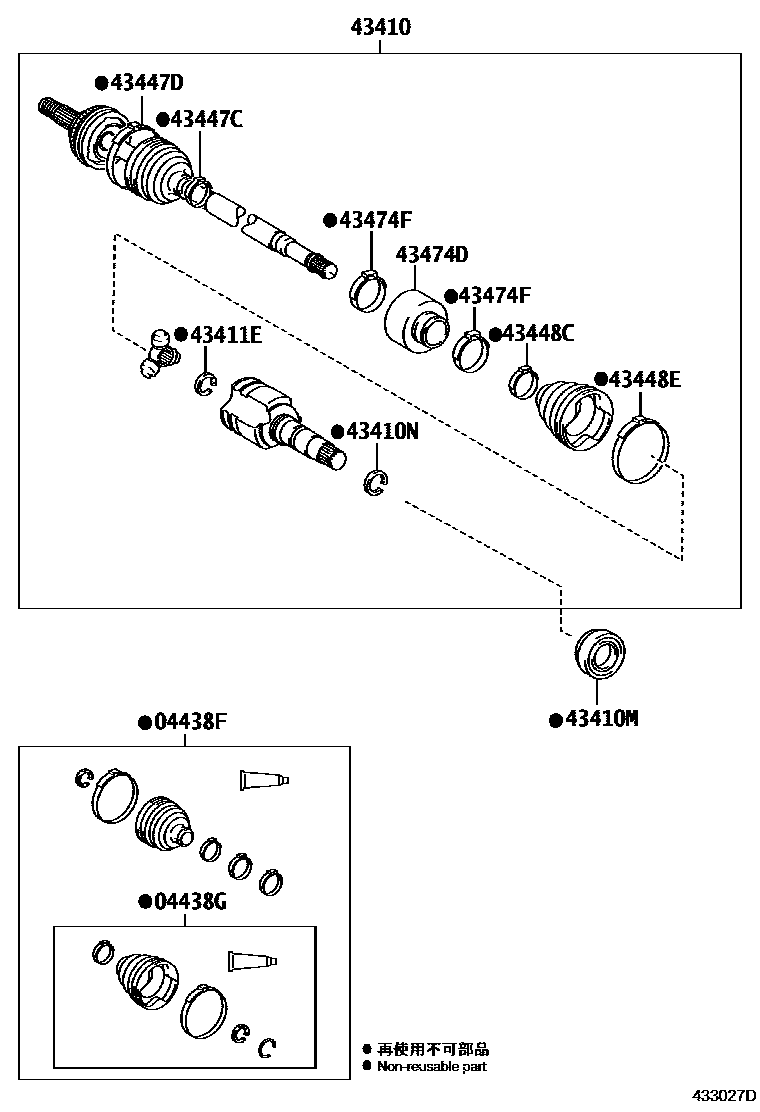

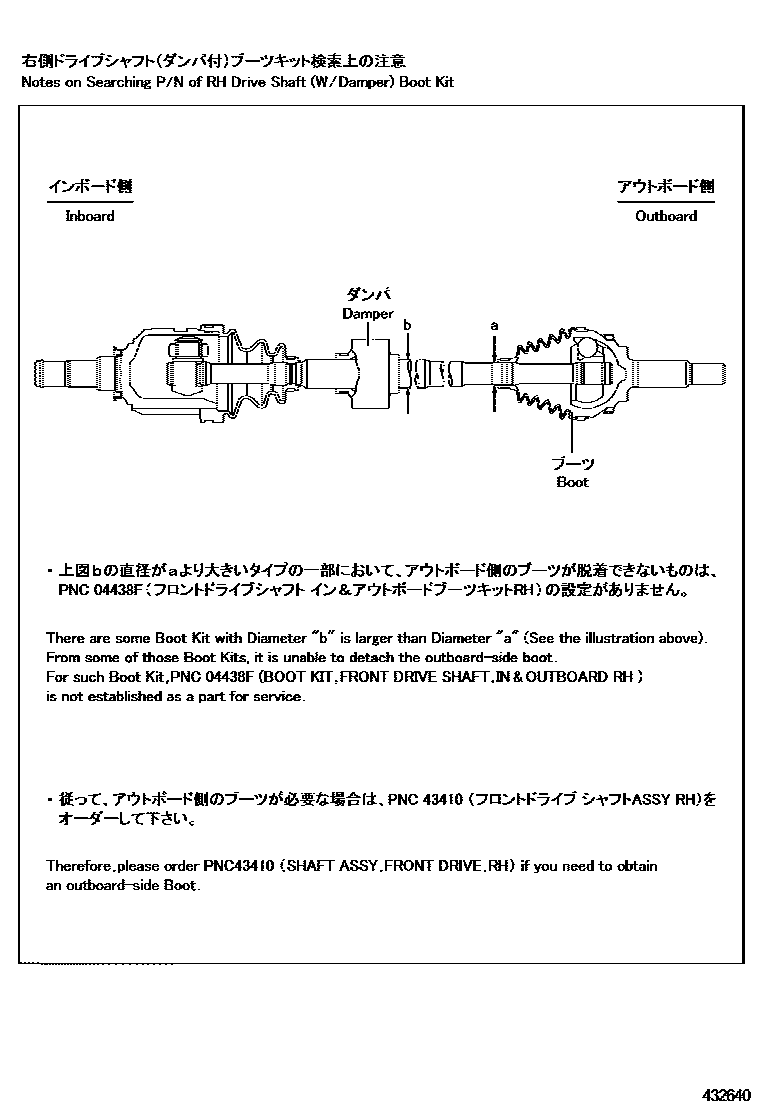

Toyota COROLLA Front Drive Shaft — Figure 4302
Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-01080 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-01020 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-01090 · 04427-01100 · 04427-01111 · 04428-02610 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-01020 · 04437-01050 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-02270 |
| 43410 | Right front driveshaft assembly | 43410-02A01 · 43410-02A02 · 43410-02A03 · 43410-02A51 · 43410-02A52 · 43410-02A53 |
| 43410M | Front drive shaft right oil seal | 90311-35055 · 90311-35065 · 90311-35069 · 90311-35076 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-01030 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-01040 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-01040 |
| 43420 | Left front drive shaft assembly | 43420-02B00 · 43420-02B01 · 43420-02B80 · 43420-02B81 · 43420-02B90 · 43420-02B91 · 43420-02C00 · 43420-02C01 · 43420-02C10 · 43420-02C11 · 43420-02E50 · 43420-02E51 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-01030 |
| 43420H | Front drive shaft left oil seal | 90311-35066 · 90311-35068 · 90311-35075 · 90311-35080 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-0R080 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-0R070 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-0R080 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-0R070 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-01040 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-01030 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-01040 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-01030 · 42345-02330 |
| 43474D | Right front driveshaft shock absorber | 43474-01021 |
| 43474E | Left front driveshaft shock absorber | 43474-02430 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-02871 |
