Toyota COROLLA Water Pump — Figure 1601

Toyota COROLLA EPC diagram 1601, Water Pump, with 2 images and 3 PNC and OE references.

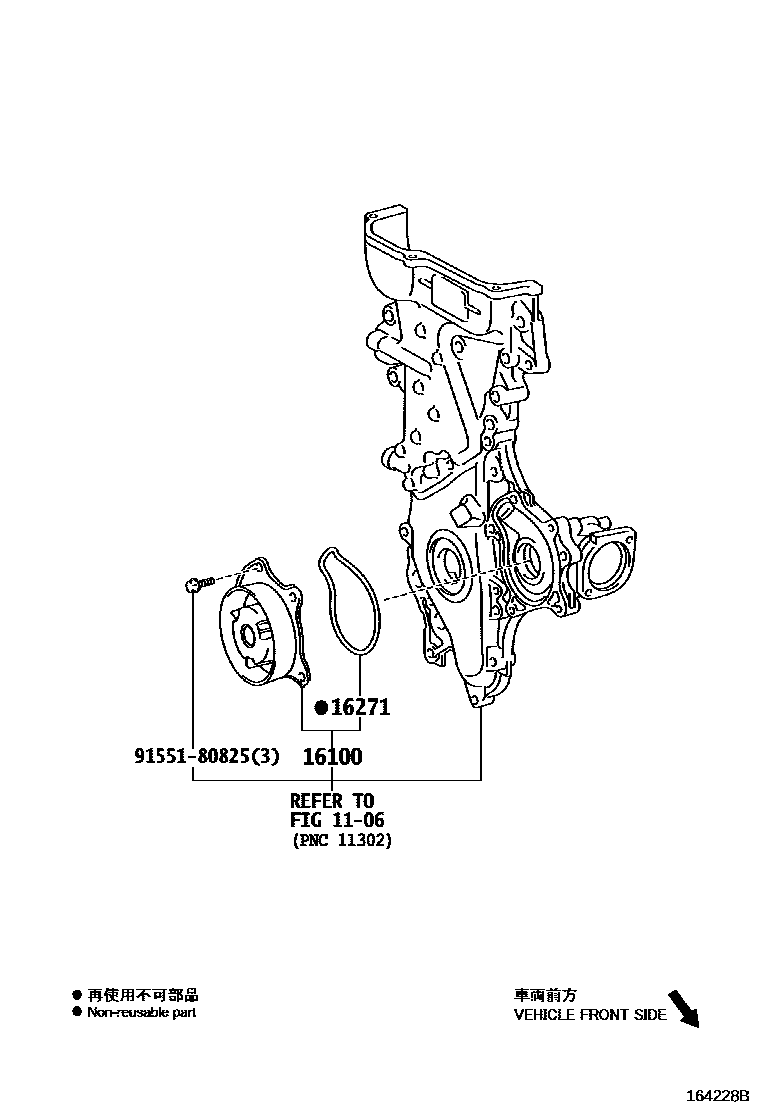

Toyota COROLLA Water Pump EPC diagram — 164228B
Water Pump — 164228B (201306 – 999999)

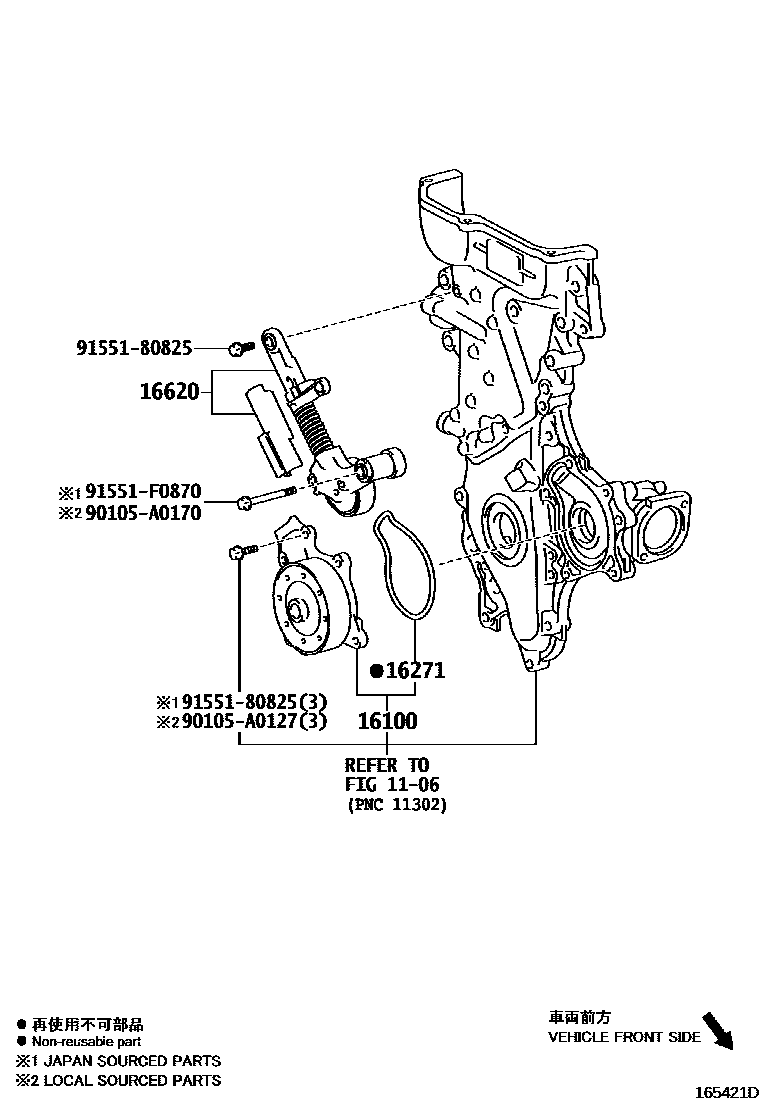

Toyota COROLLA Water Pump EPC diagram — 165421D
Water Pump — 165421D (201608 – 999999)

PNC and OE references

PNCPart nameOE numbers
16100Engine water pump assembly16100-09560 · 16100-09620 · 16100-39466 · 16100-39565
16271water pump gasket16271-37010 · 16271-37030
16620Poly V-belt tensioner assembly16620-0T010
