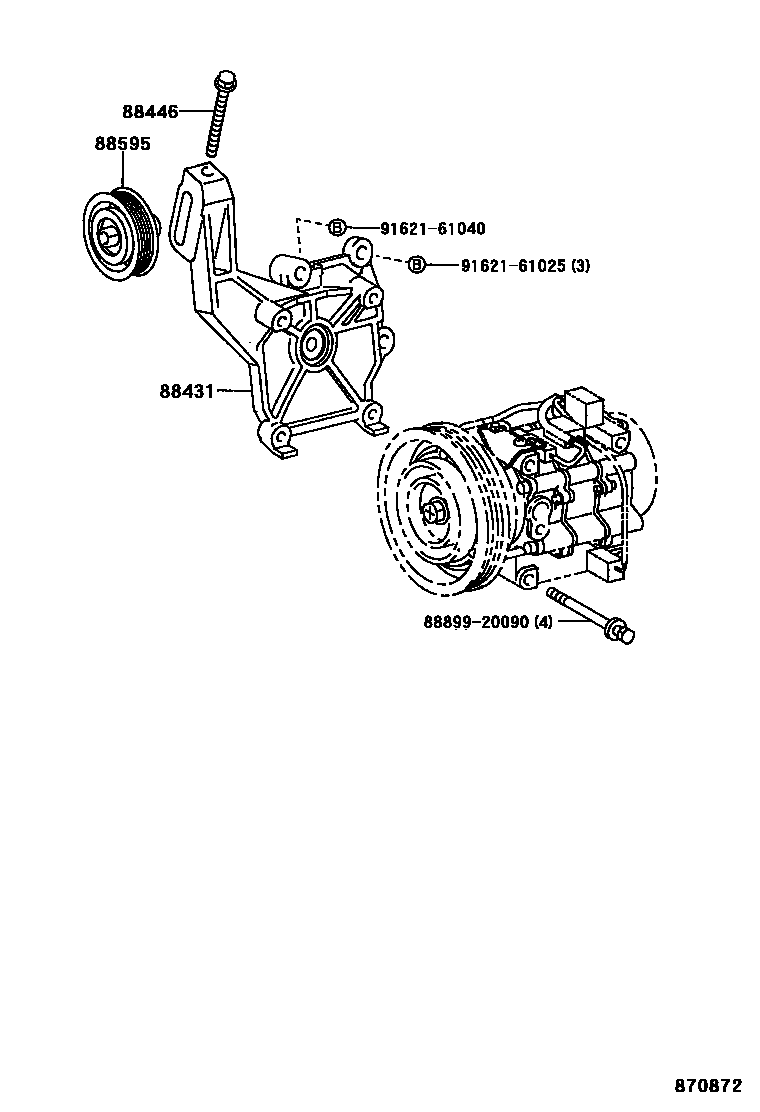

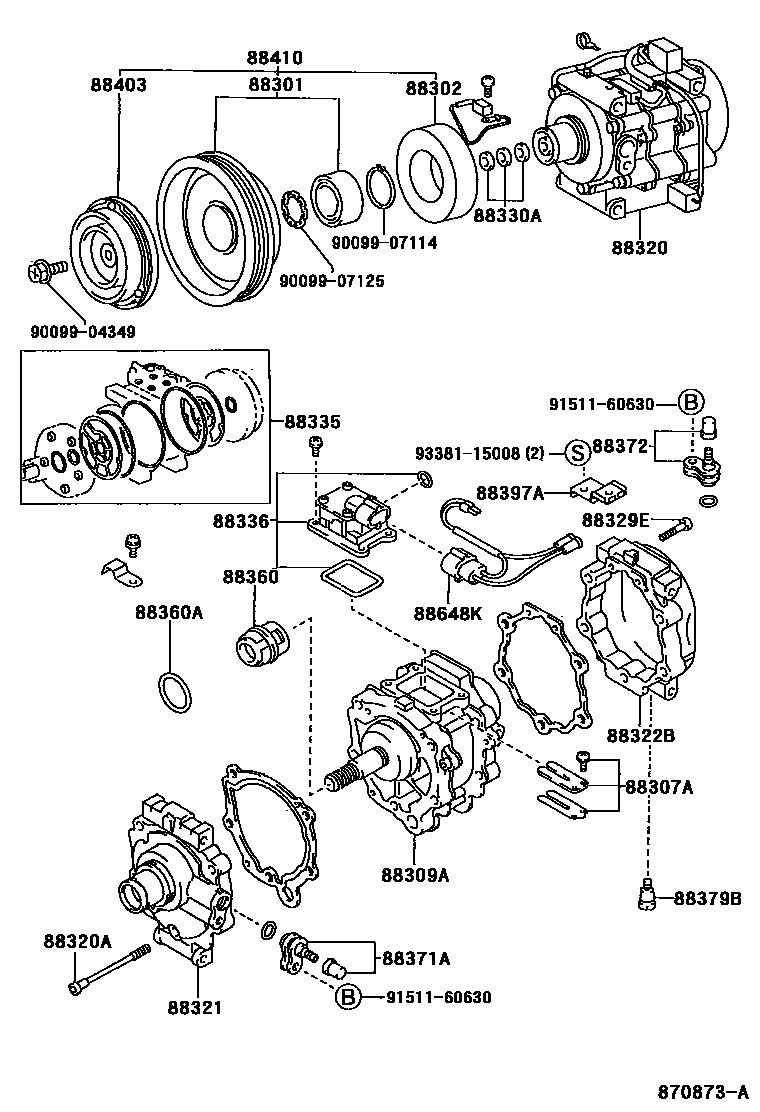

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-1A040 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-1A040 |
| 88307A | Valve reed sub-assembly | 88307-12050 |
| 88309A | Compressor pump sub-assembly | 88309-12110 |
| 88320 | Cooler Compressor Assembly | 88320-1A440 |
| 88320A | Through bolt | 88329-16010 |
| 88321 | Cooler compressor cylinder head | 88321-12140 |
| 88322B | oil separator housing | 88322-12100 |
| 88329E | No. 1 compressor bolt | 88329-16020 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88335 | Overhaul gasket assembly | 88335-12110 |
| 88336 | compressor sensor | 88336-16010 |
| 88360 | Cooler compressor shaft seal assembly | 88360-12100 |
| 88360A | Compressor seal ring | 90096-90022 |
| 88371A | suction valve | 88376-12010 |
| 88372 | Drain valve | 88376-12020 |
| 88379B | Pressure reducing valve | 88379-12050 |
| 88397A | Compressor clip | 88397-16030 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-1A010 |
| 88410 | Magnetic Clutch Assembly | 88410-1A050 |
| 88431 | Compressor No. 1 mounting bracket | 88431-12500 |
| 88446 | Idler gear bolt | 88446-12030 |
| 88595 | Cooler compressor idler pulley | 88440-17010 |
| 88648K | Sensor wiring harness sub-assembly | 88648-12640 |
