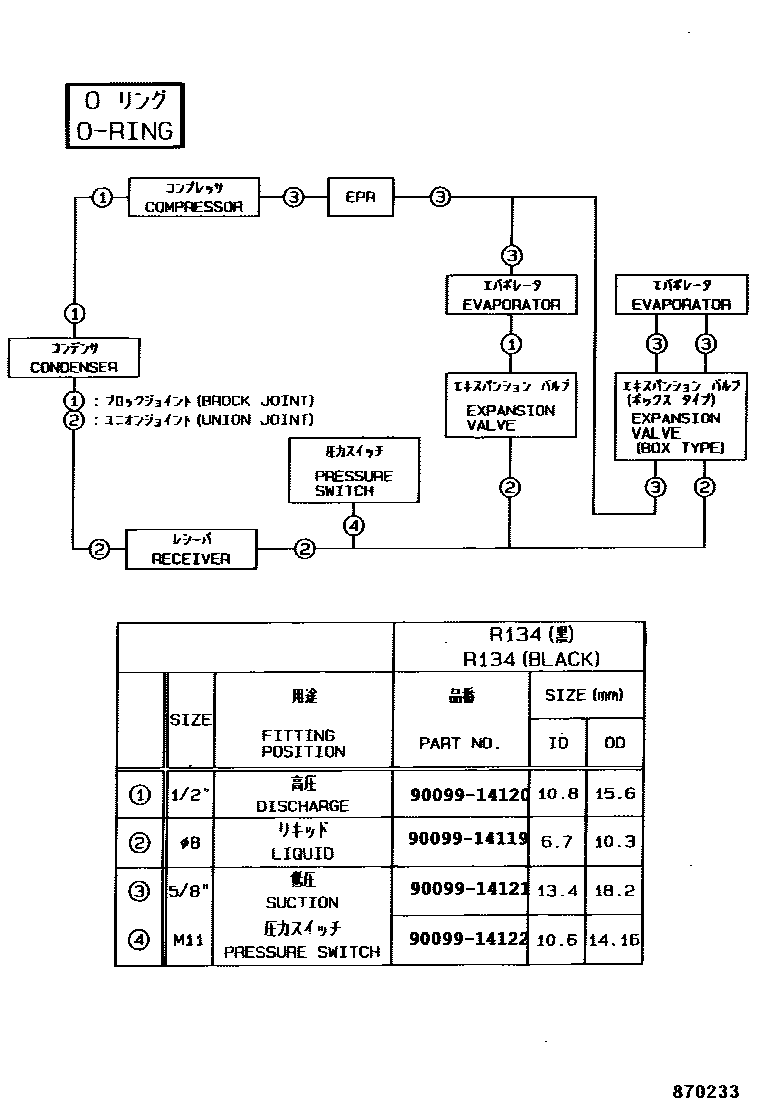

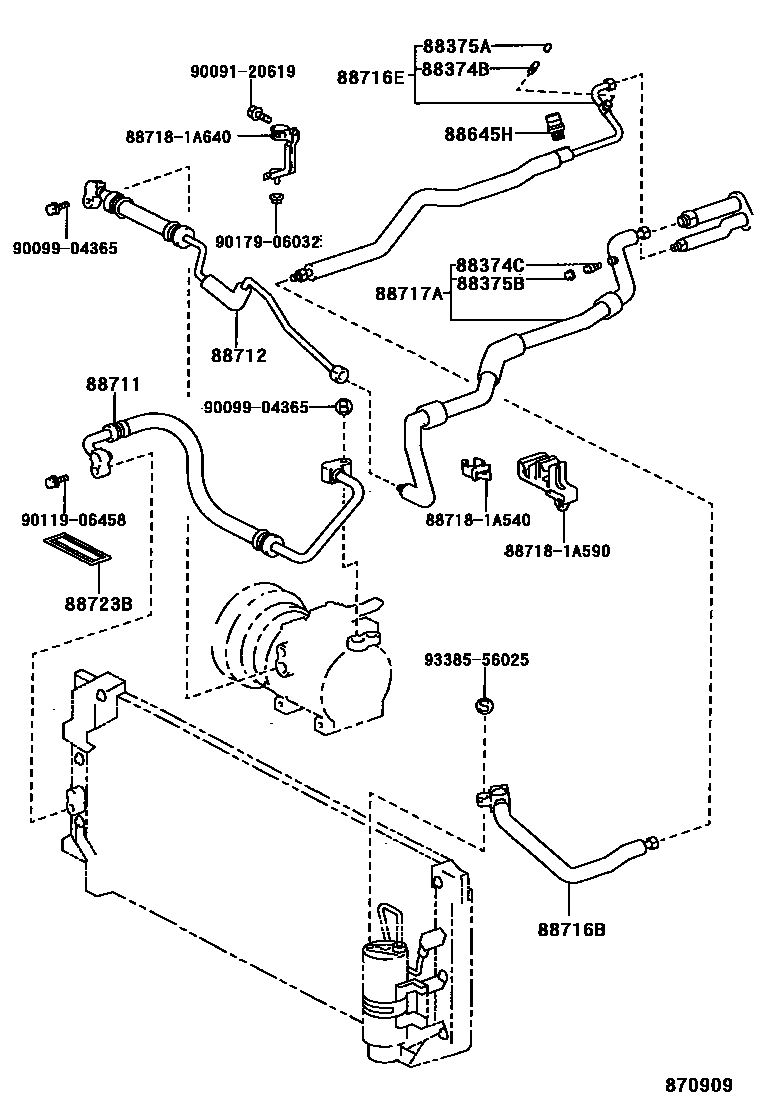

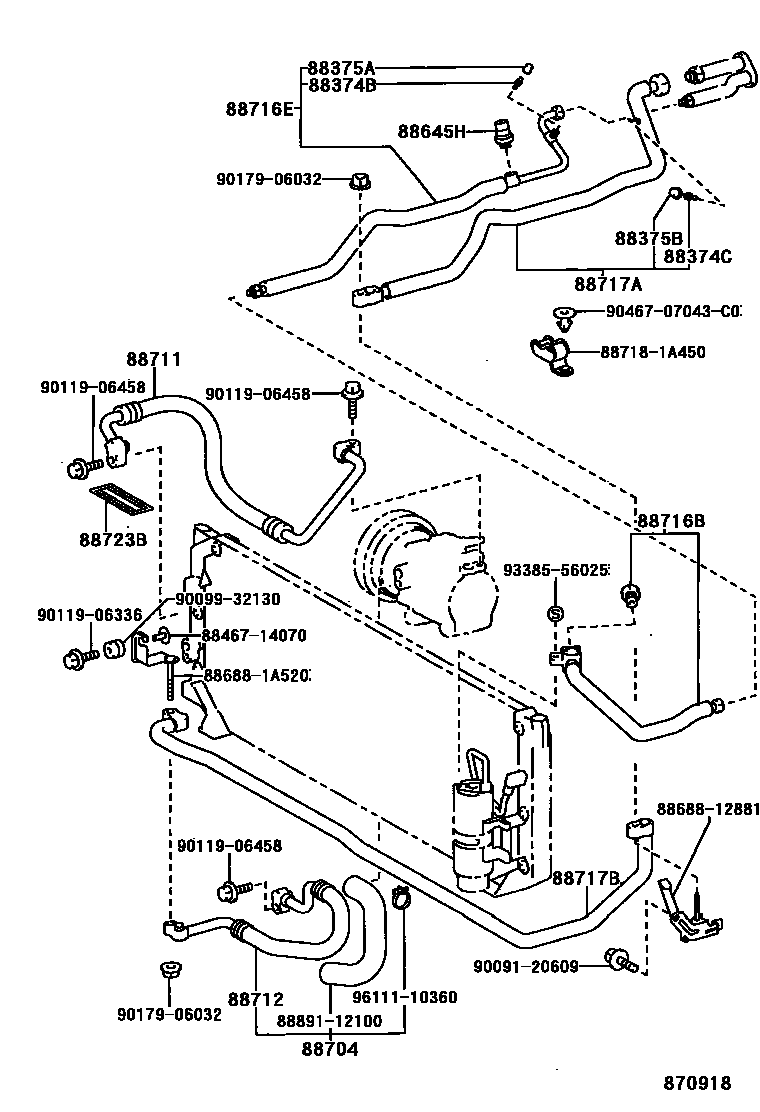

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 4 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375A | Repair valve cover (for cooler tube) | 88375-30280 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88453A | cooling fan | 88453-12080 |
| 88454A | fan cover | 88454-12150 |
| 88460 | Air conditioning condenser assembly | 88460-12440 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-12100 |
| 88467A | No. 2 air conditioning condenser buffer pad | 88467-12110 |
| 88470 | Cooler reservoir and dryer assembly | 88471-60010 |
| 88472 | No. 1 liquid storage tank bracket | 88473-12080 |
| 88550 | Blower motor assembly (for condenser) | 88550-12150 |
| 88590 | Blower assembly with hood | 88590-12210 |
| 88645H | No. 1 pressure switch | 88645-20050 |
| 88704 | Oil suction hose sub-assembly | 88704-12490 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-1A160 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-1A130 · 88712-1A460 |
| 88716A | Cooler refrigerant liquid pipe A | 88726-12410 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-1A240 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-1A250 |
| 88717A | Cooler refrigerant suction pipe A | 88717-12760 · 88717-1A020 |
| 88717B | Cooler refrigerant suction pipe B | 88717-12830 |
| 88723B | Cooler maintenance warning label | 88723-12120 |
