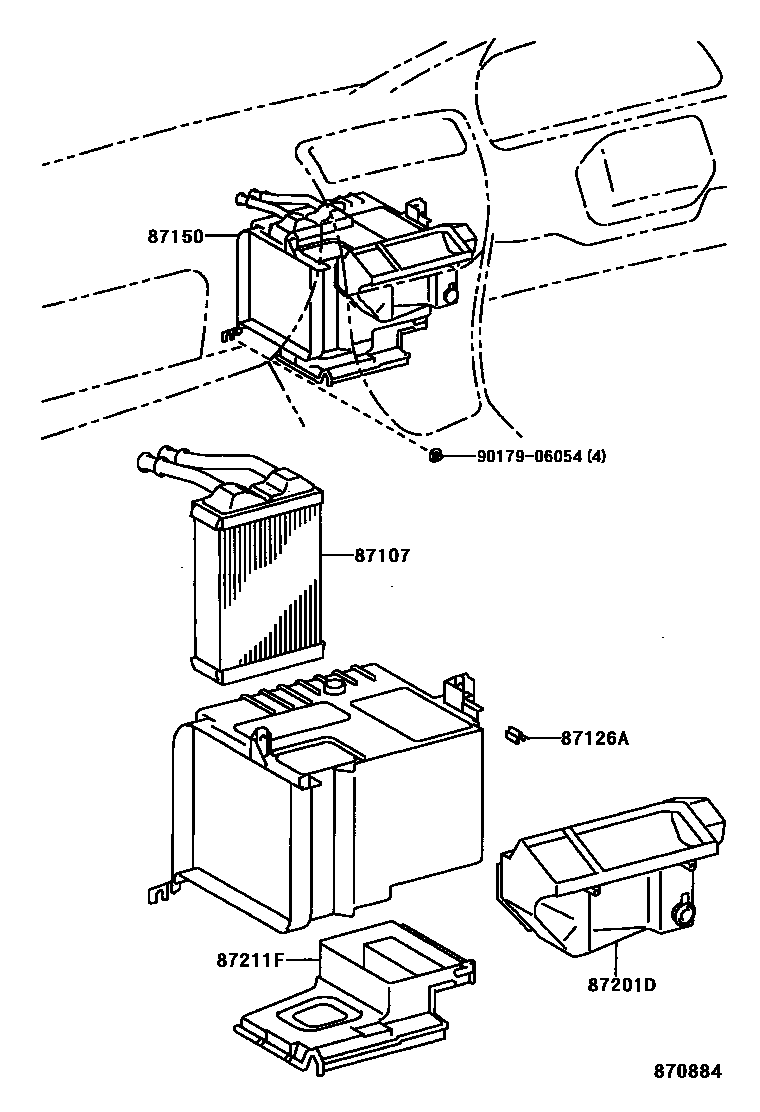

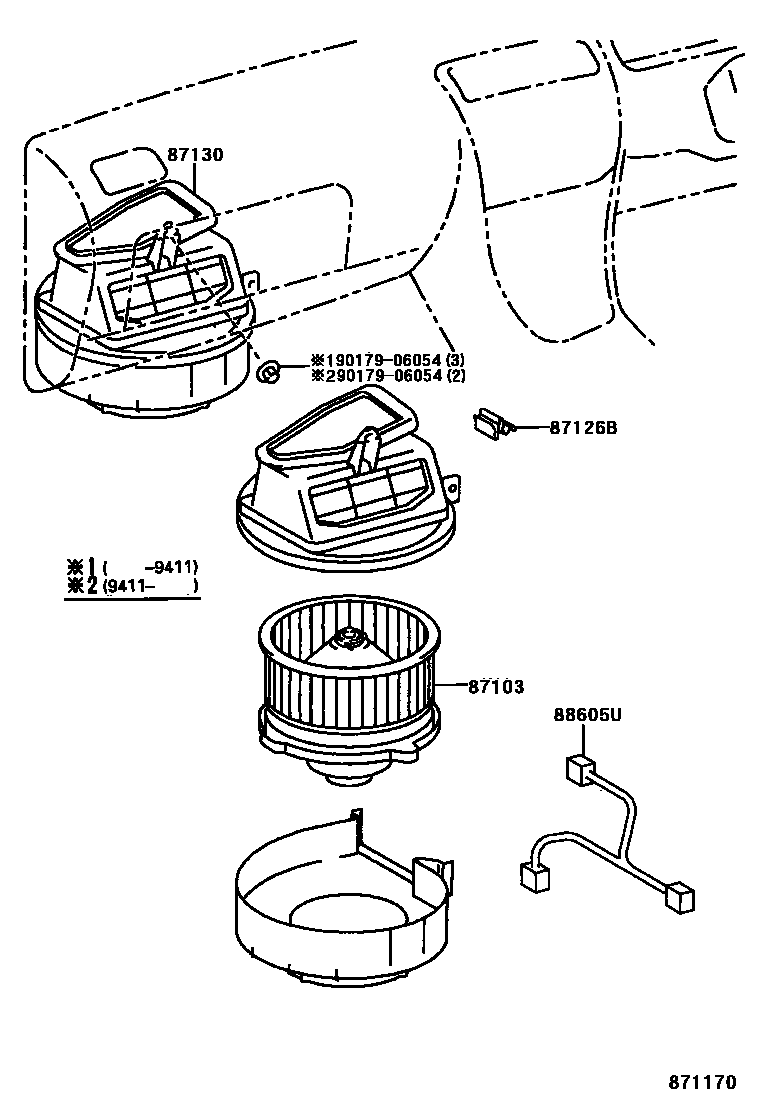

Toyota COROLLA 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712
Toyota COROLLA EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87103 | Heater blower motor sub-assembly with fan | 87103-12030 |
| 87107 | Heater radiator device sub-assembly | 87107-12380 |
| 87126A | heater control clip | 87126-12050 |
| 87126B | heater control clip | 87126-12040 |
| 87130 | Front heater blower assembly | 87130-12280 · 87130-12281 |
| 87150 | Heater radiator assembly | 87150-12570 · 87150-12571 · 87150-12860 |
| 87201D | Air duct sub-assembly | 87201-12300 |
| 87211F | air duct | 87211-12160 |
| 88605U | Air conditioning wiring harness sub-assembly | 88605-1E870 |
