Toyota COROLLA 仪表 — Figure 8301

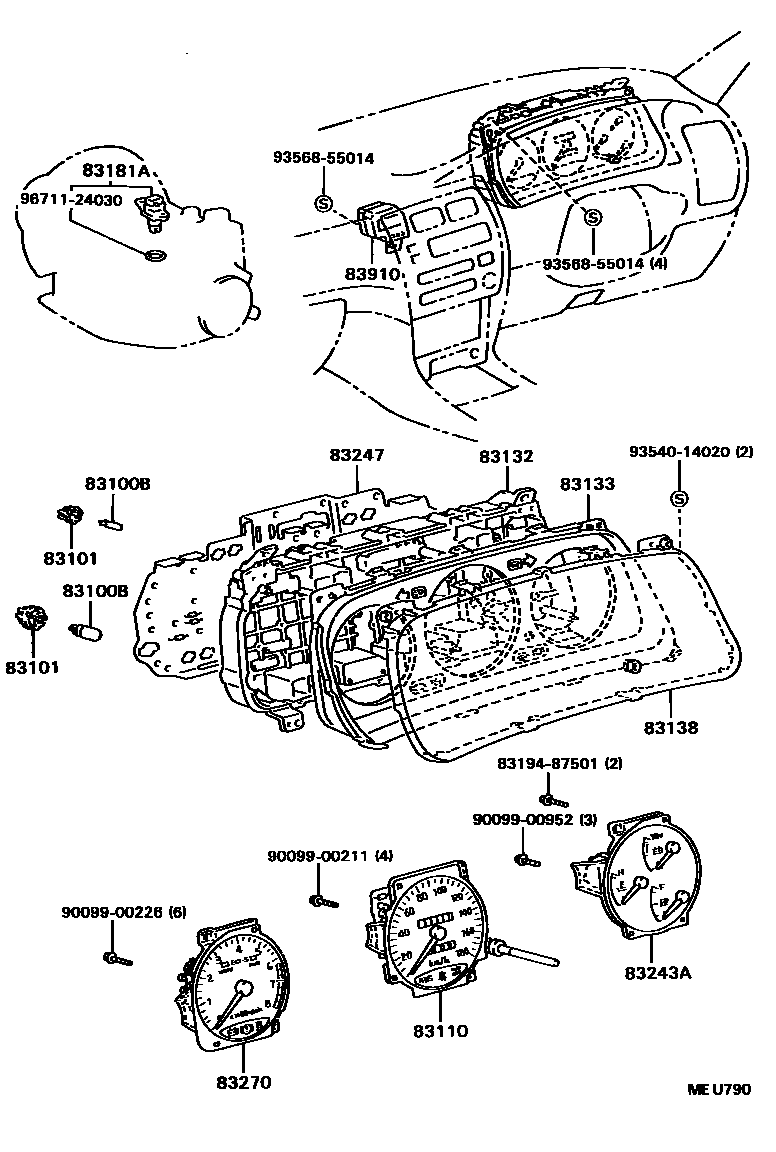

Toyota COROLLA EPC diagram 8301, 仪表, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100B | Combination instrument bulb No. 1 | 83109-12030 · 83119-24430 · 83119-32010 · 90981-11018 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14030 · 83101-14040 · 83101-32020 |
| 83110 | Speedometer assembly | 83110-1H180 |
| 83132 | Instrument cluster housing | 83132-1A670 |
| 83133 | Combined instrument panel No. 1 | 83133-1H130 |
| 83138 | speedometer glass | 83138-1A130 |
| 83181A | speedometer sensor | 83181-12020 |
| 83243A | Fuel gauge sub-assembly | 83243-1H251 |
| 83247 | Instrument circuit board | 83247-1K010 · 83247-1K011 |
| 83270 | Engine tachometer assembly | 83242-1H250 |
| 83910 | clock assembly | 83910-12460 · 83910-12480 |
