Toyota COROLLA 线束和卡夹 — Figure 8202
Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 8 images and 22 PNC and OE references.

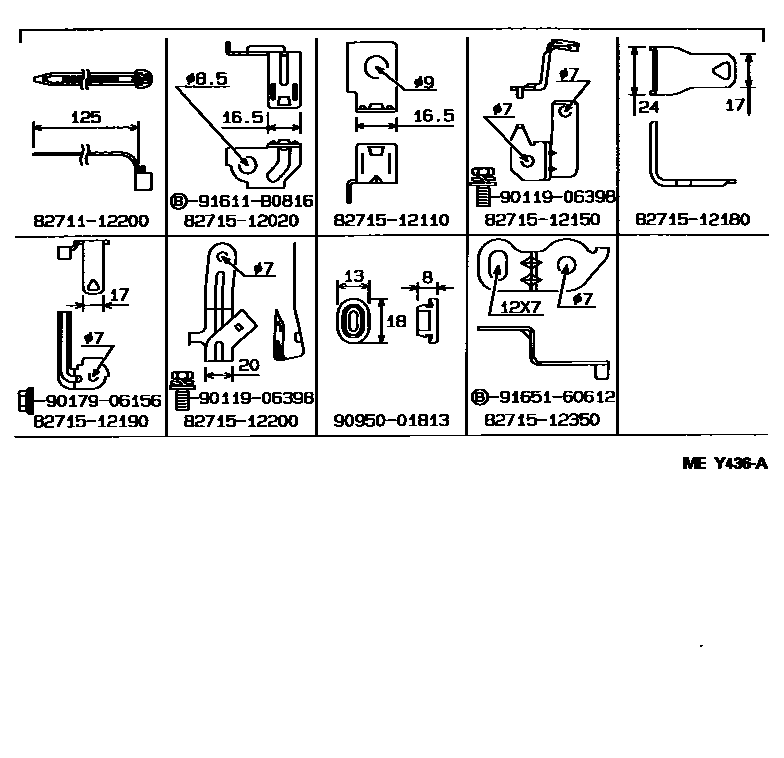

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

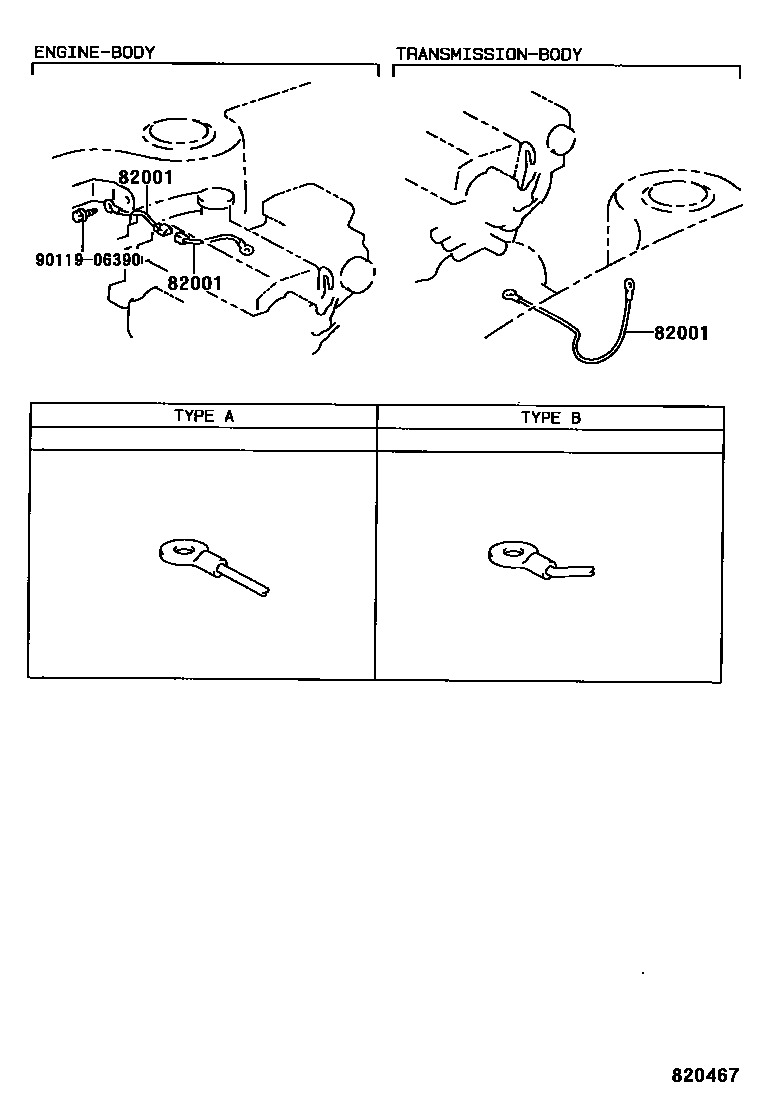

| 82001 | Connection cable No. 1 | 90980-07206 · 90980-07299 · 90980-07351 · 90980-07384 |
| 82028 | Front panel wiring harness sub-assembly | 82028-12050 |

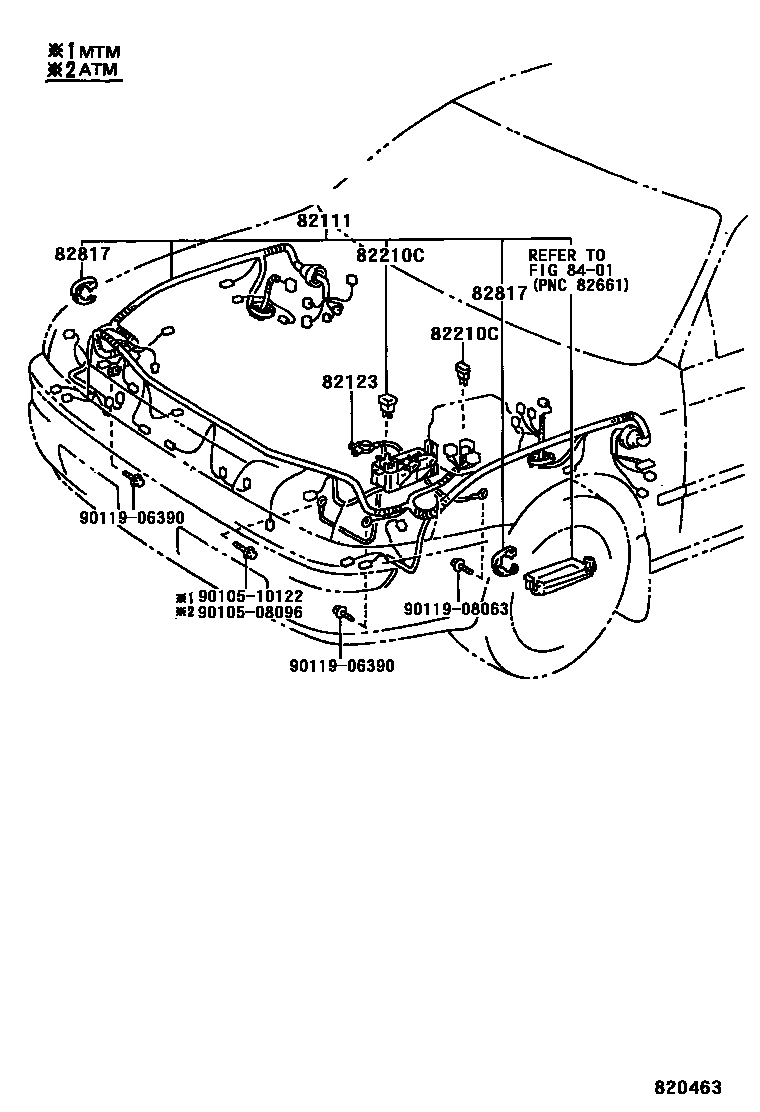

| 82111 | Engine room main wiring harness | 82111-1H130 · 82111-1H131 · 82111-1H140 · 82111-1H141 · 82111-1H450 |

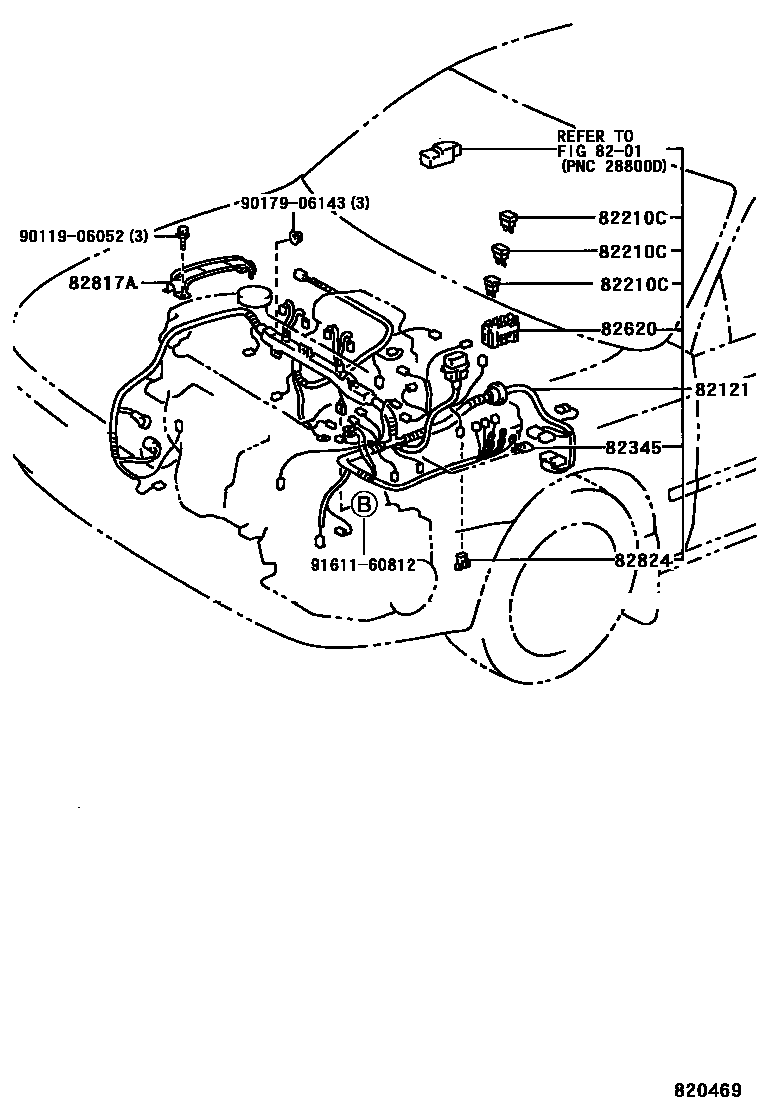

| 82121 | Engine wiring harness | 82121-1L100 · 82121-1L101 · 82121-1L110 · 82121-1L111 · 82121-1N010 · 82121-1N020 |
| 82123 | Engine No. 3 wiring harness | 82123-12220 · 82123-12230 |

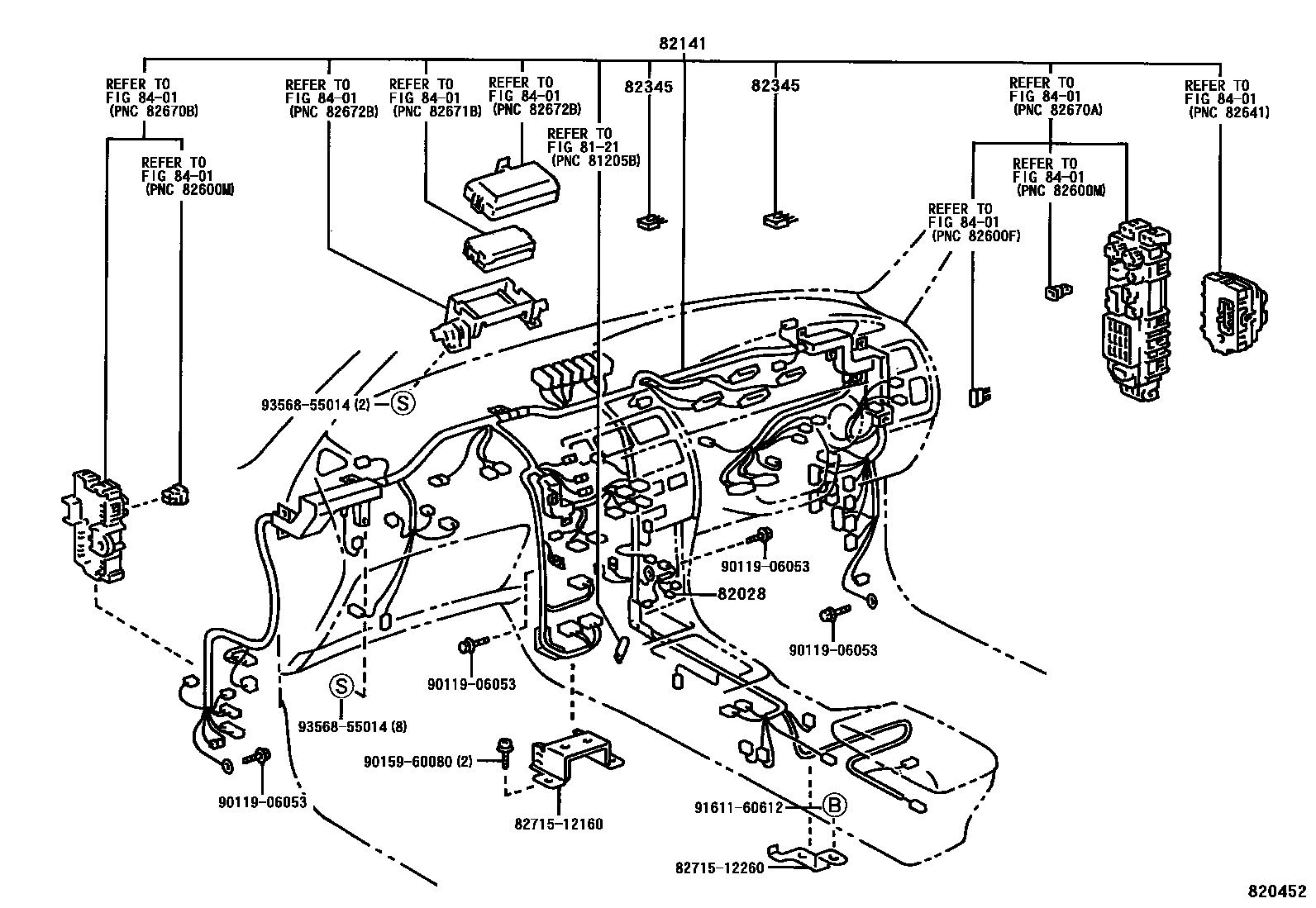

| 82141 | Dashboard wiring harness | 82141-1H310 · 82141-1H311 · 82141-1L260 |
| 82142 | Instrument panel wiring harness No. 2 | 82142-12250 · 82142-12260 |

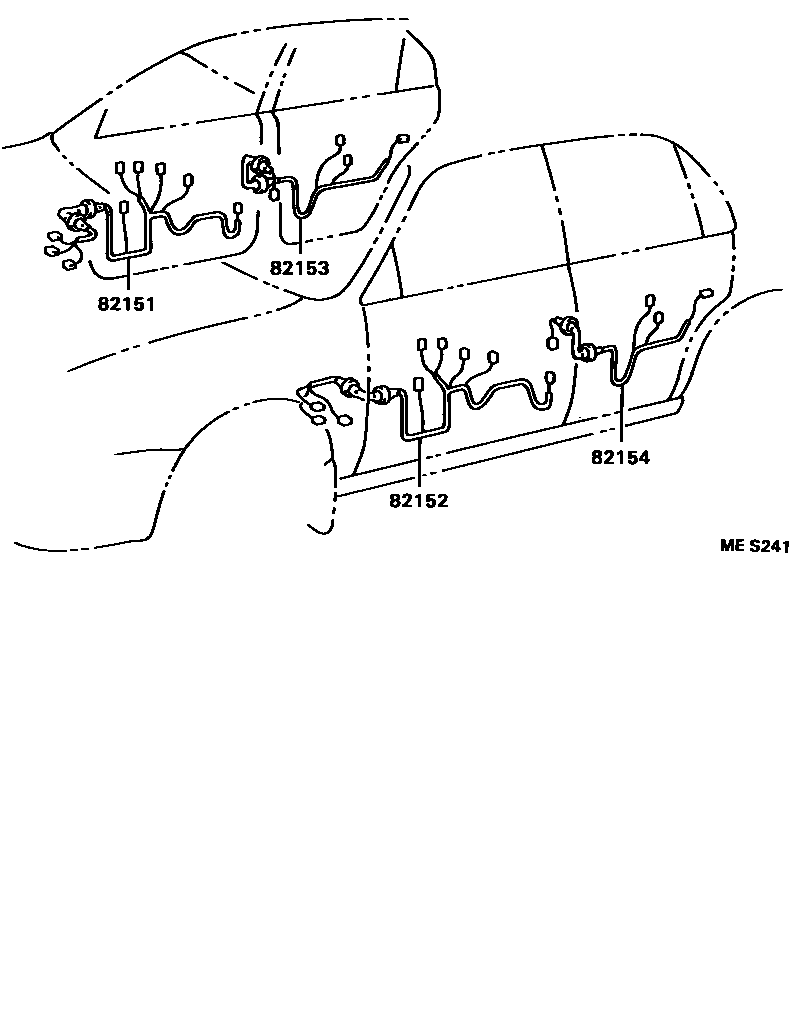

| 82151 | Right front door wiring harness | 82151-1A380 · 82151-1A390 |
| 82152 | Left front door wiring harness | 82151-1A390 · 82152-1A200 |
| 82153 | Rear door wiring harness No. 1 | 82153-12210 · 82153-12300 |
| 82154 | Rear door wiring harness No. 2 | 82154-12210 · 82154-12300 |

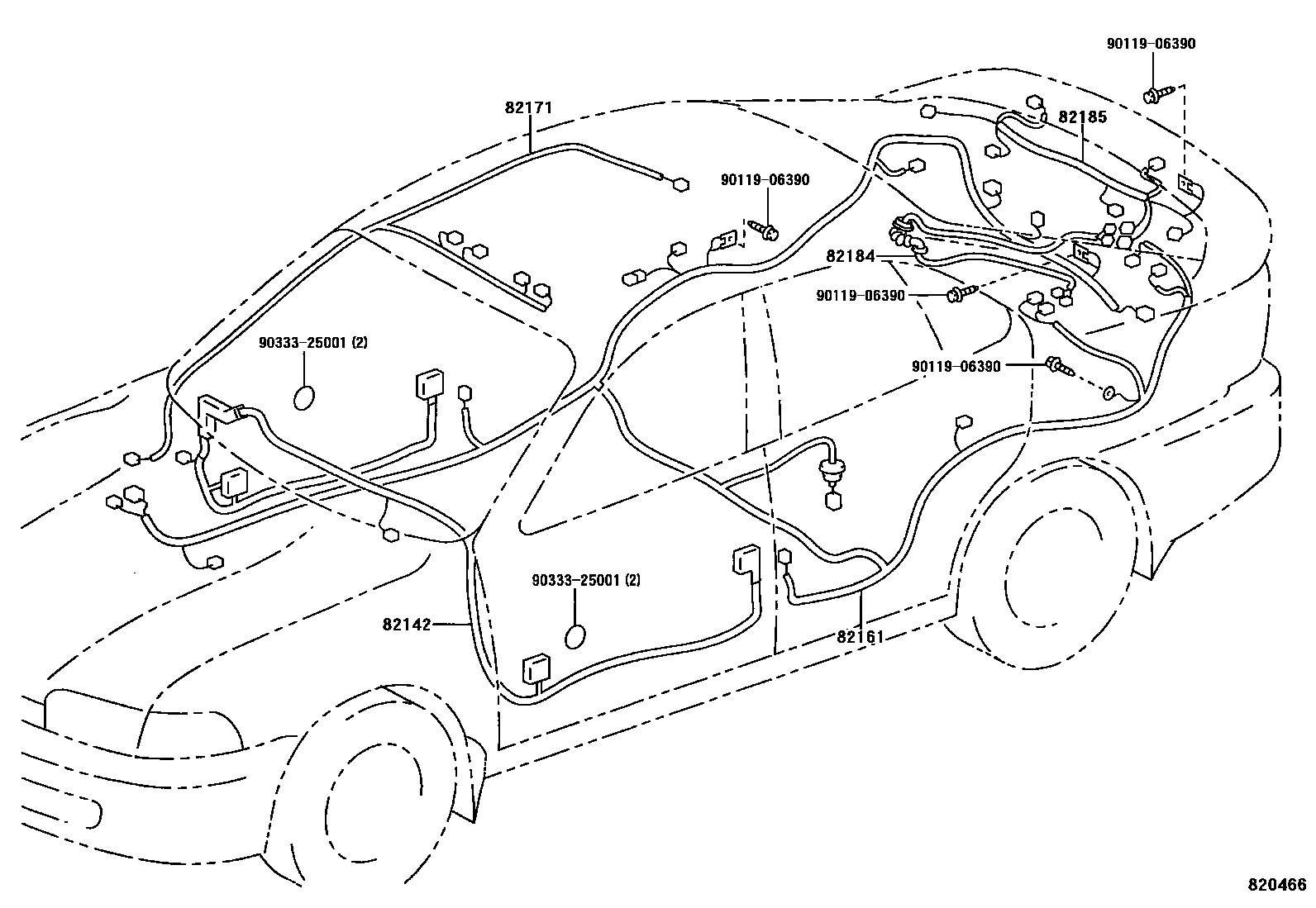

| 82161 | floor wiring harness | 82161-1L160 · 82161-1L161 · 82161-1L162 · 82161-1L180 · 82161-1L181 · 82161-1L182 |
| 82171 | Roof No. 1 wiring harness | 82171-12460 · 82171-12510 |
| 82184 | Rear door No. 1 wiring harness | 82184-12470 |
| 82185 | Rear door wiring harness No. 2 | 82185-12590 |
| 82210C | fuse | 90982-08188 · 90982-08228 · 90982-08246 · 90982-08257 |
| 82345 | diode | 82345-32020 |
| 82620 | Fuse box assembly | 82620-12080 |
| 82817 | No. 1 wire harness protection device | 82817-1A090 |
| 82817A | No. 2 wire harness protection device | 82817-1A070 |
| 82824 | Harness connector | 82824-20050 |
| 82991 | Fuse repair line | 82991-12050 |
