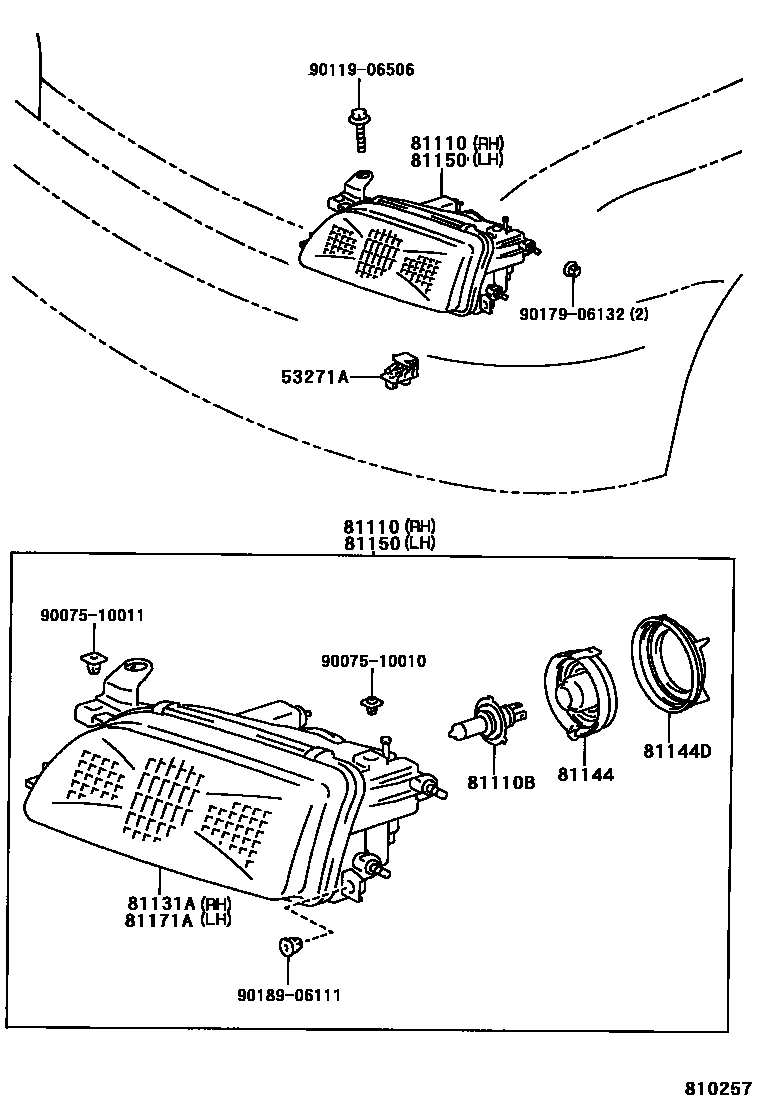

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53271A | Headlight mounting bracket | 53271-12060 |
| 81110 | Right headlight assembly | 81110-1E330 |
| 81110B | Bulb (for headlight No. 1) | 90981-22004 |
| 81131A | Right headlight assembly | 81130-1E330 |
| 81144 | No. 1 headlight cover | 90075-99058 |
| 81144D | headlight lock cover | 90075-99057 |
| 81150 | Left headlight assembly | 81150-1E210 |
| 81171A | Left headlight assembly | 81170-1E210 |
