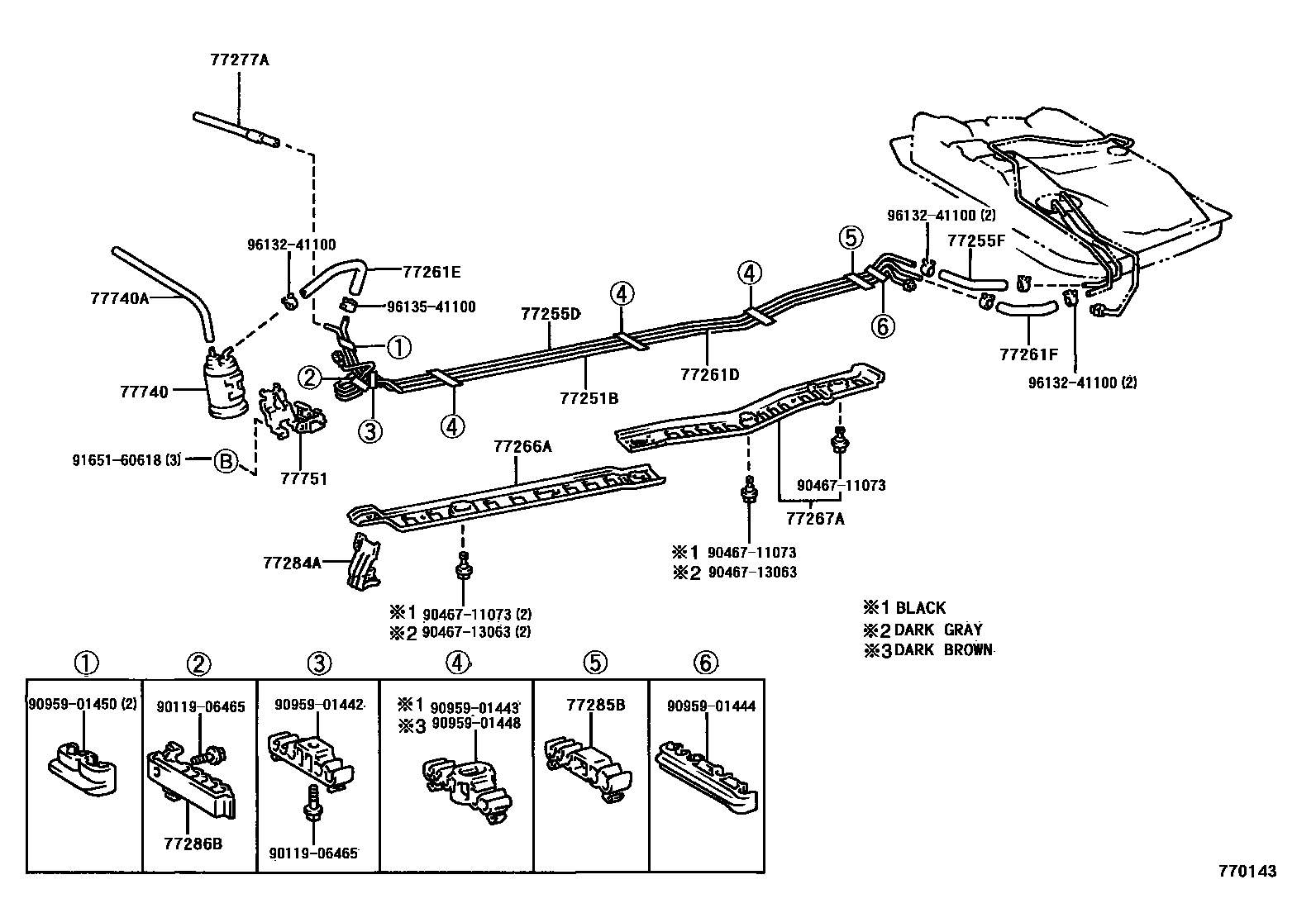

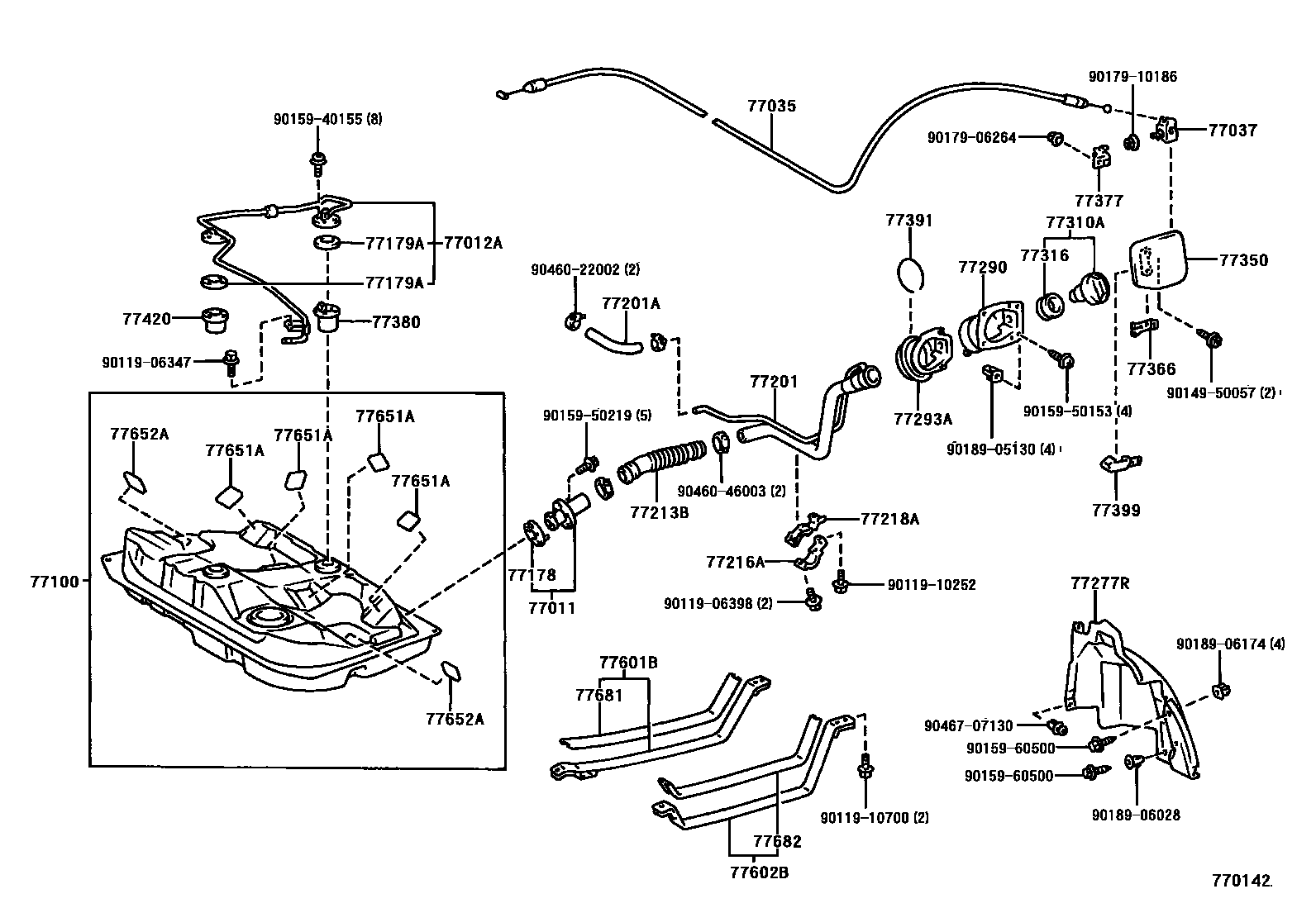

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 2 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-12090 |
| 77012A | No. 1 fuel tank breather pipe sub-assembly | 77012-12070 · 77012-12140 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-12190 · 77035-12191 |
| 77037 | Fuel filler cap lock sub-assembly | 77037-12050 |
| 77100 | fuel tank assembly | 77001-12931 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-20030 |
| 77179A | fuel tank breather gasket | 77179-26010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-12500 |
| 77201A | No. 1 fuel hose (for fuel tank inlet pipe) | 95311-13022 |
| 77213B | Fuel tank to filler pipe hose | 77213-12160 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-12070 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-12030 |
| 77251B | main fuel pipe | 77251-12570 |
| 77255D | fuel return pipe | 77255-12510 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-12370 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 77259-12200 |
| 77266A | No. 1 fuel line protection device | 77266-12080 |
| 77267A | No. 2 fuel pipe protection device | 77267-12100 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 90447-12139 |
| 77277R | Fuel tank filler pipe protection device | 77277-12130 |
| 77284A | No. 3 fuel pipe protection device | 77284-12030 |
| 77285B | No. 1 fuel pipe clamp with retaining ring | 77285-12020 |
| 77286B | No. 2 fuel pipe clamp with retaining ring | 77285-12040 · 77286-12020 · 77286-12040 |
| 77290 | Fuel tank filler pipe cover assembly | 77291-12090 |
| 77293A | No. 3 fuel tank filler pipe cover | 77293-12060 |
| 77310A | Fuel tank cap assembly | 77310-16011 |
| 77316 | fuel tank cap gasket | 77316-16010 |
| 77350 | Fuel filler cap assembly | 77350-12310 |
| 77366 | Fuel filler cap hinge spring | 77360-12050 |
| 77377 | Fuel filler cap lock retainer | 77377-20050 |
| 77380 | Fuel shut-off valve assembly | 77380-26010 |
| 77391 | fuel inlet ring | 77391-14020 |
| 77399 | Fuel tank cap hanger | 77399-12010 |
| 77420 | No. 2 fuel shut-off valve assembly | 77420-26010 |
| 77601B | No. 1 fuel tank right side band sub-assembly | 77601-12180 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-12130 |
| 77651A | No. 1 fuel tank liner | 77651-20090 · 77652-12100 |
| 77652A | No. 2 fuel tank liner | 77652-12100 |
| 77681 | Fuel tank right side strap seat | 77681-32060 · 77682-12030 |
| 77682 | Fuel tank left side strap seat | 77681-32060 · 77681-32070 |
| 77740 | Carbon canister assembly | 77740-12630 |
| 77740A | No. 1 fuel hose (for canister) | 90447-04147 |
| 77751 | Carbon canister base bracket | 77750-12100 |
