Toyota COROLLA 侧防护条 — Figure 7503

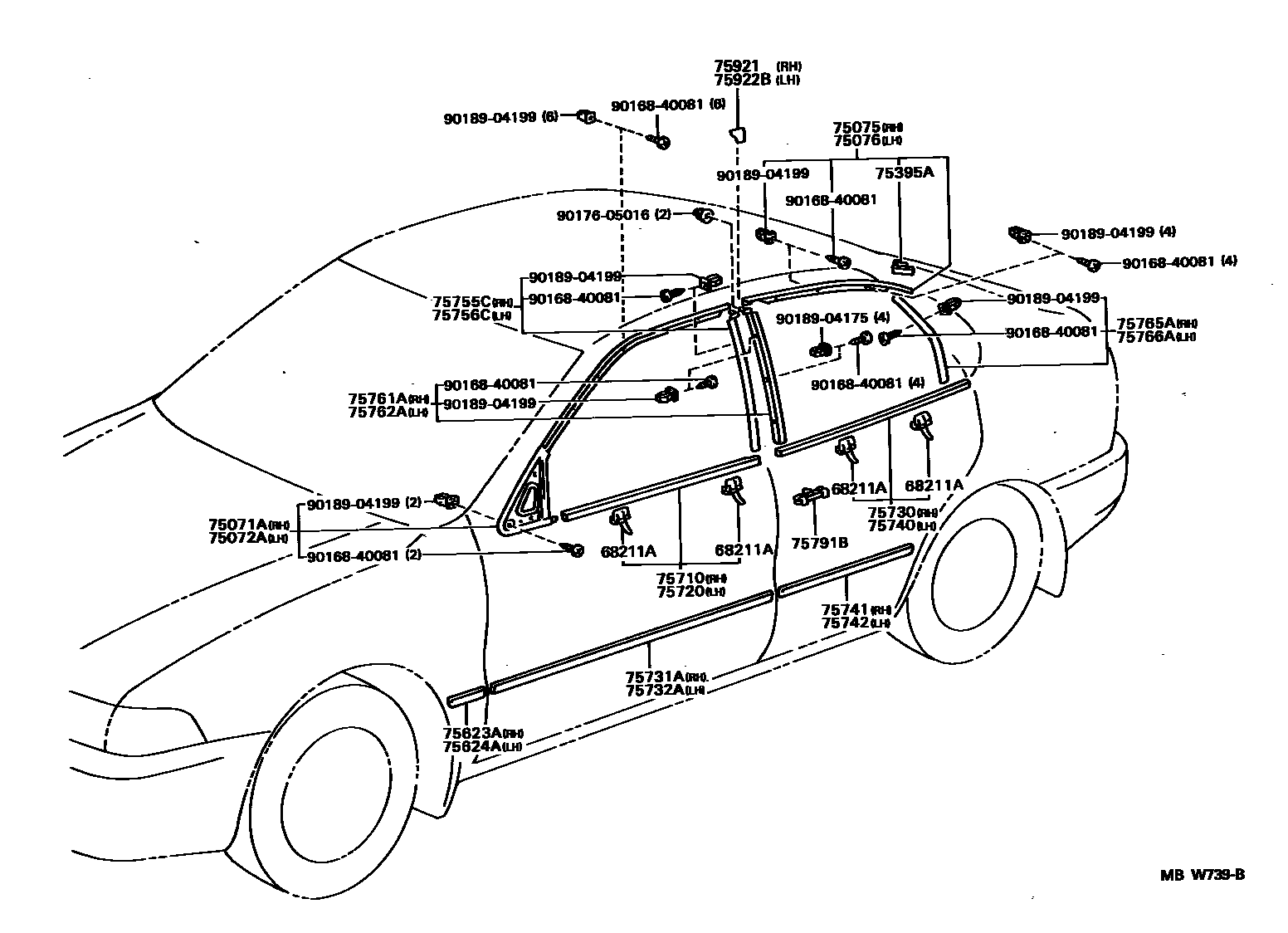

Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68211A | Door belt line protection strip clip | 68211-12180 · 68212-12020 |
| 75071A | Right front door outer protective strip sub-assembly | 75071-12010 |
| 75072A | Left front door outer protective strip sub-assembly | 75072-12010 |
| 75075 | Right rear door outer protective strip sub-assembly | 75075-12040 |
| 75076 | Left rear door outer protective strip sub-assembly | 75076-12070 |
| 75395A | No. 1 outer protective strip clip | 75395-12120 |
| 75710 | Right front door waistline protection strip assembly | 75710-12520 |
| 75720 | Left front door waistline protection strip assembly | 75720-12520 |
| 75730 | Right rear door waistline protection strip assembly | 75730-12240 |
| 75740 | Left rear door waistline protection strip assembly | 75740-12330 |
| 75755C | Right front door window frame rear protective strip | 75755-12090 |
| 75756C | Left front door window frame rear protective strip | 75756-12110 |
| 75761A | Right rear door window frame front protective strip | 75761-12040 |
| 75762A | Left rear door window frame front protective strip | 75762-12040 |
| 75765A | Right rear door window frame rear protective strip | 75077-12040 |
| 75766A | Left rear door window frame rear protective strip | 75078-12020 |
| 75791B | Waistline side protective strip clip | 75791-12060 |
| 75921 | No. 1 right side light-shielding film | 75921-12020 |
| 75922B | No. 1 left shading film | 75922-12020 |
