Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

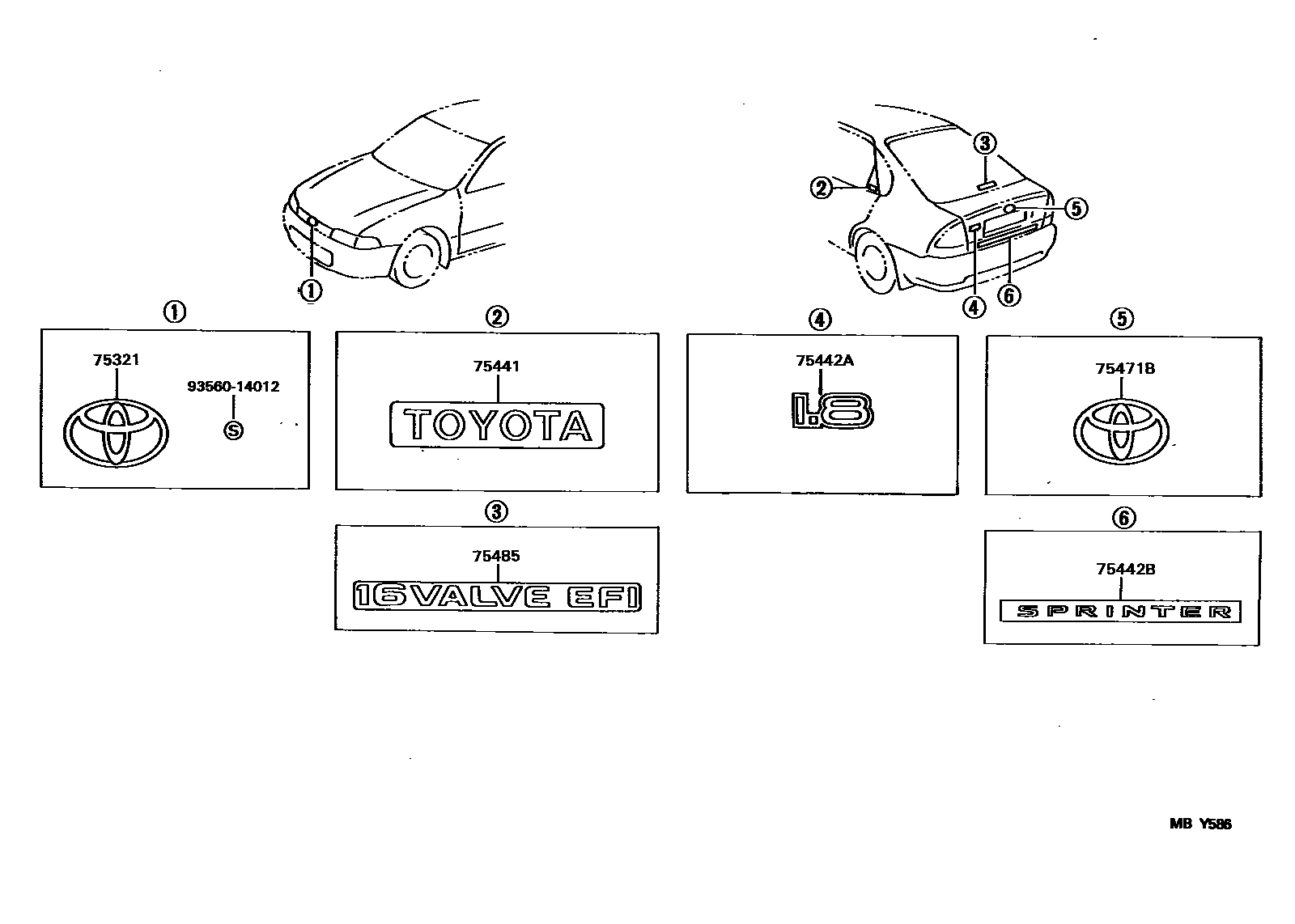

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75321 | Radiator grille or front plate | 75321-12380 |
| 75441 | No. 1 rear nameplate | 75473-12080 |
| 75442A | No. 2 nameplate on back door | 75442-1A320 |
| 75442B | No. 2 nameplate on back door | 75442-1A310 |
| 75471B | No. 1 nameplate on rear body | 75441-12710 |
| 75485 | Back window nameplate | 75485-12260 |
