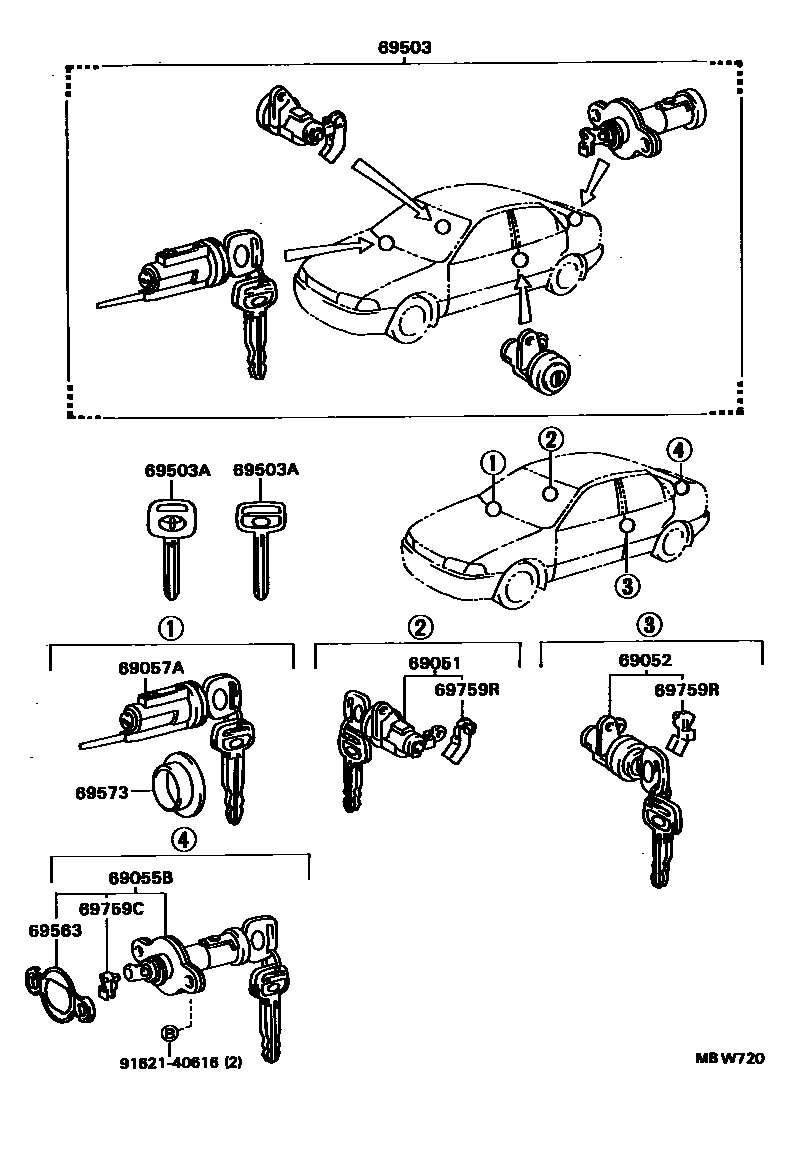

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-12420 |
| 69052 | Left door lock cylinder and key assembly | 69052-12420 |
| 69055B | Rear door lock cylinder and key assembly | 69055-1A070 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12200 |
| 69503 | Door lock cylinder components | 69005-1A800 |
| 69503A | external tooth key | 90999-00185 · 90999-00186 |
| 69563 | Rear door lock cylinder gasket | 69563-12090 |
| 69573 | Ignition switch lock cylinder gasket | 69573-12010 |
| 69759C | Back door lock cylinder buckle | 69759-24080 |
| 69759R | Front door lock cylinder buckle | 69759-12080 · 69759-12090 |
