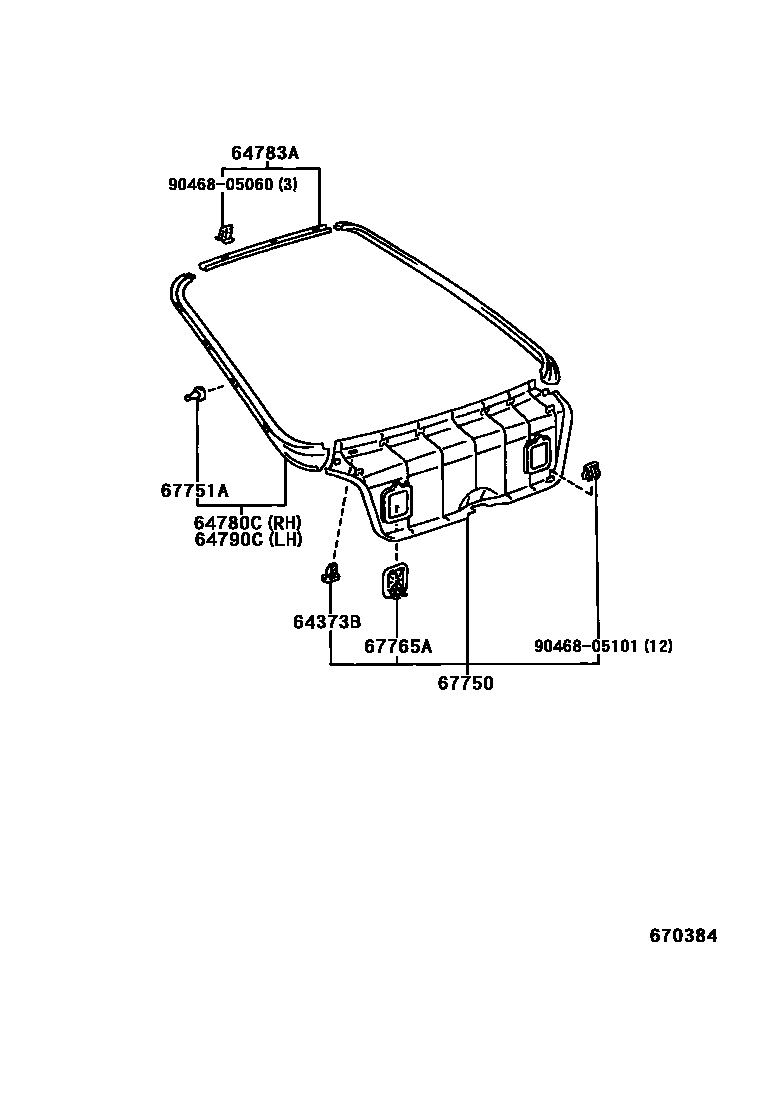

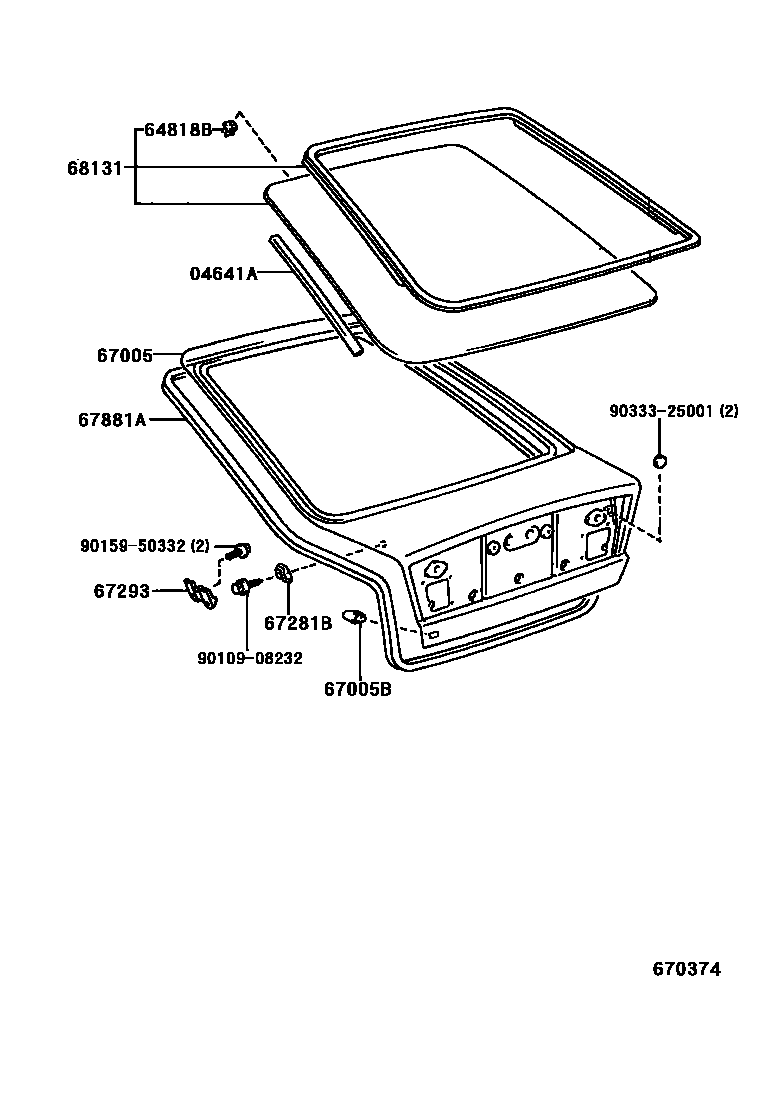

Toyota COROLLA 背门板和背门玻璃 — Figure 6708
Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04641A | Rear window glass adhesive sealing strip assembly | 64813-12030 |
| 64373B | Glove box decorative panel stopper | 64373-12070 |
| 64818B | No. 1 back door glass spacer | 64818-12010 |
| 67005 | Rear door panel sub-assembly | 67005-1A850 |
| 67005B | Cushion pad (for back door panel) | 64459-12030 |
| 67281B | Back door lower block | 67281-12061 |
| 67293 | Back door lower block cushion | 67293-12050 |
| 67751A | Clip (for rear door trim panel) | 90467-10084 |
| 67881A | Back door seal | 67881-12250 |
| 68131 | back door glass | 68131-1A470 · 68131-1A471 |
