Toyota COROLLA 后门车窗升降器和合页 — Figure 6707

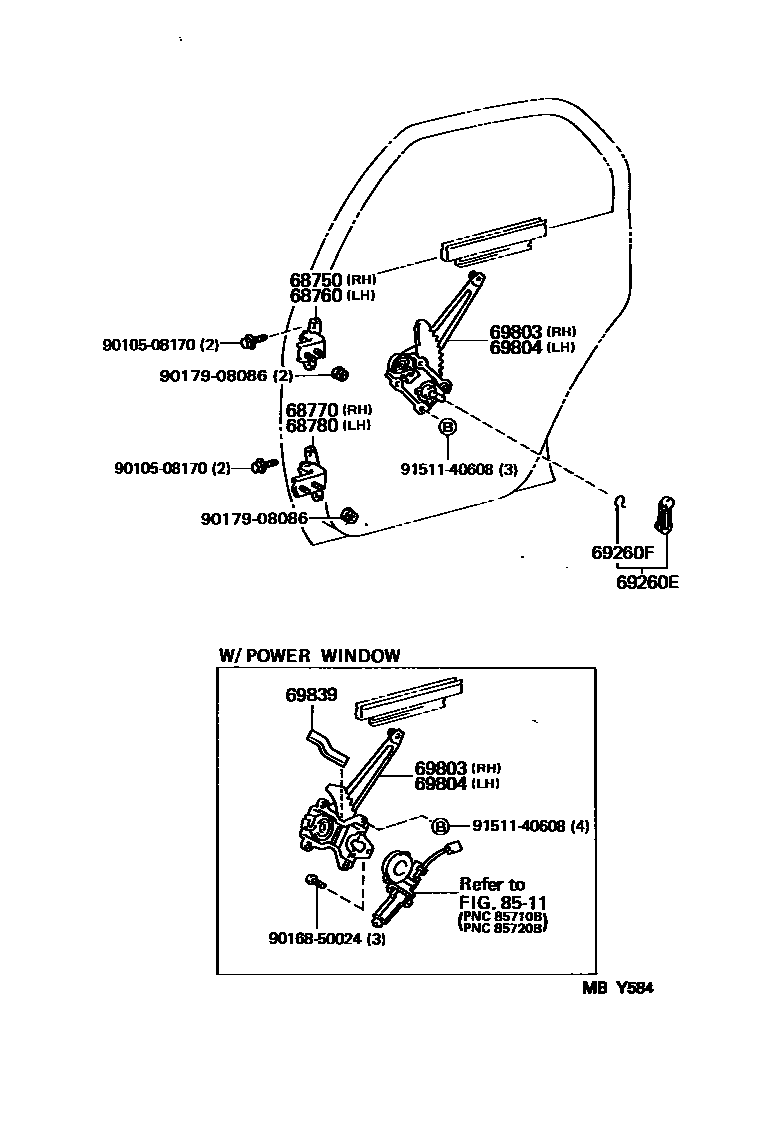

Toyota COROLLA EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-12070 |
| 68760 | Left rear door upper hinge assembly | 68760-12070 |
| 68770 | Right rear door lower hinge assembly | 68770-12080 |
| 68780 | Left rear door lower hinge assembly | 68780-12070 |
| 69260F | Shaft snap ring (for rear door window regulator handle) | 90520-01005 |
| 69803 | Right rear door window lifter sub-assembly | 69803-12100 · 69830-12250 |
| 69804 | Left rear door window lifter sub-assembly | 69804-12100 · 69840-12250 |
| 69839 | Rear door window regulator gasket | 69839-12010 |
