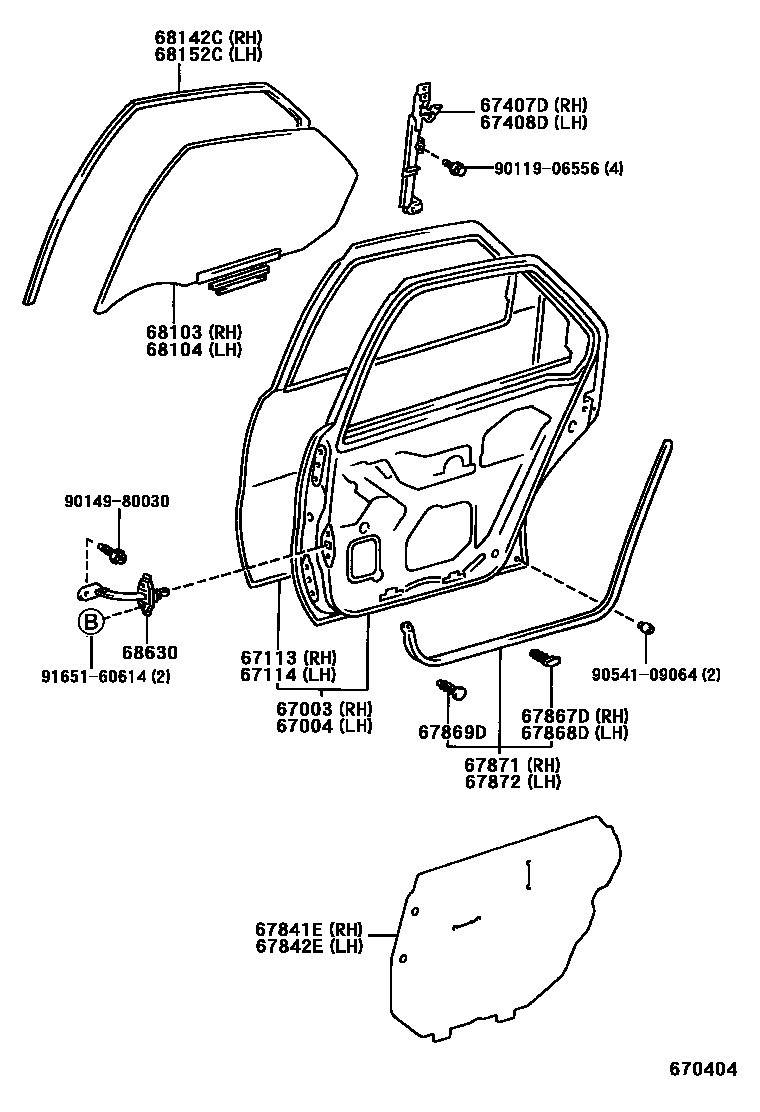

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-12721 |
| 67004 | Left rear door panel sub-assembly | 67004-12721 |
| 67113 | Right rear door outer panel | 67113-12250 |
| 67114 | Left rear door outer panel | 67114-12250 |
| 67407D | Right rear door window glass rear guide channel sub-assembly | 67407-12210 · 67407-12211 |
| 67408D | Left rear door window glass rear guide channel sub-assembly | 67408-12210 · 67408-12211 |
| 67487A | Right rear door rear rail bracket decorative strip | 67487-12140 |
| 67488A | Left rear door rear guide rail bracket decorative strip | 67488-12140 |
| 67499A | Rear door lower door frame bracket trim strip fixing | 67771-12050 |
| 67603D | Right rear door trim panel fixing | 67771-28020 |
| 67603E | Catch (for rear door trim panel) | 90467-09141 |
| 67604D | Left rear door trim panel fixing | 67771-28020 |
| 67841E | Right rear door access hole cover | 67841-12250 |
| 67842E | Left rear door access hole cover | 67841-12250 |
| 67867D | Right rear door seal strip fixing | 67867-12150 · 67868-12050 |
| 67868D | Left rear door seal strip fixing | 67867-12150 · 67868-12050 |
| 67869D | Car door seal strip clip | 67869-22010 |
| 67871 | Right rear door sealing strip | 67871-12350 |
| 67872 | Left rear door sealing strip | 67872-12350 |
| 68103 | Right rear door glass sub-assembly | 68103-12500 |
| 68104 | Left rear door glass sub-assembly | 68104-12510 |
| 68142C | Right rear door glass lift slot | 68142-12190 |
| 68152C | Left rear door glass lift slot | 68152-12100 |
| 68190 | Rear door glass inner sealing strip assembly | 68173-12190 · 68174-12030 |
| 68630 | Rear door opening limiter assembly | 68630-12051 · 68640-12011 |
