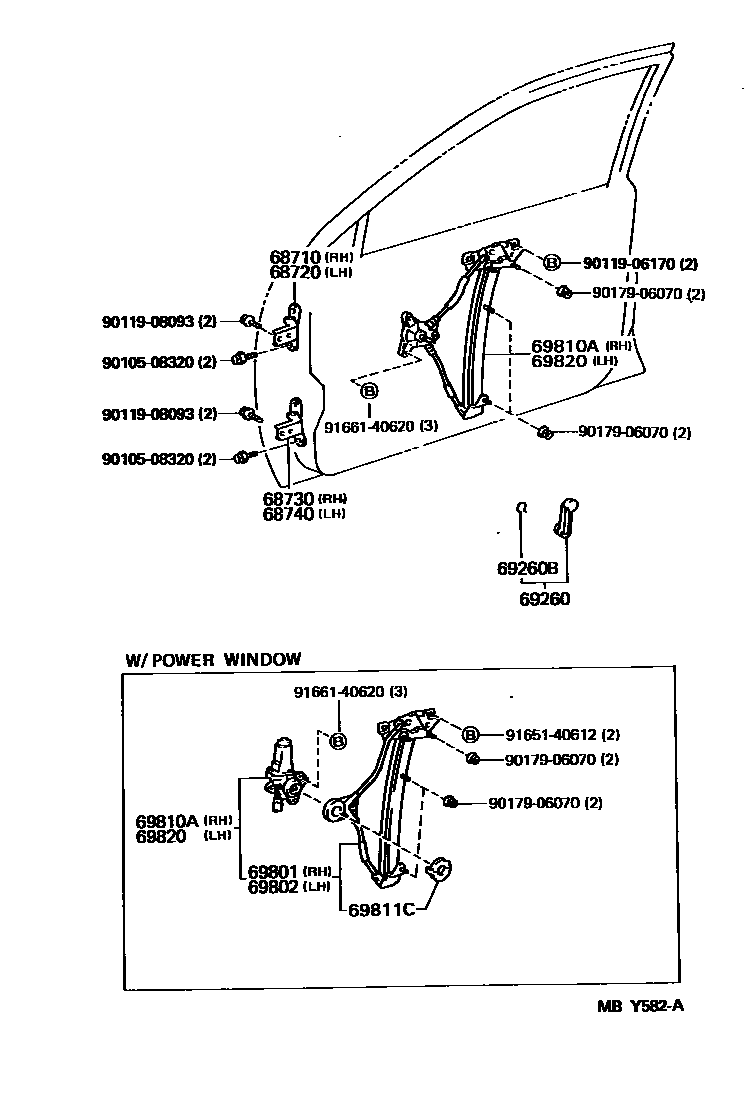

Toyota COROLLA 前门车窗升降器和合页 — Figure 6704
Toyota COROLLA EPC diagram 6704, 前门车窗升降器和合页, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68710 | Right front door upper hinge assembly | 68710-12130 · 68710-12150 |
| 68720 | Left front door upper hinge assembly | 68720-12130 · 68720-12150 |
| 68730 | Right front door lower hinge assembly | 68730-12090 · 68730-12110 |
| 68740 | Left front door lower hinge assembly | 68740-12090 · 68740-12110 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90520-01005 |
| 69801 | Right front door window lifter sub-assembly | 69801-12140 |
| 69802 | Left front door window lifter sub-assembly | 69802-12140 |
| 69810A | Right front door window lift assembly | 69810-02032 · 69810-12381 · 69810-12390 |
| 69811C | Front door power window lift base plate | 69811-32040 |
| 69820 | Left front door window lift assembly | 69820-02032 · 69820-12381 · 69820-12390 |
