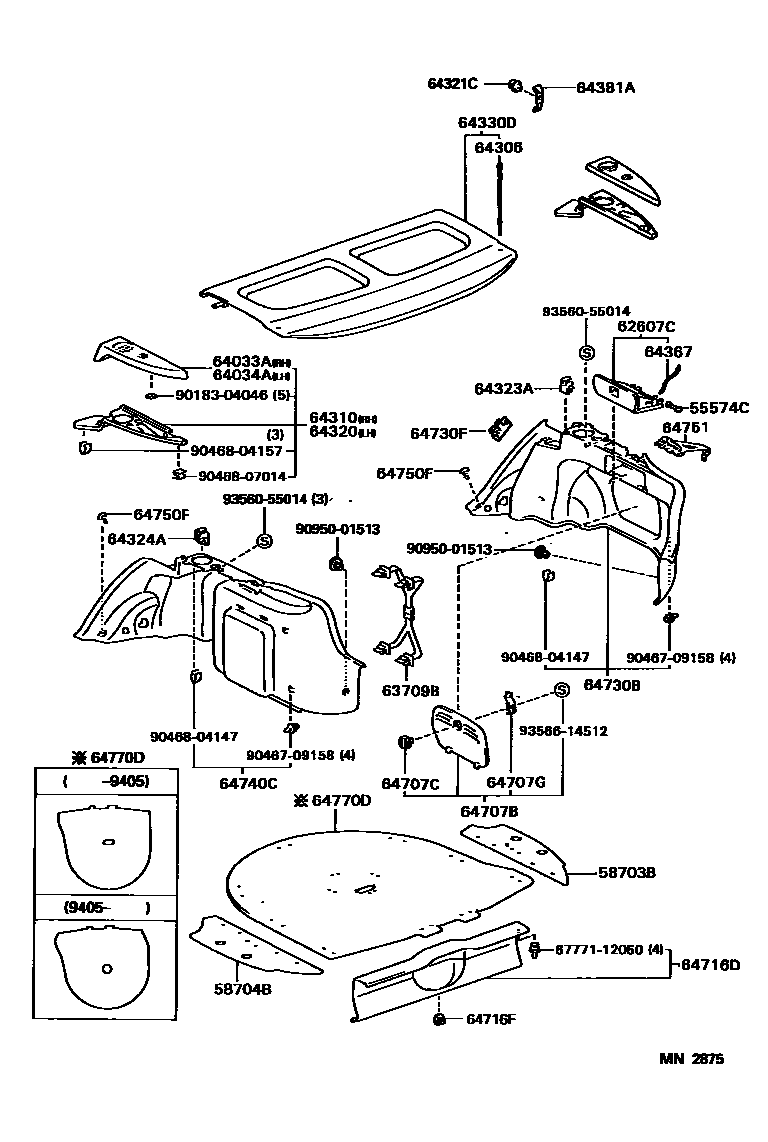

Toyota COROLLA 底板和底板装饰罩 — Figure 6404
Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55574C | Glove box cover hinge shaft | 55574-10010 |
| 58703B | Trunk door right side decorative cover sub-assembly | 58703-12060 |
| 58704B | Luggage door left decorative cover sub-assembly | 58704-12060 |
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64306-12070 |
| 64323A | Glove box decorative panel right clip | 64323-12050 |
| 64324A | Glove box decorative panel left clip | 64324-12020 |
| 64367 | Glove box decorative panel fixing rod | 64367-12060 |
| 64381A | Glove box decorative panel hanger | 64381-12020 |
| 64707G | Jack cover stop | 64981-16021 |
| 64716F | Hole plug (for rear floor trim cover) | 90950-01513 |
| 64730F | Clip (for bottom panel side decorative panel) | 62566-12020 |
| 64751 | Speaker fixing bracket on the right side of the bottom decorative panel | 64757-12010 |
| 64770D | Spare tire cover assembly | 64770-12171 · 64770-12200 |
