Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

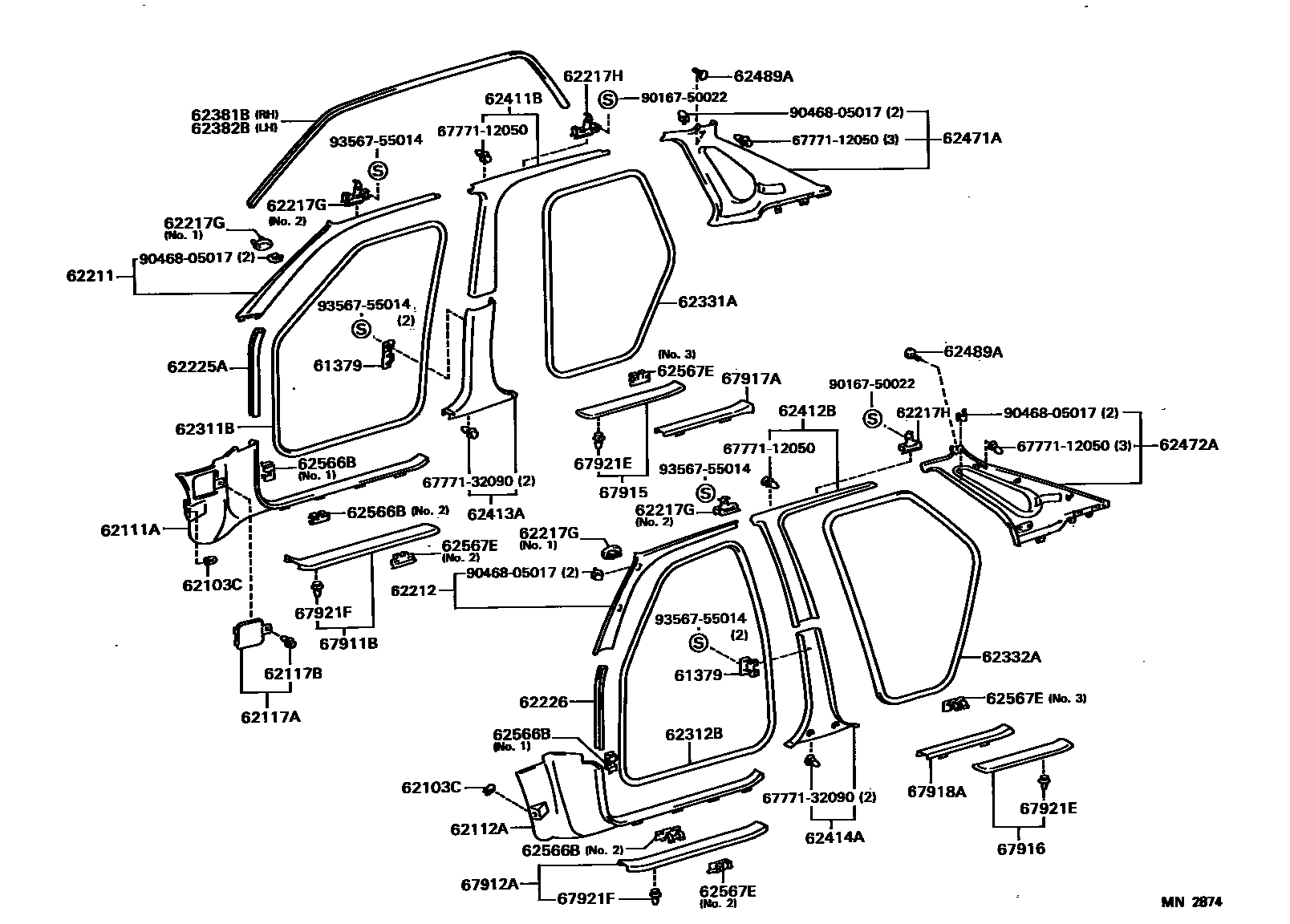

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61379 | Center pillar decorative plate bracket | 61379-12010 |
| 62117B | No. 1 clip (for cowl side trim panel) | 90467-08149 |
| 62217G | Front pillar decorative plate clip | 62217-12010 · 62217-12030 |
| 62217H | Center pillar decorative plate clip | 62217-12010 |
| 62311B | Right front door opening waterproof tape | 62311-12040 |
| 62312B | Left front door opening waterproof tape | 62312-12040 |
| 62331A | Right rear door opening waterproof tape | 62331-12020 |
| 62332A | Left rear door opening waterproof tape | 62332-12020 |
| 62381B | Roof right side rail seal strip | 62381-12221 |
| 62382B | Roof left side rail seal strip | 62382-12231 |
| 62566B | No. 1 door inner sill protection strip clip | 62566-12030 · 62567-12010 |
| 62567E | No. 2 door inner sill guard strip clip | 62566-12030 · 62566-12040 |
| 67921E | Rear door wear plate fixing parts | 67921-32010 |
| 67921F | Front door wear plate fixings | 67921-32010 |
