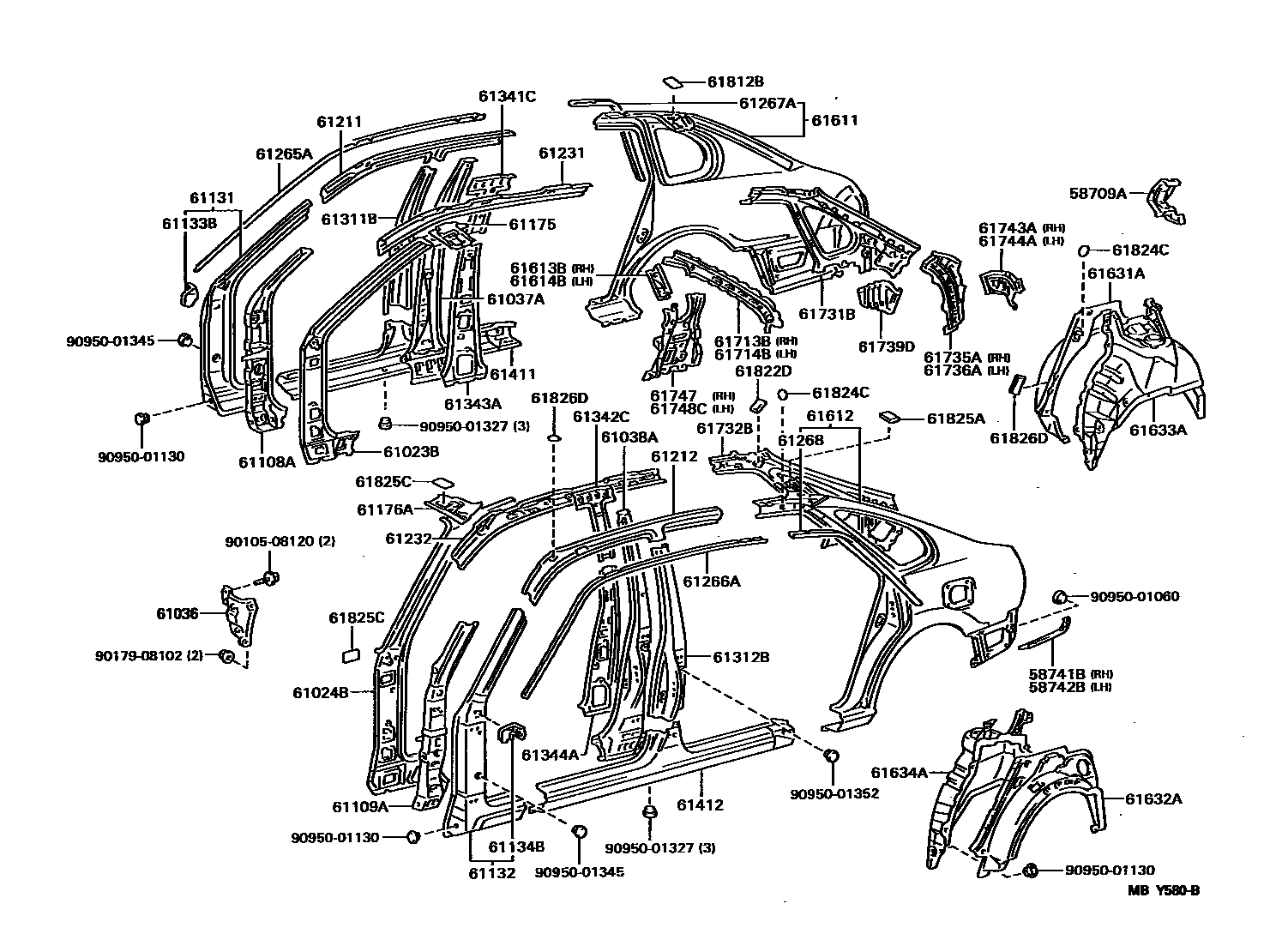

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 1 images and 57 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58709A | Jack bracket sub-assembly | 58709-12060 |
| 58741B | Right side enclosure protection panel | 52462-12050 |
| 58742B | Left side enclosure protection panel | 52463-12040 |
| 61023B | Right body inner front pillar sub-assembly | 61023-12160 |
| 61024B | Left body inner front pillar sub-assembly | 61024-12110 |
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61036-12050 · 61036-12090 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-12060 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-12060 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-12120 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-12110 |
| 61131 | Right body outer front upper pillar | 61131-12370 |
| 61132 | Left body outer front upper pillar | 61132-12380 |
| 61133B | Right body outer front pillar bracket | 61133-12240 |
| 61134B | Left body outer front pillar bracket | 61134-12210 |
| 61175 | No. 2 right side body inner front pillar reinforcement | 61175-12090 |
| 61176A | No. 2 left body inner front pillar reinforcement | 61176-12090 |
| 61211 | Roof right outer longitudinal beam | 61211-12310 |
| 61212 | Roof left outer longitudinal beam | 61212-12310 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-12810 · 61231-12820 |
| 61232 | Roof left inner longitudinal beam | 61232-12690 · 61232-12700 |
| 61265A | Drainage channel in the middle section on the right side of the roof | 61265-12220 |
| 61266A | Drainage channel in the middle section of the left side of the roof | 61266-12220 |
| 61267A | Roof right rear gutter | 61267-12190 |
| 61268 | Roof left rear gutter | 61268-12190 |
| 61311B | Right body outer center pillar | 61311-12200 |
| 61312B | Left body outer center pillar | 61312-12240 |
| 61341C | Right inner middle pillar | 61341-12100 |
| 61342C | Left side inner center pillar | 61342-12100 |
| 61343A | Right body inner center pillar | 61343-12100 |
| 61344A | Left body inner center pillar | 61344-12100 |
| 61411 | Right door outer sill panel | 61411-12540 |
| 61412 | Left door outer sill panel | 61412-12530 |
| 61611 | Right side hoarding | 61601-1E690 |
| 61612 | left side panel | 61602-1E590 |
| 61613B | Right front side panel inner panel | 61613-12030 |
| 61614B | Left front side panel inner panel | 61614-12030 |
| 61631A | Right wheel cover outer panel | 61631-12210 |
| 61632A | Left side wheel cover outer panel | 61632-12210 |
| 61633A | Right wheel housing lining panel | 61607-12630 |
| 61634A | Left side wheel housing lining panel | 61608-12610 |
| 61713B | Roof right outer reinforcement | 61713-12080 |
| 61714B | Roof left outer reinforcement | 61714-12070 |
| 61731B | Roof right inner panel | 61701-12280 · 61701-12290 |
| 61732B | Roof left inner panel | 61702-12280 · 61702-12290 |
| 61735A | Right rear roof inner panel | 61735-12340 |
| 61736A | Left rear roof inner panel | 61736-12330 |
| 61739D | Jack bracket bracket reinforcement | 61739-12120 |
| 61743A | Rear door opening right reinforcement | 61703-12030 |
| 61744A | Rear door opening left reinforcement | 61704-12100 |
| 61747 | Roof right inner panel to wheel housing bracket | 61703-12020 |
| 61748C | Roof left inner panel to wheel arch bracket | 61704-12070 |
| 61812B | Right noise control panel | 61812-12010 |
| 61822D | Left side noise control panel | 61822-12010 |
| 61824C | No. 1 silencer panel gasket | 61824-12040 |
| 61825A | Noise Control Panel No. 2 | 61825-12010 |
| 61825C | No. 2 silencer panel gasket | 61825-12010 |
| 61826D | Noise Control Panel No. 3 | 61827-12030 |
