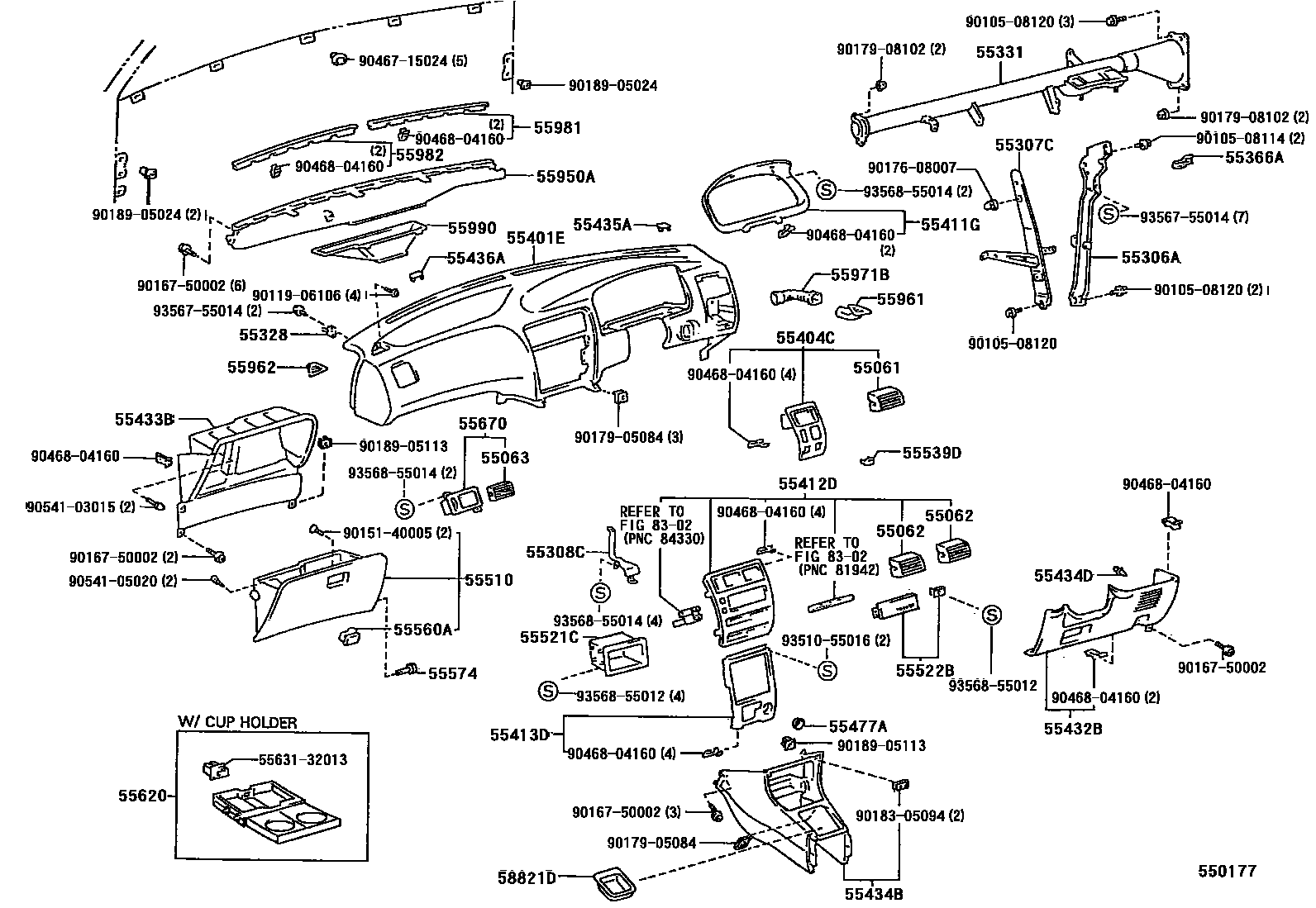

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 1 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55061 | No. 1 air register sub-assembly on the instrument panel | 55061-12150 |
| 55062 | No. 2 air register sub-assembly on the instrument panel | 55062-12060 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-12200 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-12200 |
| 55308C | Center instrument panel bracket sub-assembly | 55308-12180 |
| 55328 | Instrument panel pin 1 | 55328-12060 |
| 55331 | Dashboard reinforcement | 55330-12240 |
| 55366A | Radio No. 1 mounting bracket | 55366-12040 |
| 55404C | Instrument cluster No. 2 decorative panel sub-assembly | 55404-12610 |
| 55411G | Instrument cluster No. 1 decorative panel | 55411-12870 |
| 55412D | Center instrument cluster decorative panel | 55405-12700 |
| 55413D | Center instrument cluster lower decorative panel | 55413-12420 |
| 55477A | Cigarette lighter hole frame | 55477-12100 |
| 55521C | stereo system hole cover | 55521-16040 |
| 55522B | Radio tuner opening cover | 55522-32010 |
| 55539D | Spare switch hole cover | 55539-12110 |
| 55574 | Glove box cover hinge shaft | 55574-10010 |
| 55620 | Dashboard cup holder assembly | 55620-12020 · 55620-12050 |
| 55950A | Defroster nozzle assembly | 55950-12170 |
| 55971B | Side defroster No. 1 nozzle air duct | 55971-12110 |
| 55981 | Defroster No. 1 nozzle decorative strip | 55981-12050 |
| 55982 | Defroster No. 2 nozzle decorative strip | 55982-12050 |
| 55990 | Central defroster nozzle assembly | 55990-12010 |
