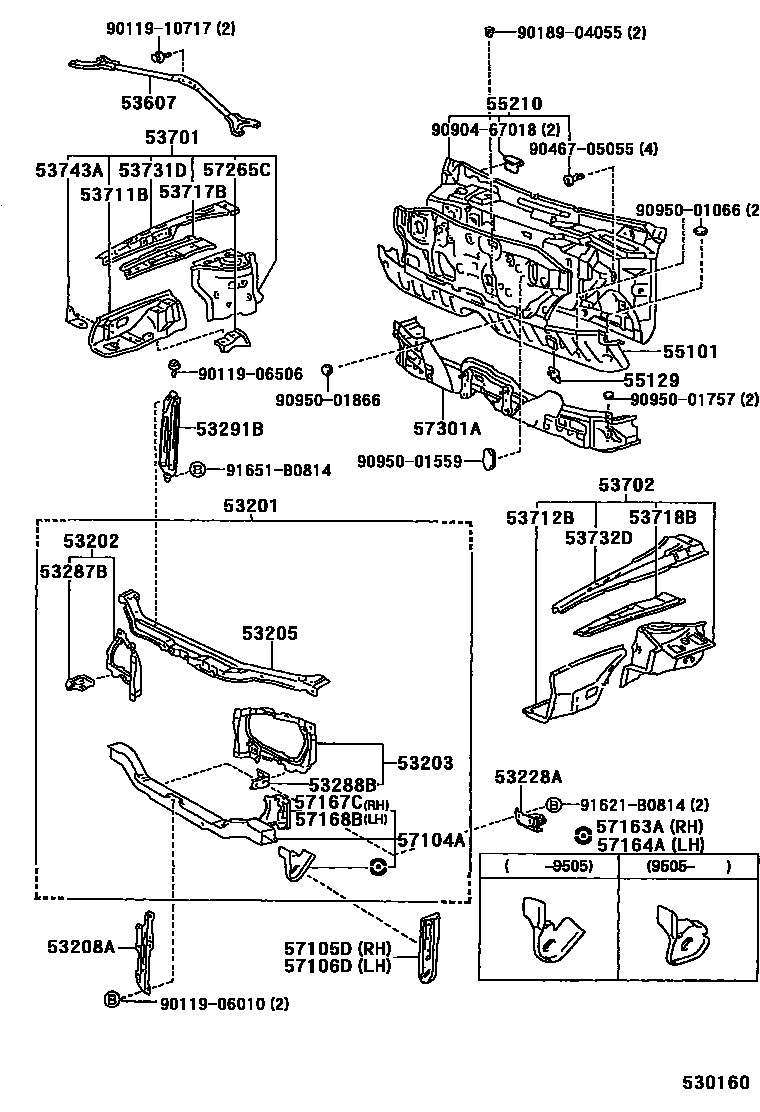

Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304
Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53201 | Radiator bracket sub-assembly | 53201-1A030 · 53201-1A031 |
| 53202 | Radiator right side bracket sub-assembly | 53202-12320 |
| 53203 | Radiator left bracket sub-assembly | 53203-12280 |
| 53205 | Radiator upper bracket sub-assembly | 53205-12100 |
| 53208A | Engine cover lock bracket sub-assembly | 53215-12200 |
| 53228A | Radiator No. 1 lower mounting bracket | 53228-12130 |
| 53287B | Radiator right side bracket extension | 53287-12030 |
| 53288B | Radiator left bracket extension | 53288-12030 |
| 53291B | Radiator cover | 53291-12100 |
| 53607 | Front suspension upper side to right front wall bracket sub-assembly | 53607-12030 · 53607-12040 |
| 53701 | Right front fender fender sub-assembly | 53701-1A040 · 53701-1A041 · 53701-1A050 · 53701-1A051 · 53701-1A052 |
| 53702 | Left front fender fender sub-assembly | 53702-1A040 · 53702-1A041 · 53702-1A042 |
| 53711B | Right front fender front fender | 53711-12220 · 53711-12221 · 53711-12902 |
| 53712B | Left front fender front fender | 53712-12180 · 53712-12181 · 53712-12182 |
| 53717B | Right fender fender corner panel | 53717-12050 · 53717-12051 |
| 53718B | Left fender fender corner panel | 53718-12050 · 53718-12051 |
| 53731D | Right front fender to cowl side upper beam | 53731-12150 |
| 53732D | Left front fender to cowl side upper beam | 53732-12130 |
| 53743A | Right front fender fender front reinforcement | 53743-12040 |
| 55101 | Front apron sub-assembly | 55101-1A451 · 55101-1A481 |
| 55129 | Front panel hole cover | 55129-12030 |
| 55210 | Front wall insulation pad assembly | 55210-12360 |
| 57104A | Front cross member sub-assembly | 57104-12010 · 57104-12020 · 57104-12050 |
| 57105D | Right front longitudinal beam plate sub-assembly | 57105-12050 · 57105-12100 |
| 57106D | Left front longitudinal beam plate sub-assembly | 57106-12050 · 57106-12100 |
| 57163A | No. 1 front cross member right reinforcement | 57163-12110 · 57163-12120 |
| 57164A | No. 1 front cross member left reinforcement | 57164-12060 · 57164-12070 |
| 57167C | Front cross member right corner panel | 57167-12100 |
| 57168B | Front cross member left corner panel | 57168-12100 |
| 57265C | Engine right side mounting bracket | 57265-12050 |
| 57301A | Steering housing support beam sub-assembly | 57301-12120 · 57301-12180 |
