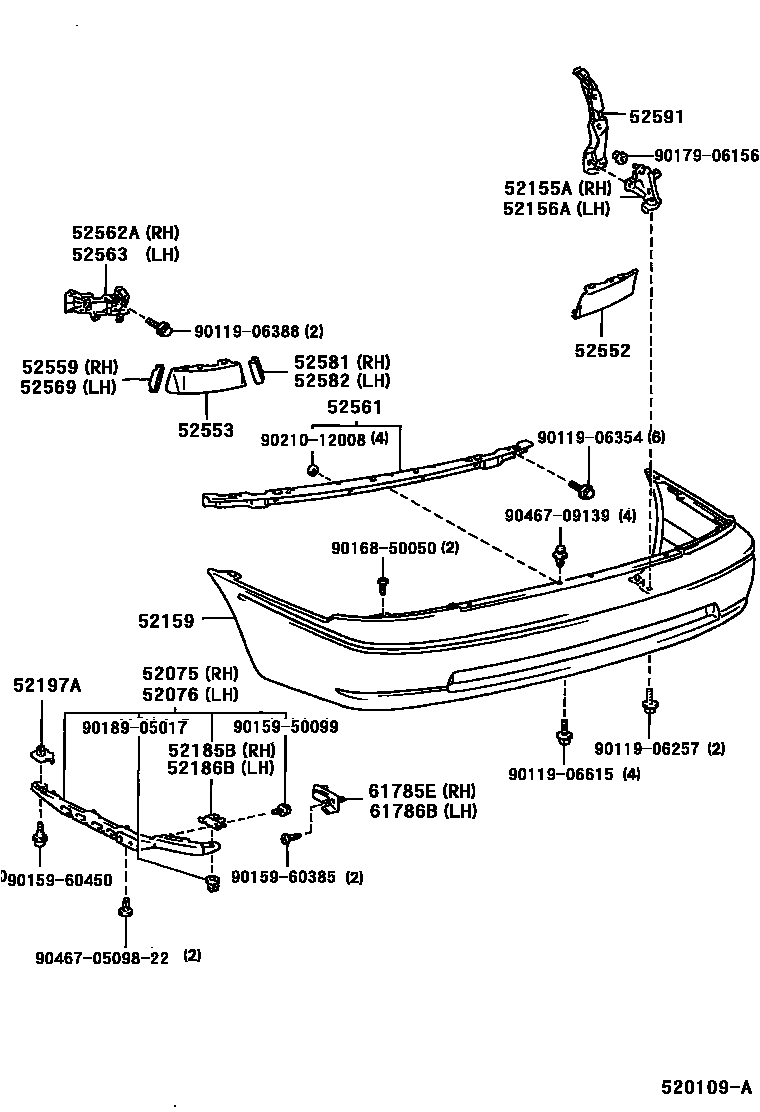

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52075 | Rear bumper right side fixing part sub-assembly | 52075-12060 |
| 52076 | Rear bumper left side fixing part sub-assembly | 52076-12060 |
| 52155A | Rear bumper right side bracket | 52155-12220 |
| 52156A | Rear bumper left bracket | 52156-12210 |
| 52159 | rear bumper cover | 52159-1A610 |
| 52185B | Installation support on the right side of the rear bumper | 52185-12170 |
| 52186B | Rear bumper left side mounting support | 52185-12170 |
| 52197A | Rear bumper right seal support | 52197-12070 |
| 52552 | Arc filler on the right side of the rear bumper | 52552-12060 |
| 52553 | Rear bumper left curved filler | 52553-12060 |
| 52559 | Rear bumper arc filler seal | 52559-12010 |
| 52561 | Rear bumper upper center fixing bracket | 52561-12190 |
| 52562A | Rear bumper arc filler No. 2 fixing piece | 52562-12040 |
| 52563 | Rear bumper arc filler No. 3 fixing piece | 52563-12020 |
| 52569 | Rear bumper curved filler liner | 52569-12030 |
| 52581 | Rear bumper right side protector | 52581-12080 |
| 52582 | Rear bumper left protector | 52581-12080 |
| 52591 | Rear bumper right seal | 52591-12080 |
| 61785E | Rear bumper right side bracket | 61786-12030 |
| 61786B | Rear bumper left bracket | 61787-12020 |
