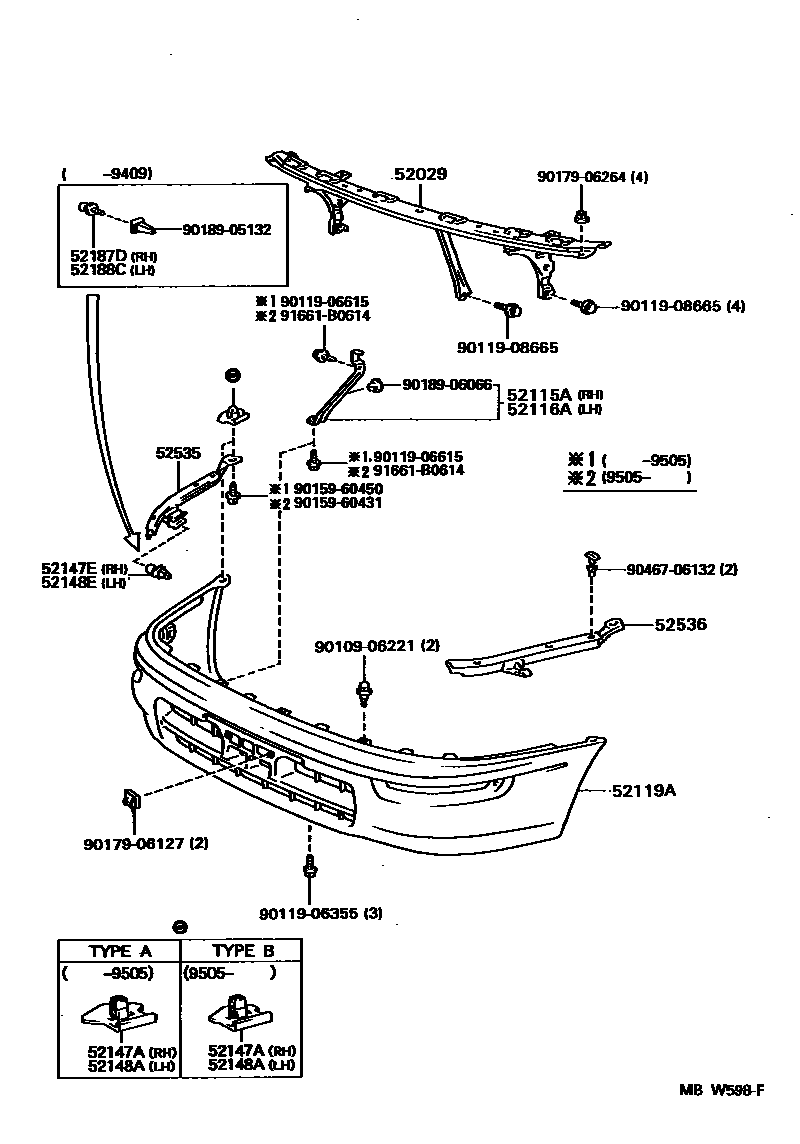

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52029 | Front bumper upper reinforcement sub-assembly | 52029-12020 |
| 52115A | Front bumper right side bracket | 52115-12350 |
| 52116A | Front bumper left bracket | 52116-12280 |
| 52119A | front bumper cover | 52119-1E190 |
| 52147A | Front bumper stay right side bracket | 52147-12170 · 52147-16080 |
| 52147E | Front bumper right side mounting support | 52148-12130 |
| 52148A | Front bumper stay left bracket | 52147-12170 · 52147-16080 |
| 52148E | Front bumper left side mounting support | 52148-12130 |
| 52187D | Front bumper right positioning guide rod | 52187-12140 |
| 52188C | Front bumper left positioning guide rod | 52187-12140 |
| 52535 | Front bumper right side fixing bracket | 52503-12010 |
| 52536 | Front bumper left fixed bracket | 52504-12010 |
