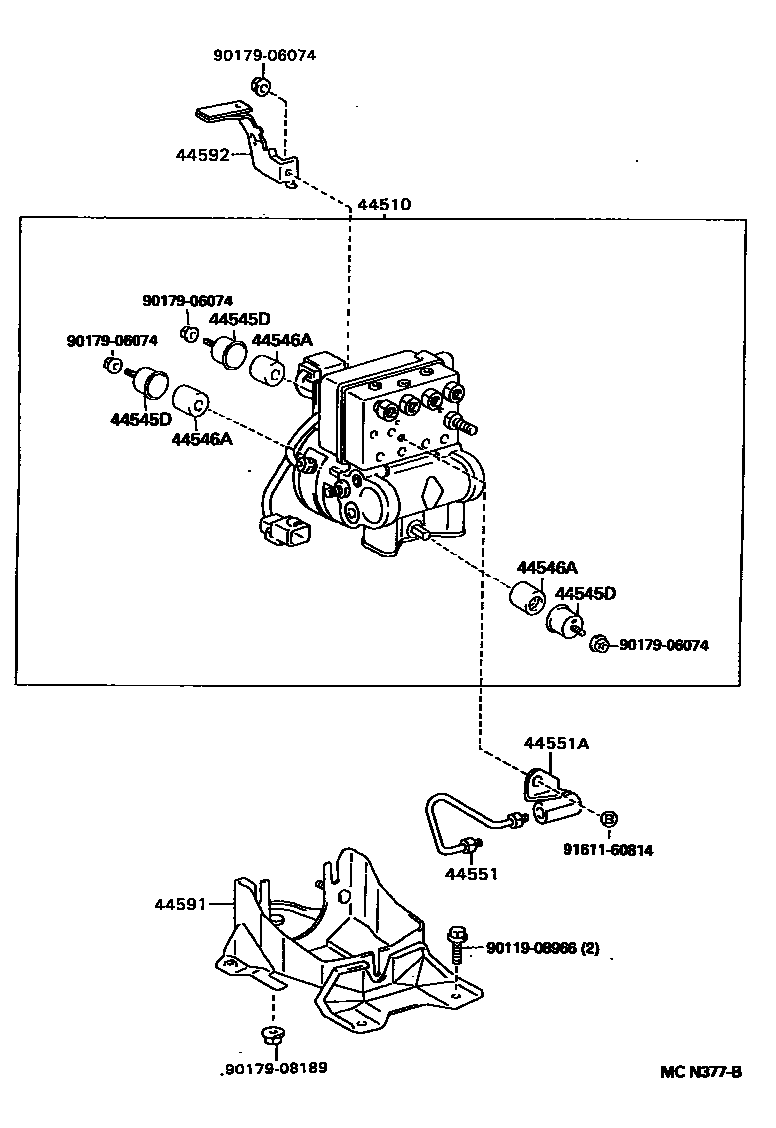

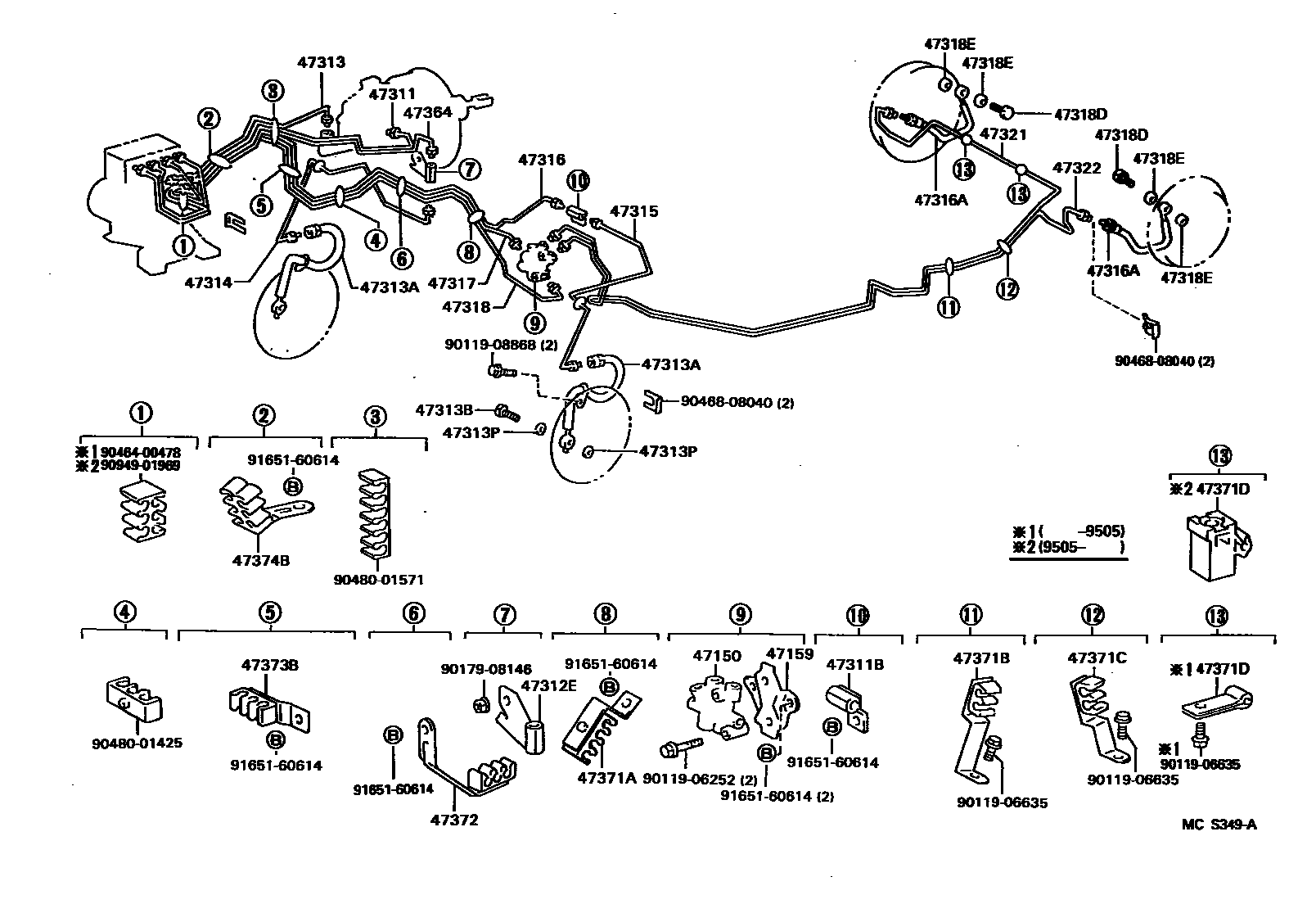

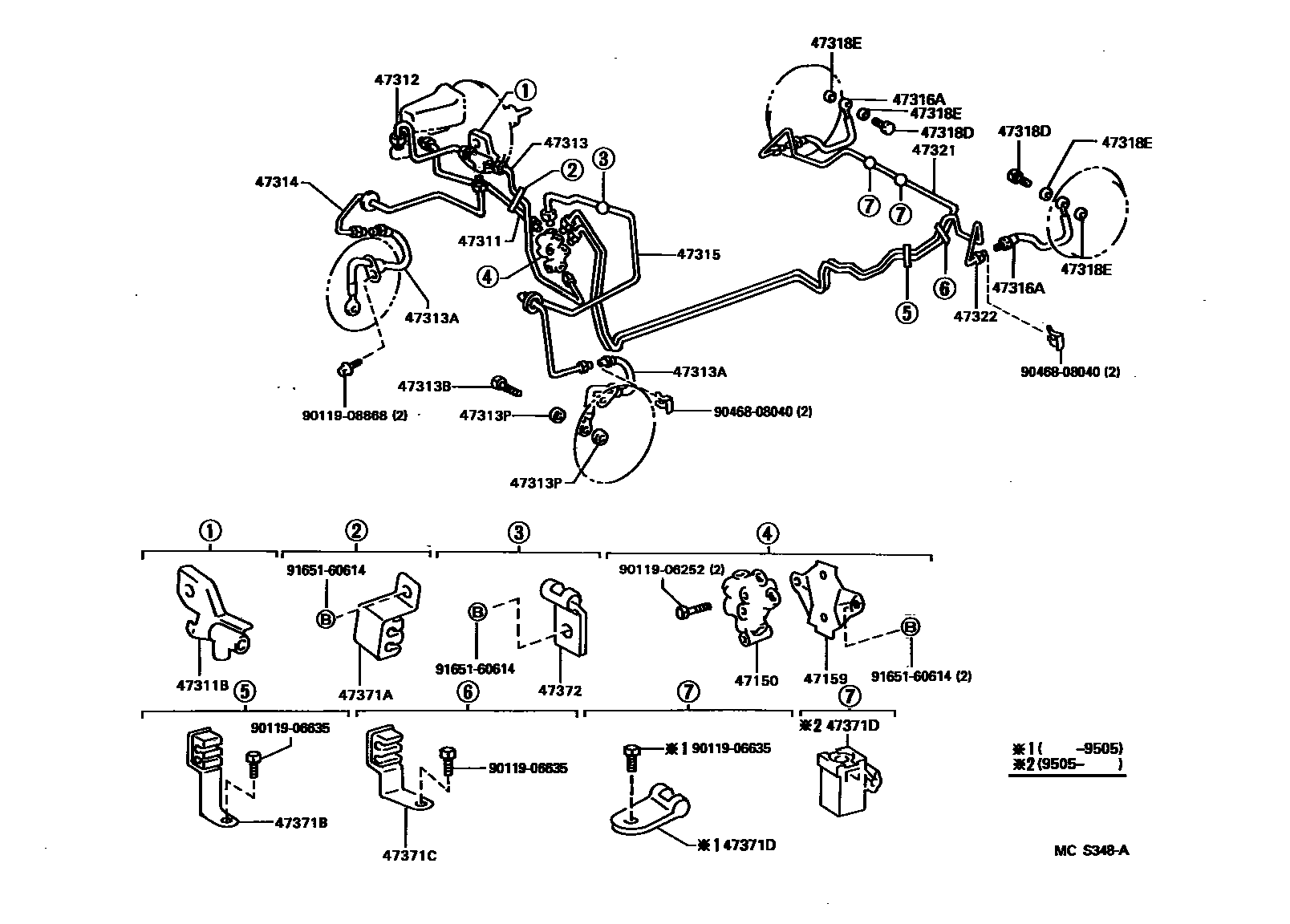

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44510-12070 |
| 44545D | Brake actuator bolt mount | 44545-12090 |
| 44546A | Brake actuator bolt cushion | 44546-12090 |
| 44551 | No. 1 brake actuator pipe | 44551-12040 |
| 44551A | Pipe joint No. 1 (for brake actuator) | 90412-10197 |
| 44591 | No. 1 brake actuator bracket | 44591-12030 · 44591-12031 |
| 44592 | No. 2 brake actuator bracket | 44592-12020 |
| 47150 | Proportional valve assembly | 47150-12180 · 47150-33010 |
| 47159 | Proportional valve bracket | 47159-12070 |
| 47311 | No. 1 front brake pipe | 47311-12500 · 47311-12540 · 47311-12560 · 47311-12570 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 47391-12010 · 90412-10116 |
| 47312 | No. 2 front brake pipe | 47312-12330 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90904-12007 |
| 47313 | No. 3 front brake pipe | 47313-12290 · 47313-12340 · 47313-12370 · 47313-12380 |
| 47313A | No. 1 front flexible hose | 90947-02659 · 90947-02660 · 90947-02798 · 90947-02799 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 |
| 47313P | Gasket (for front flex hose) | 90430-10074 |
| 47314 | No. 4 front brake pipe | 47314-12290 · 47314-12400 |
| 47315 | No. 5 front brake pipe | 47315-12450 · 47315-12460 |
| 47316 | No. 6 front brake pipe | 47316-12230 · 47316-12250 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-02740 |
| 47317 | No. 7 front brake pipe | 47317-12080 · 47317-12100 |
| 47318 | No. 8 front brake pipe | 47318-12220 · 47318-12270 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10015 |
| 47318E | Gasket (for rear flex hose) | 90430-10074 |
| 47321 | No. 1 rear brake pipe | 47321-12100 · 47321-12130 |
| 47322 | No. 2 rear brake pipe | 47322-12260 · 47322-12280 |
| 47364 | No. 13 front brake pipe | 47364-12040 · 47364-12120 |
| 47371A | No. 1 brake pipe clamp | 47371-12090 · 47371-12100 |
| 47371B | No. 6 brake pipe clamp | 47375-12010 · 47375-12040 |
| 47371C | No. 7 brake pipe clamp | 47375-12020 · 47375-12060 |
| 47371D | No. 8 brake pipe clamp | 47371-12150 · 90461-08687 |
| 47372 | No. 2 brake pipe clamp | 47372-12050 · 47372-12060 · 90461-06119 |
| 47373B | No. 3 brake pipe clamp | 47373-12010 |
| 47374B | No. 4 brake pipe clamp | 47374-12020 · 47374-12030 |
