Toyota COROLLA 前盘式制动器卡钳和防尘罩 — Figure 4705

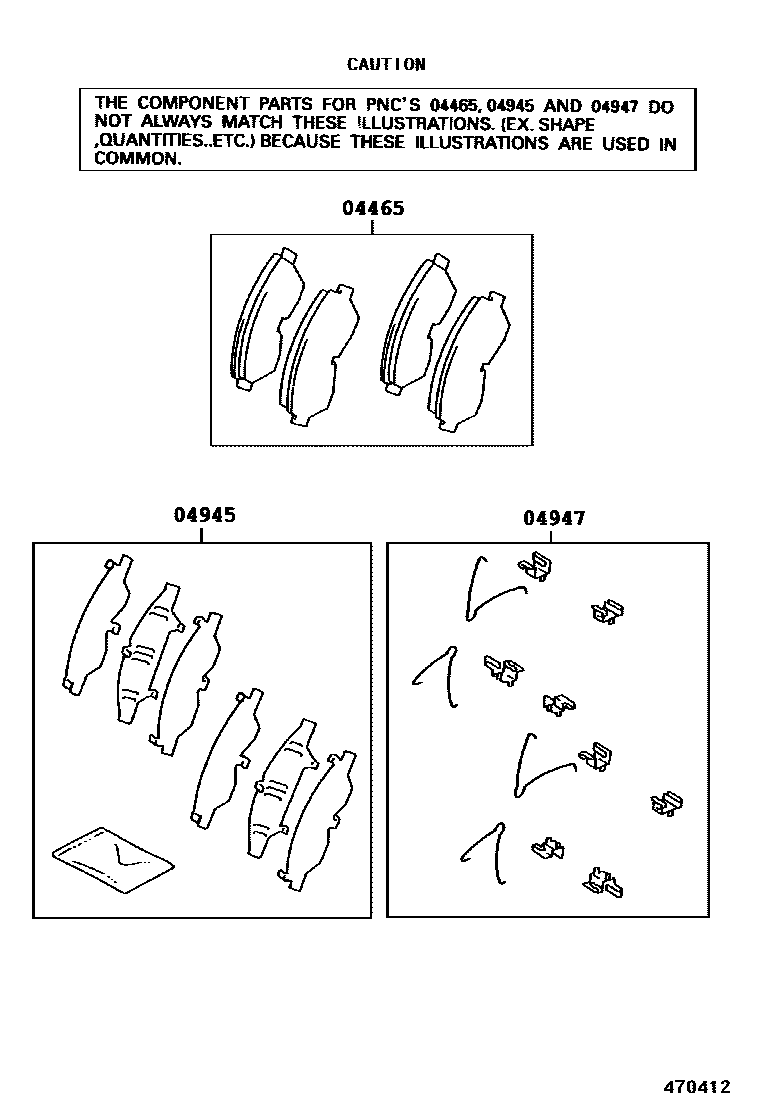

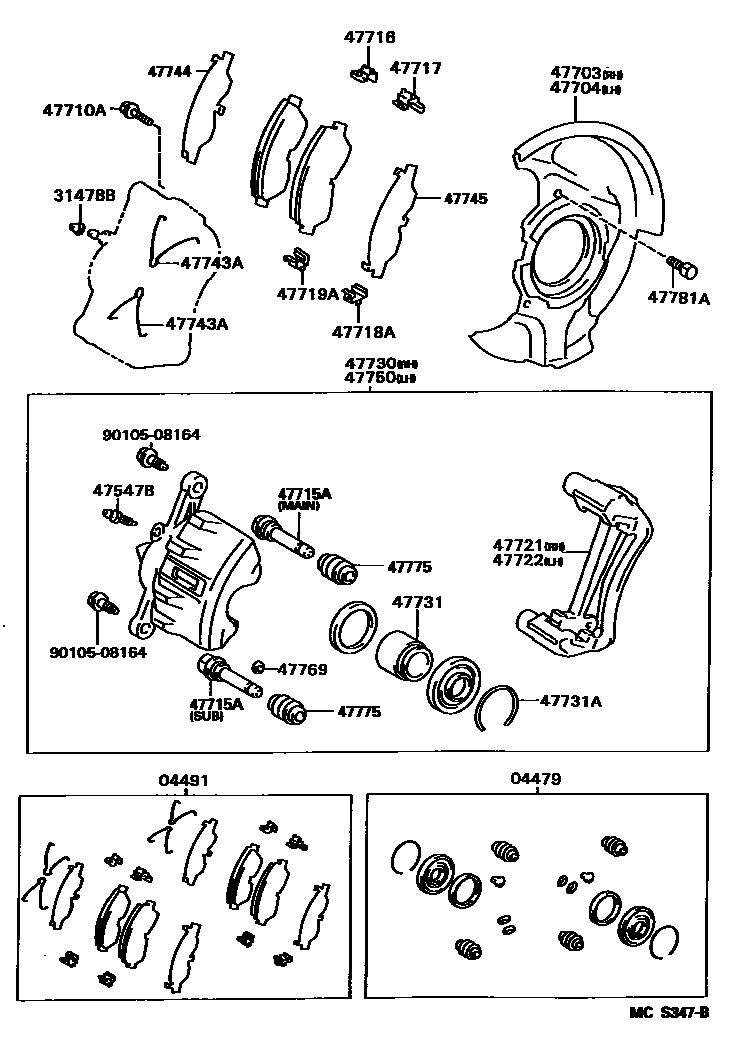

Toyota COROLLA EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 2 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-33040 |
| 04479 | Front disc brake cylinder assembly | 04479-12180 |
| 04491 | Front disc brake pad assembly | 04491-12650 · 04491-12651 |
| 04945 | Front silencer gasket assembly | 04945-20090 |
| 04947 | Front disc brake mounting kit | 04947-33090 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-20010 |
| 47703 | Right front disc brake dust cover sub-assembly | 47781-12170 |
| 47704 | Left front disc brake dust cover sub-assembly | 47782-12170 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90119-12040 |
| 47715A | Front disc brake cylinder sliding pin | 47715-50010 · 47715-50030 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-33010 |
| 47717 | Pad support plate No. 2 (for front disc brake) | 47716-33020 |
| 47718A | No. 3 pad support plate (for front disc brake) | 47717-33010 |
| 47719A | No. 4 pad support plate (for front disc brake) | 47717-33020 |
| 47721 | Right front disc brake cylinder retainer | 47721-12210 |
| 47722 | Left front disc brake cylinder retainer | 47722-12030 |
| 47730 | Right front disc brake cylinder assembly | 47730-12450 |
| 47731 | Front disc brake piston | 47731-12180 |
| 47731A | retaining ring (for front disc brake piston) | 90522-64003 |
| 47743A | Silencer spring (for front disc brake) | 47743-12090 |
| 47744 | No. 1 silencer gasket (for front disc brake) | 47744-20120 |
| 47745 | No. 2 silencer gasket (for front disc brake) | 47744-20120 |
| 47750 | Left disc brake cylinder assembly | 47750-12450 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-50010 |
| 47775 | Bushing boot (for front disc brake) | 47775-20080 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90109-06134 |
