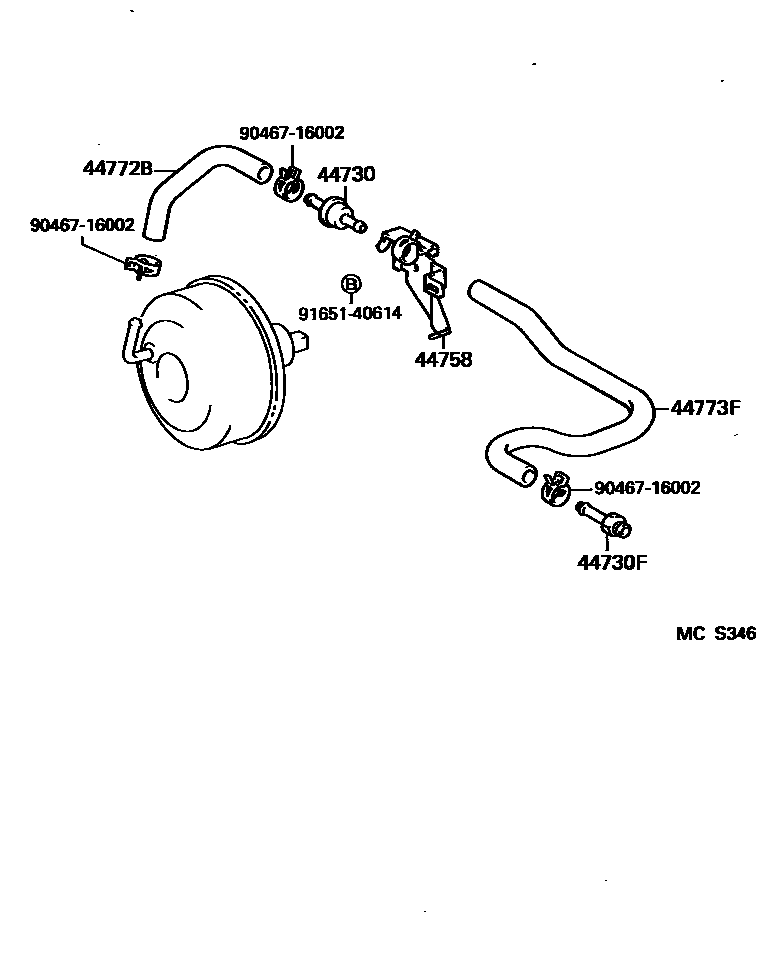

Toyota COROLLA 制动助力器和真空管 — Figure 4703
Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-1A880 · 44610-1E010 · 44610-1E260 · 44610-1E280 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-10010 · 44730-12040 |
| 44730F | Vacuum hose connector (for manifold side) | 90404-51319 |
| 44731C | brake booster bracket | 44731-12050 |
| 44758 | Vacuum check valve bracket | 44758-12290 · 44758-12300 |
| 44772B | Hoses (check valve to brake booster) | 44772-12420 |
| 44773F | Hoses (connector to check valve) | 44773-12590 · 44773-12600 |
| 44785 | brake booster pad | 44785-20020 |
