Toyota COROLLA Steering Column & Shaft — Figure 4501

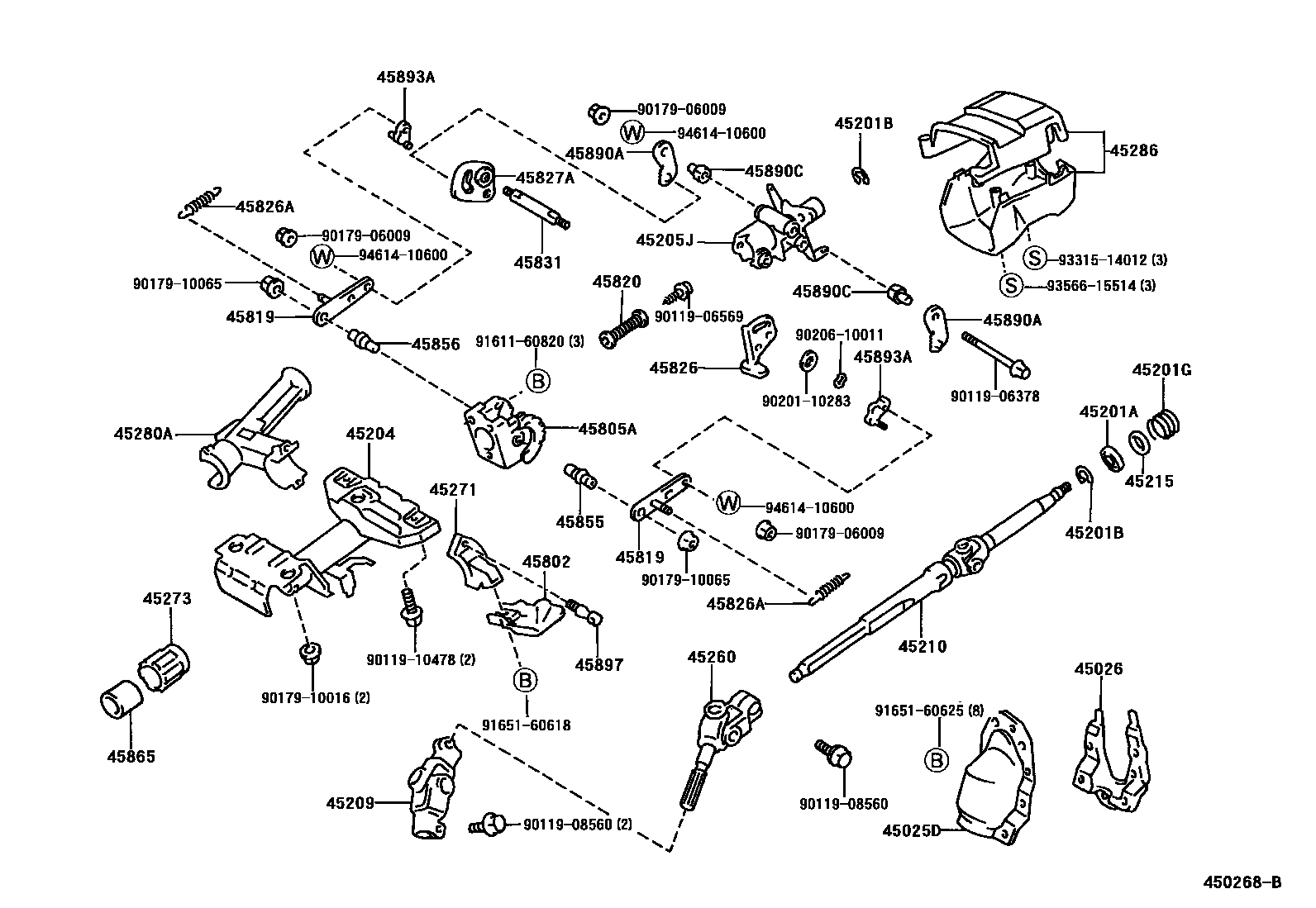

Toyota COROLLA EPC diagram 4501, Steering Column & Shaft, with 1 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-12180 |
| 45026 | No. 2 steering column hole cover sub-assembly | 45026-12020 |
| 45201A | Bearings (for steering spindle) | 90363-18005 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 |
| 45201G | Compression spring (for steering spindle) | 90501-40017 |
| 45204 | Steering column down tube assembly | 45204-12092 · 45204-12093 |
| 45205J | Steering column upper tube sub-assembly | 45205-12330 |
| 45209 | Steering slip fork sub-assembly | 45209-12080 |
| 45210 | Steering spindle assembly | 45210-12400 |
| 45215 | Spindle bearing thrust collar | 45215-12010 |
| 45260 | No. 2 steering intermediate shaft assembly | 45260-12260 |
| 45271 | Clamp on steering column | 45271-12080 |
| 45273 | Steering spindle bushing | 45273-20040 · 45273-20050 |
| 45280A | Steering column upper bracket assembly | 45280-12250 |
| 45802 | No. 1 steering column guard sub-assembly | 45874-12060 · 45874-12070 |
| 45805A | Tilt-adjustable steering bracket sub-assembly | 45805-12010 |
| 45819 | Tilt adjustment lever retaining ring | 45819-12020 |
| 45820 | Tilt-adjustable steering bracket spring assembly | 45820-12020 |
| 45826 | Steering tilt adjustment lever | 45826-12021 |
| 45826A | Tension spring (for steering tilt adjustment lever) | 90507-12029 |
| 45827A | Steering tilt adjustment lever | 45827-12020 |
| 45831 | No. 1 tilt adjustment lever locking bolt | 45831-12010 |
| 45855 | No. 1 tilt-adjustable steering column bolt | 45855-12030 · 45855-12040 |
| 45856 | No. 2 tilt-adjustable steering column bolt | 45856-12030 · 45856-12040 |
| 45865 | Steering spindle collar | 45865-12060 |
| 45890A | Tilt-adjustable steering pawl assembly | 45890-12021 · 45890-12031 |
| 45890C | Collar (for tilt-adjustable steering pawl) | 90389-07004 · 90389-07005 · 90389-07006 · 90389-07007 · 90389-07008 · 90389-07009 · 90389-07010 · 90389-07011 |
| 45893A | Tilt-adjustable steering pawl stop | 45893-12021 · 45893-12071 · 45893-12120 · 45893-12130 · 45893-12140 · 45893-12150 · 45893-12160 · 45893-12170 · 45893-12180 · 45893-12190 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
