Toyota COROLLA Front Drive Shaft — Figure 4302

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 2 images and 27 PNC and OE references.

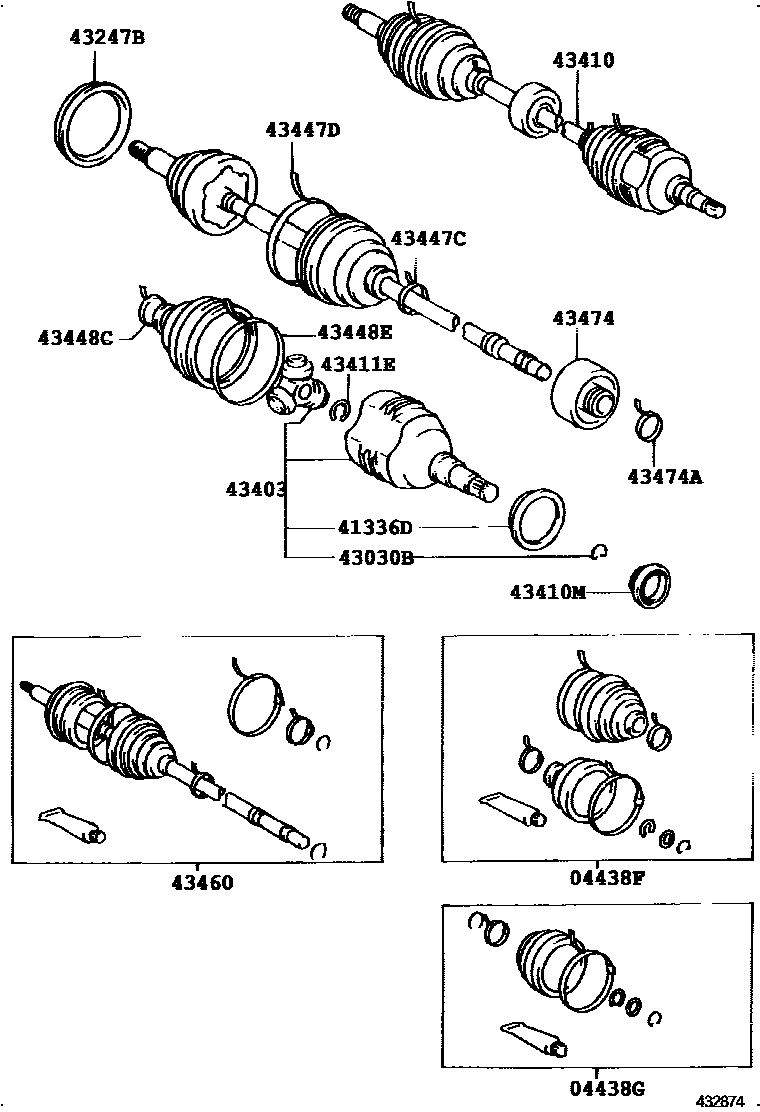

Toyota COROLLA Front Drive Shaft EPC diagram — 432874
Front Drive Shaft — 432874 (199402 – 999999)

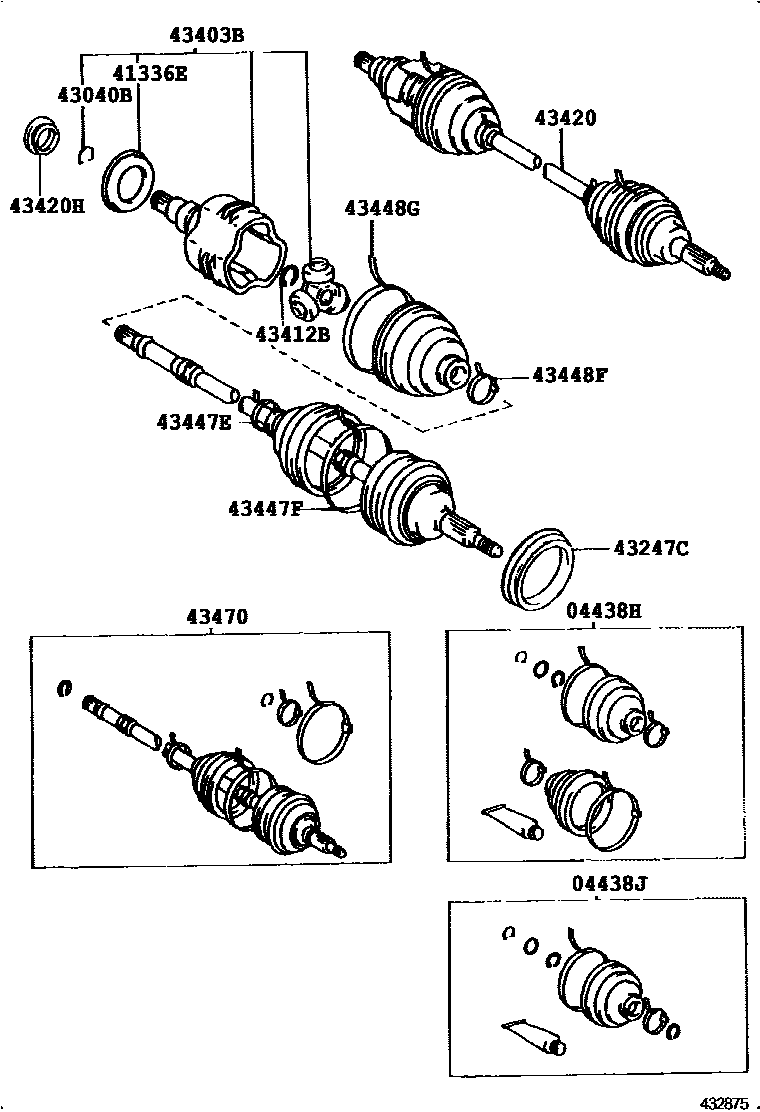

Toyota COROLLA Front Drive Shaft EPC diagram — 432875
Front Drive Shaft — 432875 (199402 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438FRight front driveshaft inboard and outboard dust boot assembly04438-20110
04438GRight front drive shaft inner universal joint dust boot assembly04438-12162 · 04438-12410
04438HLeft front driveshaft inboard and outboard dust boot assembly04438-12300 · 04438-32172
04438JLeft front drive shaft inner universal joint dust boot assembly04438-32161 · 04438-32230
41336DRight front driveshaft dust cover41336-12010
41336ELeft front driveshaft dust cover41336-12010
43030BHole snap ring (for right front drive shaft inboard universal joint)90521-26004
43040BHole snap ring (for left front drive shaft inboard universal joint)90521-26004
43247BNo. 2 right front wheel bearing dust cover43247-12010 · 43247-33010
43247CNo. 2 left front wheel bearing dust cover43247-12010 · 43247-33010
43403Right front axle inner universal joint assembly43403-12040
43403BLeft front axle inner universal joint assembly43403-12040
43410Right front driveshaft assembly43410-20420 · 43410-20460
43410MFront drive shaft right oil seal90311-34012 · 90311-34016
43411EInner shaft snap ring (for right front axle inner drive shaft)90520-22005
43412BInner shaft snap ring (for left front axle inner drive shaft)90520-22005
43420Left front drive shaft assembly43420-12310 · 43420-12330
43420HFront drive shaft left oil seal90311-34013 · 90311-34017
43447DNo. 2 clip (for the universal joint dust cover on the outside of the right front axle)42345-16040
43447EClamp (for left front axle outer universal joint dust cover)42345-16030
43447FNo. 2 clip (for left front axle outer universal joint dust cover)42345-16040
43448ENo. 2 clip (for the universal joint dust cover inside the right front axle)42345-16040
43448GClamp No. 2 (for the universal joint dust cover inside the left front axle)42345-16040
43460Right front outer drive universal joint shaft assembly43460-29117 · 43460-29198
43470Left front outer drive universal joint shaft assembly43470-19715 · 43470-29345
43474drive shaft damper43474-20050
43474AClamp (for securing driveshaft damper)42345-16030
