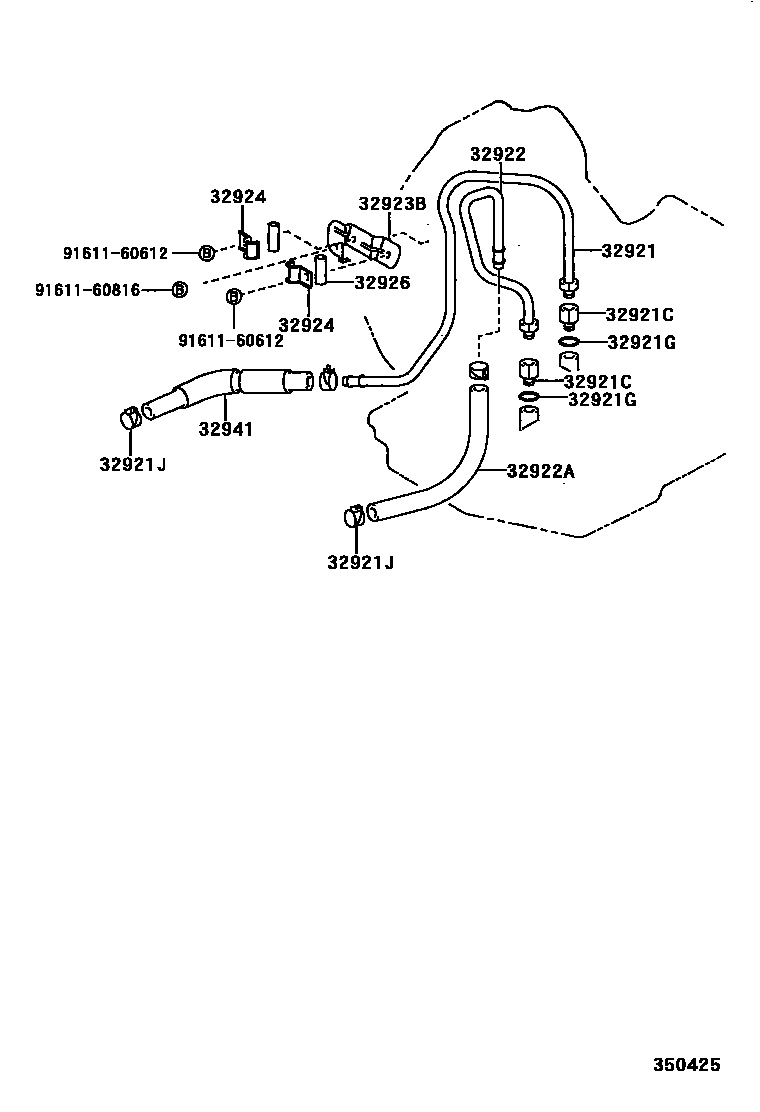

Toyota COROLLA 变速器油冷却器和配管(ATM) — Figure 3514
Toyota COROLLA EPC diagram 3514, 变速器油冷却器和配管(ATM), with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-12210 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-14007 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32921J | Clamp (for transmission oil cooler hose) | 90467-13039 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-12320 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 90445-15042 |
| 32923B | No. 1 automatic transmission oil cooler pipe clamp | 32923-12200 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 90462-10082 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-10010 · 32926-22010 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 32941-12171 |
