Toyota COROLLA Shift Lever & Retainer — Figure 3312

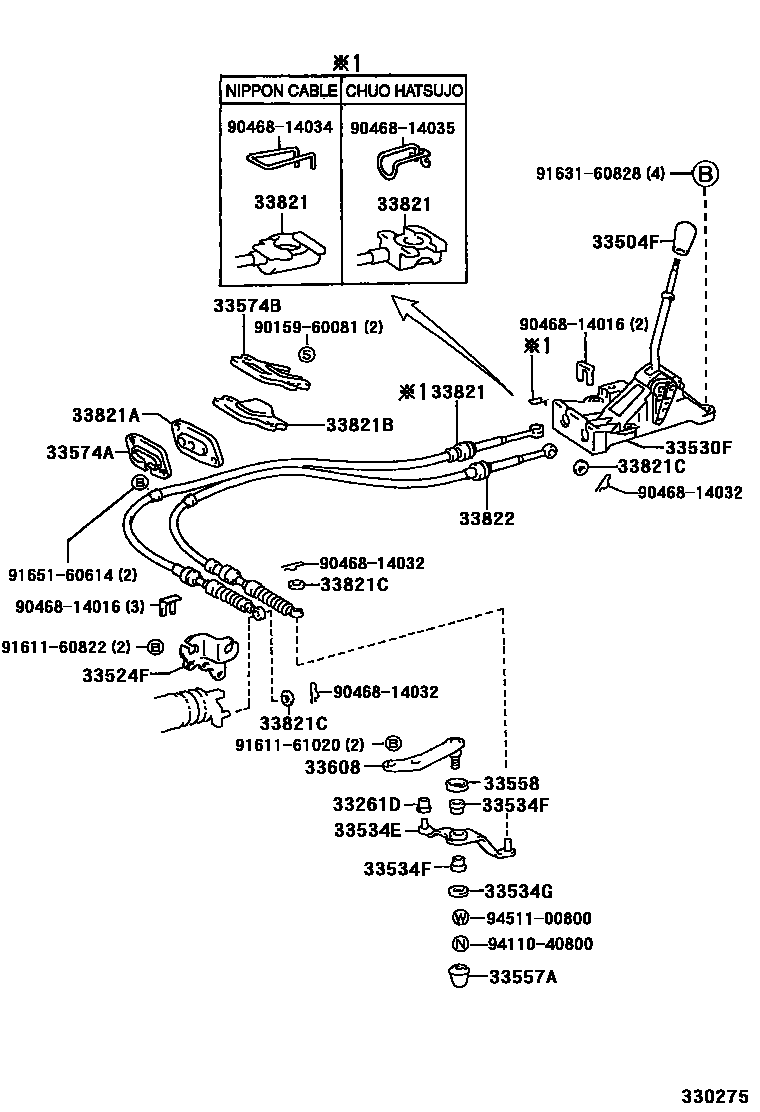

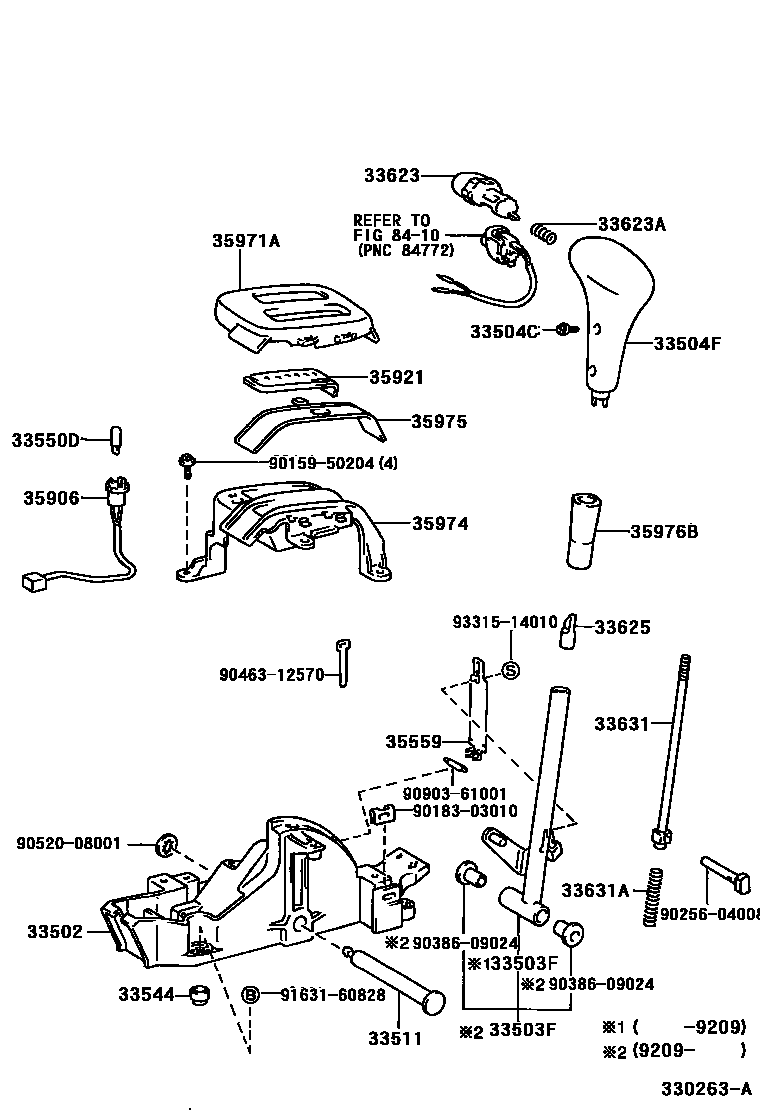

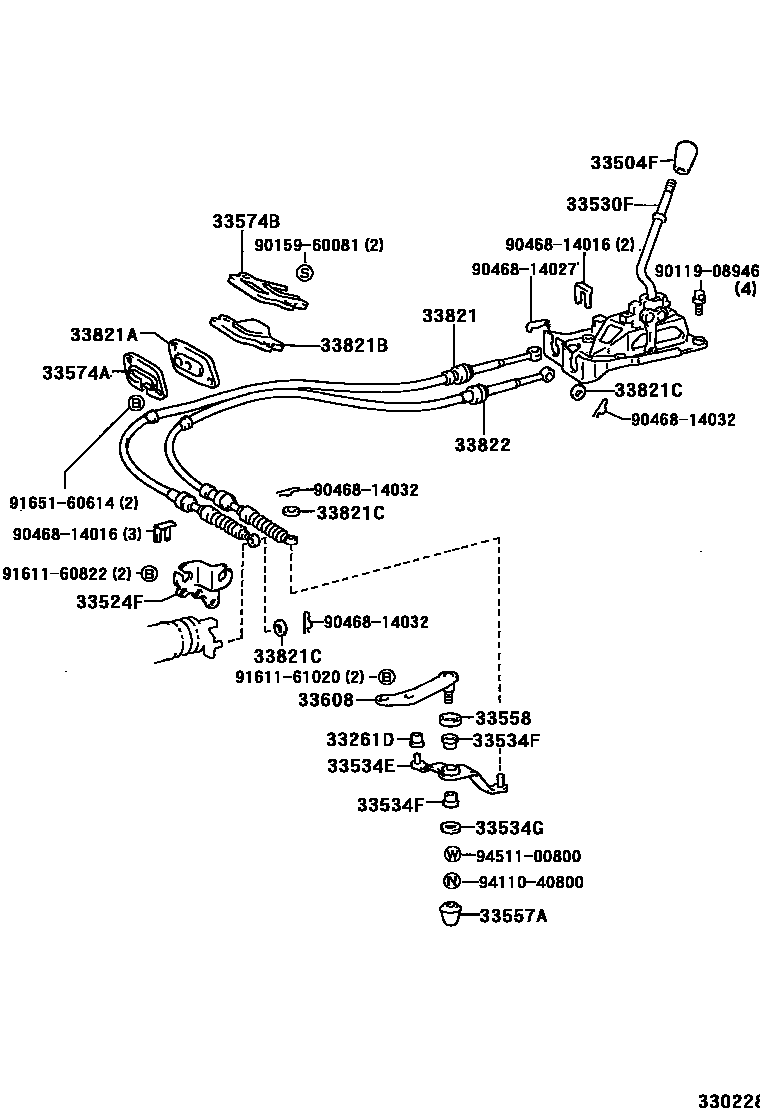

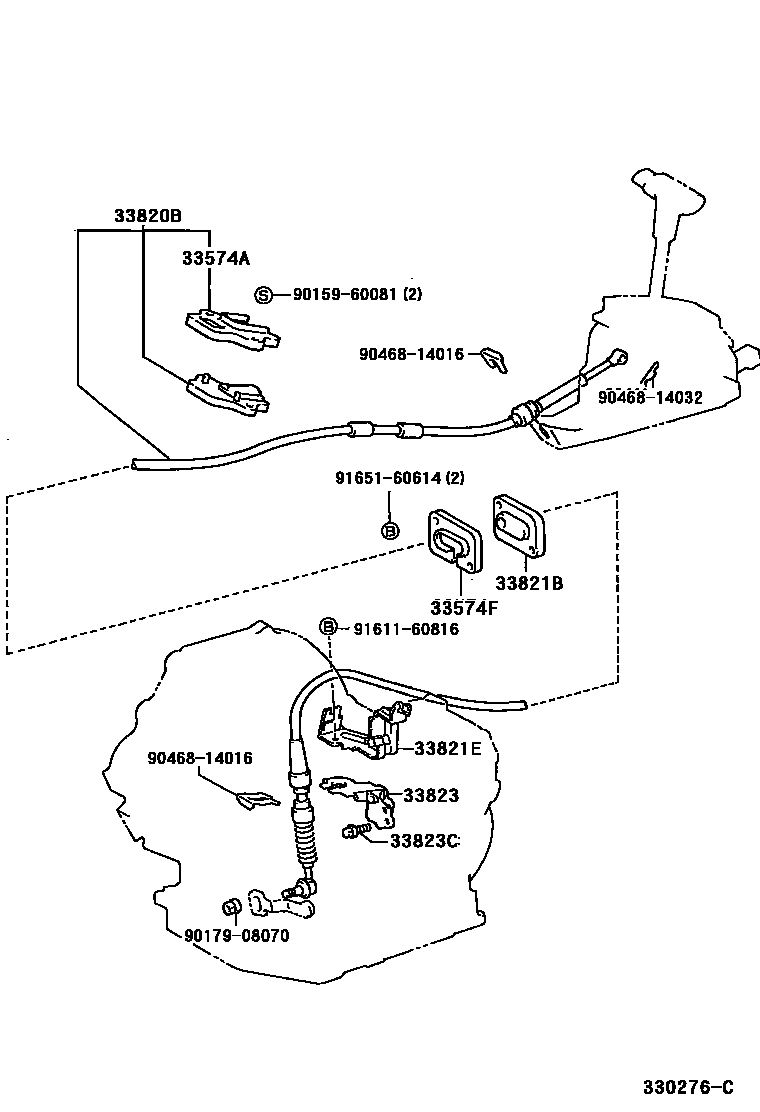

Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 4 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33261D | Bushing (for shift lever) | 33557-33010 · 90389-10009 |
| 33502 | Shift lever base plate sub-assembly | 33521-12221 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33503-12481 |
| 33504C | Screw (for securing shift lever knob) | 90159-40244 |
| 33511 | Control shaft (for floor shifting) | 33511-12100 |
| 33524F | Lever housing bracket (for floor shift) | 33524-12011 |
| 33530F | Shift lever assembly (for floor shift) | 33530-12570 · 33530-12630 |
| 33534E | No. 2 gear selection right-angle lever | 33534-16050 · 33534-16051 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33544 | Shift lever insert No. 1 | 33544-33010 |
| 33550D | position indicator light bulb | 99132-12034 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33574A | No. 1 shift cable retaining ring retaining ring | 33574-12040 · 33574-12080 |
| 33574B | No. 2 shift cable seal | 33574-12060 |
| 33574F | Dust seal retainer (for floor shift) | 33574-12030 · 33574-12080 |
| 33608 | Gear selection right-angle lever bracket sub-assembly | 33608-16020 · 33608-16021 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07037 |
| 33625 | Shift lever handle sleeve | 33625-12020 |
| 33631 | Locking lever | 33631-12120 |
| 33631A | Compression spring (for locking lever) | 90501-07074 |
| 33820B | Transmission control cable assembly | 33820-12580 |
| 33821 | Transmission shift control cable (for floor-mounted shifting) | 33821-12460 · 33821-12720 · 33821-12730 |
| 33821A | No. 1 retaining ring (for transmission control cable) | 90480-01400 |
| 33821B | No. 2 retaining ring (for transmission control cable) | 90480-01391 · 90480-01398 · 90480-01678 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08077 · 90201-10042 |
| 33821E | Clamp No. 1 (for transmission control cable) | 90949-01875 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33822-12190 · 33822-12290 |
| 33823 | No. 1 transmission control cable bracket | 33823-12110 |
| 33823C | Bolt (for transmission control cable bracket) | 91611-61022 |
| 35559 | Manual locking spring | 35559-33010 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-12120 |
| 35921 | control position indicator board | 35921-12330 |
| 35974 | Position indicator light lower shell | 35974-12130 |
